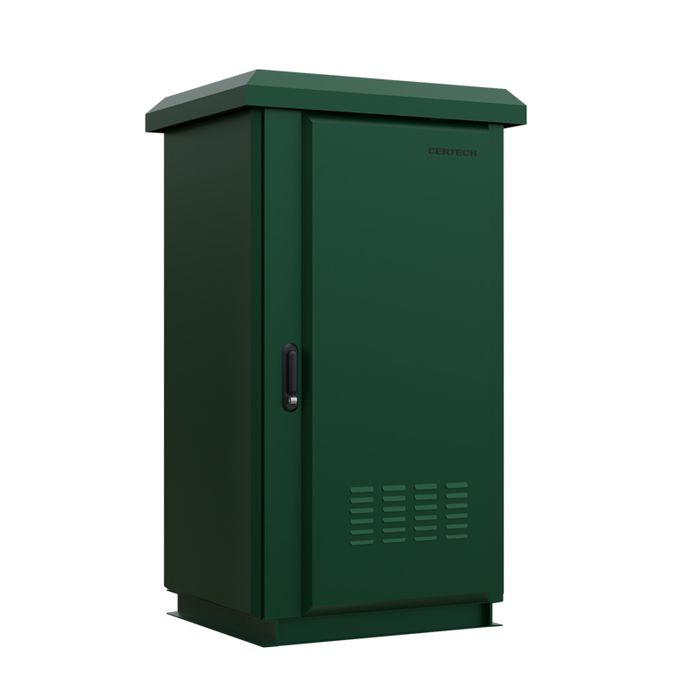

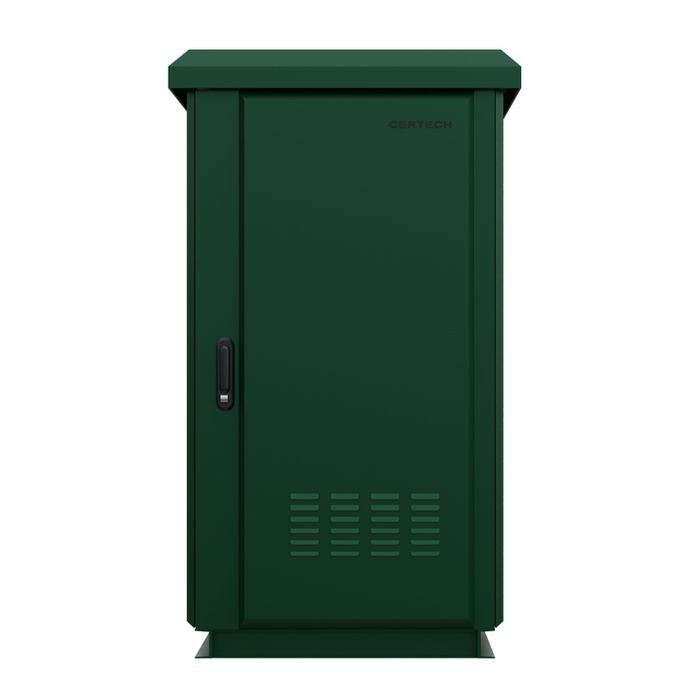

CERTECH 24RU 600mm Deep Outdoor Freestanding Cabinet. IP45 Rated, Forest Green **Made to Order**

Stock Code:
NROD248X6FG
Height:
1385mm
Width:
849mm
Depth:
661mm
Static Loading Capacity:
800kgs
Make an Enquiry
This is a made to order product. Contact us for more information
NROD248X6FG
CERTECH 24RU 600mm Deep Outdoor Freestanding Cabinet. IP45 Rated, Forest Green **Made to Order**

Product Details

  • Product Type:
    Outdoor - IP45 Rated Freestanding
  • Static Loading Capacity:
    800kgs
  • Colour:
    Forest Green
  • Material:
    Cold Rolled Steel
  • Mounting Profile Thickness:
    2.0mm
  • Mounting Angle Thickness:
    1.5mm
  • Surface Finish:
    Powder Coated
  • Mounting Hole Type:
    Square
  • Door Style:
    Vented Steel
  • Inclusions:
    4x Fans, 2x Filter
  • Security:
    Lockable front door
  • Assembly:
    Fully Welded Construction
  • Warranty:
    Standard 2-years limited product warranty
  • Warranty (Fans):
    Standard 2-years limited product warranty
  • Product Width:
    850mm
  • Product Depth:
    662mm
  • Product Height:
    1385mm

Product Overview

CERTECH IP45 free-standing racks are robust and reliable enclosures designed to house and protect critical electronic equipment in demanding environments. Constructed from high-quality steel with a durable zinc powder coating, these racks offer superior corrosion resistance and long-lasting performance. Racks are shipped fully assembled for quick deplyoment.

  • Key Features:

    • IP45 Protection: The IP45 rating ensures protection against dust and water jets, making these racks suitable for indoor and outdoor installations in various weather conditions.
    • Fans (IP45 Rated Models)

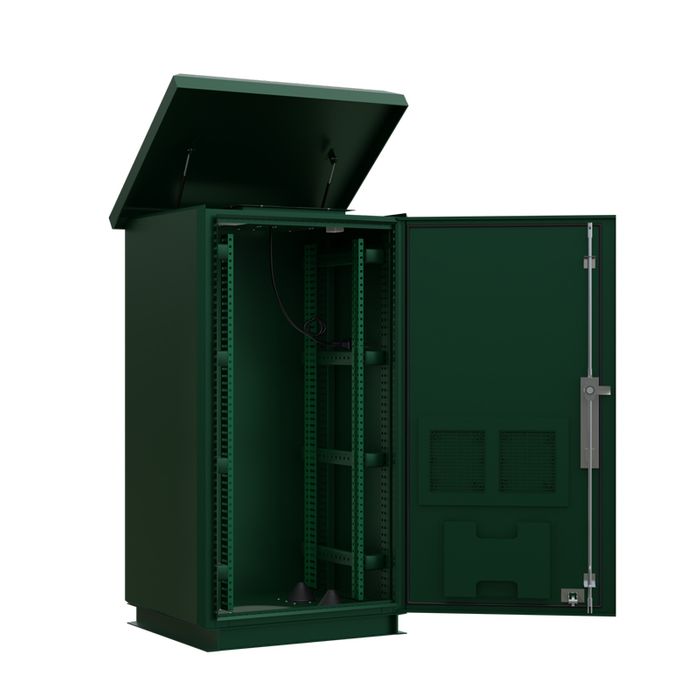

      Smartly designed, fans (with dust filters) are accessible by lifting the pivoting rain hood, allowing the fans to be serviced without having to remove any rack-mounted equipment. Comes with a thermostat for controlled air flow.
    • Robust Construction: The use of SGCC steel provides excellent strength and rigidity, capable of supporting heavy loads and withstanding vibrations.
    • Corrosion Resistance: The zinc powder coating offers superior protection against rust and corrosion, extending the lifespan of the rack even in harsh environments.

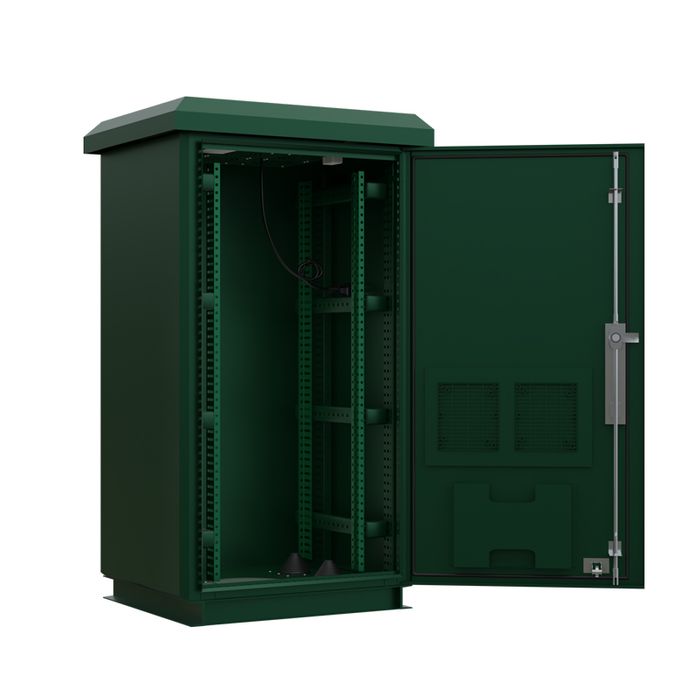

    • Front Door
      Front door has 130 degrees of movement, swinging from left to right, fitted with a water & dust polyurethane door joint strip.
    • Cable Entry
      Cable entry plates and glands located on the base panel of racks, making for easy cable access.
    • Rack Mounting Compatibility
      All racks are compatible with all EIA-310 compliant 19″ equipment.
    • Vertical Mounting Rails
      Vertical mounting rails can be adjusted back and forth to suit various sizes of equipment. Rack units are numbered front and back for easy equipment installation.
    • Ventilation & Dust Filters (IP45 Rated Models)
      The cabinet design allows natural wind cooling through filtered vents on the front door and venting under the lip of the rain hood, which has a 25mm vented lip and is angled at 75mm, allowing for water run-off. The filters are conveniently located on the front door, allowing for easy access & servicing, without having to remove any rack-mounted equipment.



Applications:



  • Telecommunications: Housing base stations, switching equipment, and other telecommunications infrastructure.
  • Industrial Environments: Enclosing control panels, PLCs, and other industrial automation equipment.

Outdoor Installations: Suitable for use in various outdoor environments, such as roadside cabinets and remote monitoring stations.

Warranty:

  • Warranty is subject to use within static loading specifications and operation within normal environmental conditions.
