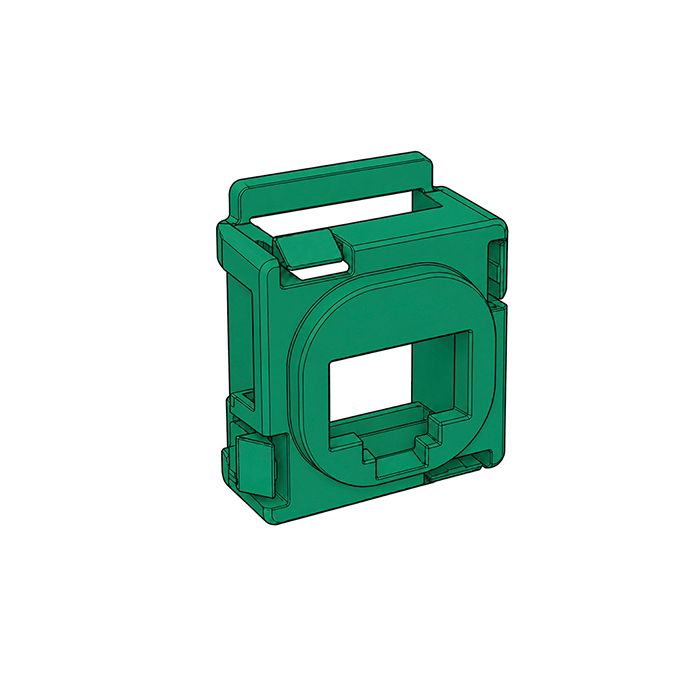

Green Bezel for Keystone Jacks to fit Clipsal 30 Series (2000, C2000), Zetr, Hager Hybrid Compatible, 10pc Pack
Product Details
-
Colour:Green
-
Material:ABS Plastic UL94V-0
-
Warranty:Standard 1-year limited product warranty
Product Overview
Create a neat, organised finish for your structured cabling outlets with the CERTECH JKBEZ10 Series Keystone Jack Bezels. Designed to mount compatible CERTECH Cat6 and Cat6A keystone jacks into suitable wall plates, these bezels provide a consistent interface between the jack and the plate.
The range suits Clipsal 30 Series (2000 and C2000) wall plates, along with compatible Zetr and Hager Hybrid plates. ABS+PC construction with a UL 94 V-0 material flammability rating provides a practical mounting solution for telecommunications outlets.
Choose from white, black, blue, green or yellow to complement the installation or identify outlets according to your project’s colour-coding scheme. All five variants share the same mechanical form and are supplied in convenient 10-piece packs.
Key Features
- Wall plate compatibility: Suits Clipsal 30 Series (2000 and C2000), plus compatible Zetr and Hager Hybrid plates.
- Keystone jack mounting: Suitable for compatible CERTECH Cat6 and Cat6A keystone jacks.
- Five colour options: White, black, blue, green and yellow for coordinated finishes or outlet identification.
- ABS+PC construction: Manufactured using material with a UL 94 V-0 flammability rating.
- Consistent form: Common mechanical design across all colour variants.
- 10-piece packs: Convenient quantities for installation and maintenance.
Applications
- Mounting compatible keystone jacks in telecommunications wall outlets.
- Colour-coded outlet identification in offices, schools and commercial premises.
- Residential and commercial structured cabling installations.
- Outlet additions, refurbishments and replacement bezel requirements.
Technical Specifications
Specification | Details |
Product type | Keystone jack mounting bezel |
Compatible jacks | Compatible CERTECH Cat6 and Cat6A keystone jacks |
Compatible wall plates | Clipsal 30 Series (2000 and C2000), compatible Zetr and Hager Hybrid plates |
Material | ABS+PC |
Material flammability rating | UL 94 V-0 |
Overall front width | 23.4 ±0.1 mm |
Overall front height | 24.4 ±0.1 mm |
Body width | 21.6 ±0.1 mm |
Body height | 21.6 ±0.1 mm |
Available colours | White, black, blue, green and yellow |
Installation
Mount the compatible keystone jack into the bezel, then fit the assembled bezel into the compatible wall plate. No cable termination is performed directly to the bezel.
Select the bezel colour to suit the installation’s finish or documented outlet identification scheme.
Warranty
Covered by CERTECH’s 5-Year Limited Product Warranty against manufacturing defects in materials and workmanship.
