EDIMAX 8 Port Gigabit Desktop Switch
Product Details
-
Material:Plastic
-
Warranty:Standard 1-year limited product warranty
-
Product Width:47mm
-
Product Depth:81mm
-
Product Height:20mm
Product Overview

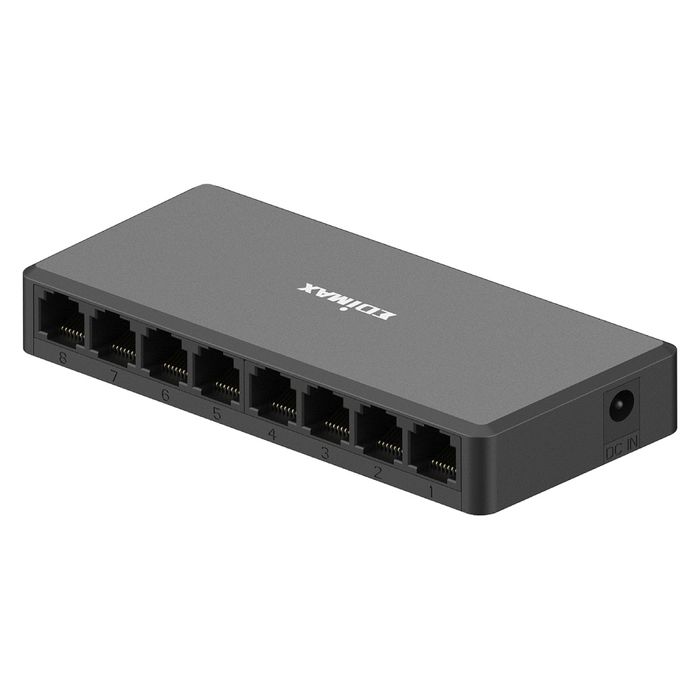

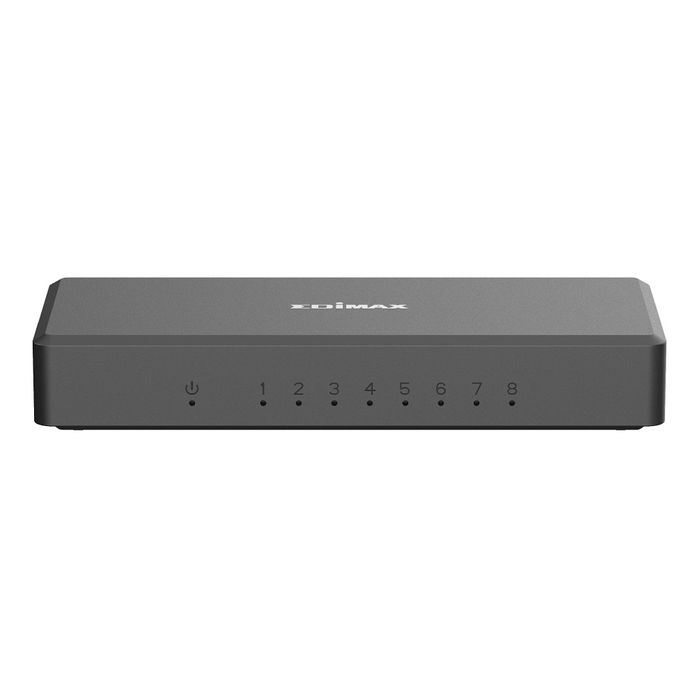

Edimax ES-5800G V4
8-Port Gigabit Desktop Switch
The Edimax ES-5800G V4 is a compact, unmanaged 8-port Gigabit Ethernet switch designed to expand reliable high-speed network connectivity in homes, small offices and commercial installations. Superseding the ES-5800G V3, it provides plug-and-play connectivity for computers, IP devices, access points, NAS devices, smart TVs and other Ethernet-enabled equipment.
With eight 10/100/1000Mbps RJ45 ports, fanless operation, wall-mount capability and optional USB power input, the ES-5800G V4 is a practical, energy-efficient solution where quiet operation and flexible installation are important.
Key Features
- Supersedes the Edimax ES-5800G V3
- 8 x Gigabit RJ45 Ethernet ports
- Plug-and-play unmanaged operation - no configuration required
- Supports up to 1000Mbps per port for fast local network connectivity
- 16Gbps switching capacity for efficient multi-device performance
- 9.2KB jumbo frame support for improved large-file transfers
- IEEE 802.3x flow control, auto-negotiation and Auto MDI/MDI-X
- Store-and-forward switching helps filter fragment and CRC error packets
- Fanless design for quiet, dependable operation
- IEEE 802.3az Energy Efficient Ethernet support
- Compact plastic housing for desktop or wall-mount installation
- Can be powered by the supplied 5V/1A power adaptor or an available USB Type-A power port

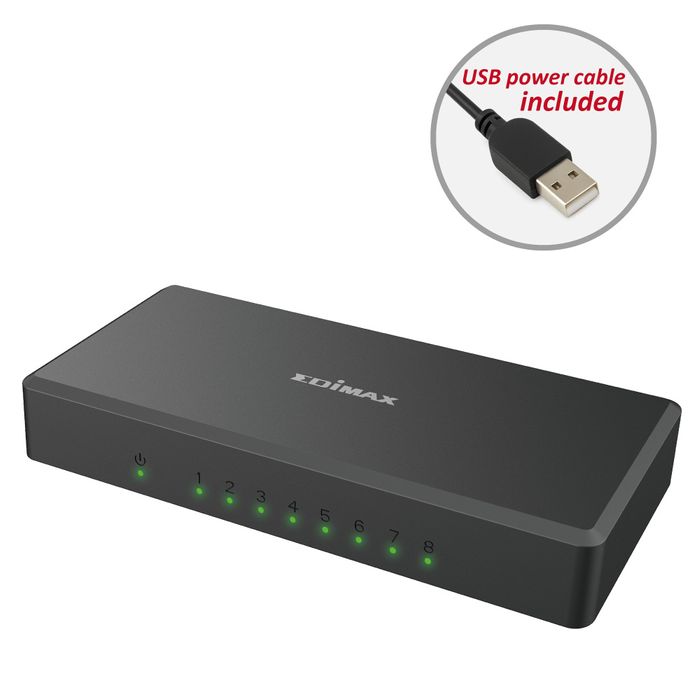

- Includes a 10cm USB Type-A to DC power cable for flexible deployment
- RCM compliant
Ideal Applications
The ES-5800G V4 is well suited to expanding wired connectivity for:
- Small offices and workstations
- Meeting rooms and reception areas
- Home offices and entertainment systems
- IP cameras, access points and IP phones
- NAS devices, media players and smart TVs
- Network-connected equipment requiring additional Gigabit ports
Technical Specifications
Feature | Specification |
Ports | 8 x 10/100/1000Base-T RJ45 ports |
Switching capacity | 16Gbps |
Forwarding rate | Up to 11.9Mpps |
MAC address table | 4K |
Jumbo frame | Up to 9.2KB |
Packet buffer | 1.5Mb |
Power consumption | 3W maximum |
Power input | 5V/1A AC/DC adaptor or USB Type-A port |
Mounting | Desktop or wall-mount |
Cooling | Fanless |
Dimensions | 52 W x 125 D x 20 H mm |
Weight | 80g |
Operating temperature | 0°C to 40°C |
Compliance | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az; CE, FCC, RCM |
In the Box
- Edimax ES-5800G V4 8-Port Gigabit Desktop Switch
- 5V/1A AC/DC power adaptor
- USB Type-A to DC power cable
