CERTECH 27RU 800mm Deep Outdoor Freestanding Cabinet. IP45 Rated, Grey - with Cable Management
Product Details
-
Product Type:Outdoor - IP45 Rated Freestanding
-
Static Loading Capacity:800kgs
-
Colour:Grey or Forest Green
-
Material:Cold Rolled Steel
-
Mounting Profile Thickness:2.0mm
-
Mounting Angle Thickness:1.5mm
-
Mounting Hole Type:Square
-
Door Style:1x Vented Steel
-
Inclusions:4x Fans, 2x Filter
-
Security:Lockable front door
-
Assembly:Fully Welded Construction
-
Warranty:2-year warranty. Subject to use within the static loading specifications and operation within normal environmental conditions
-
Warranty (Fans):1-year warranty
-
Product Width:850mm
-
Product Depth:866mm
-
Product Height:1519mm
Product Overview

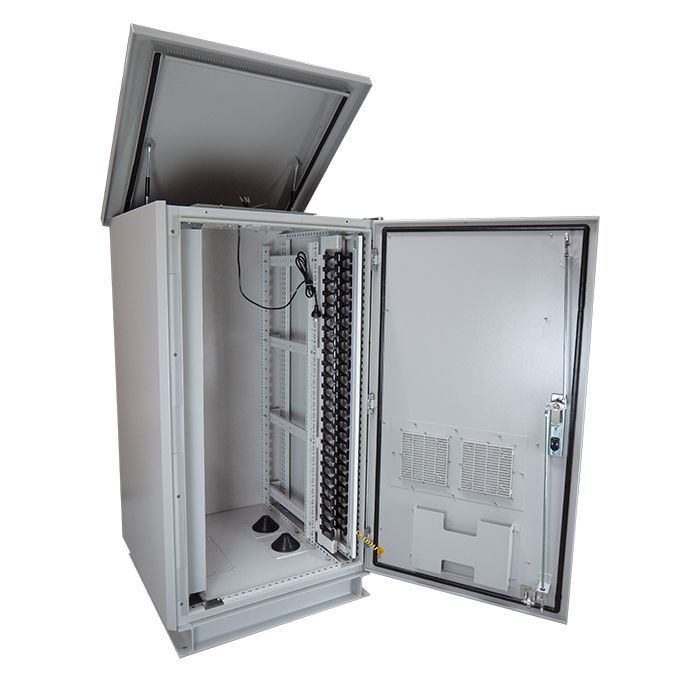

Protect critical network, communications and security equipment in exposed or harsh environments with the CERTECH 27RU Outdoor Freestanding Cabinet. IP45 rated and fully welded for strength, this grey 19-inch cabinet combines practical weather protection, integrated cable management and high static load capacity in one ready-to-deploy enclosure.
Designed for outdoor and demanding site applications, it features a double-layer lockable front door, pivoting rain hood for accessible fan and filter maintenance, and two 100mm-deep finger cable management channels to keep installations organised. A 300mm cable tray is included to support efficient cable routing and equipment installation.
The cabinet is supplied fully assembled and built from cold rolled steel with zinc and outdoor powder-coating protection.
Key Features
- IP45 rated outdoor freestanding cabinet
- 27RU of usable 19-inch equipment mounting space
- 800mm nominal cabinet depth
- Fully welded construction for strength and durability
- Double-layer, lockable front door with earth wire
- Pivoting rain hood allows easy access to fans and dust filters
- Two 100mm-deep finger cable management channels
- Includes one 300mm cable tray
- Square mounting holes for universal 19-inch equipment
- Grey outdoor powder-coated finish
- 800kg static loading capacity
- Supplied fully assembled for faster deployment
Technical Specifications
Specification | Detail |
Rack type | Freestanding outdoor cabinet |
IP rating | IP45 |
Rack height | 27RU |
Nominal depth | 800mm |
External dimensions | Approx. 1529mm H x 832mm W x 850mm D |
Internal mounting width | 19 inch / 450mm rail spacing |
Static loading capacity | 800kg |
Material | Cold rolled steel |
Finish | SGCC steel, zinc treatment and outdoor powder coating |
Colour | Grey |
Mounting holes | Square |
Security | Lockable double-layer front door |
Cable management | 2 x 100mm-deep finger cable management channels |
Cable tray | 1 x 300mm cable tray |
Assembly | Fully welded; supplied assembled |
Cabinet warranty | 2 years* |
Fan warranty | 1 year* |
*Subject to operation within normal environmental conditions and the specified static loading capacity.
Ideal For
- Outdoor communications and network installations
- CCTV and security-system infrastructure
- Industrial and manufacturing sites
- Transport, utilities and infrastructure projects
- Schools, campuses and distributed network locations
- Edge network equipment requiring a secure, weather-resistant enclosure
