Crimp Tool Modular Plug Pass Through
Product Details
-
Colour:Black and blue
-
Material:Plastic Body, Steel Plate Mechanics
-
Warranty:Standard 1-year limited product warranty
Product Overview

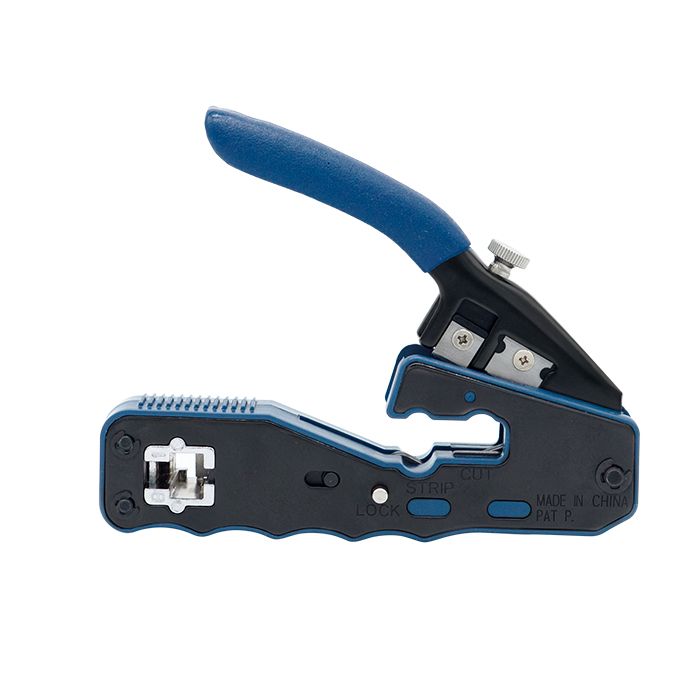

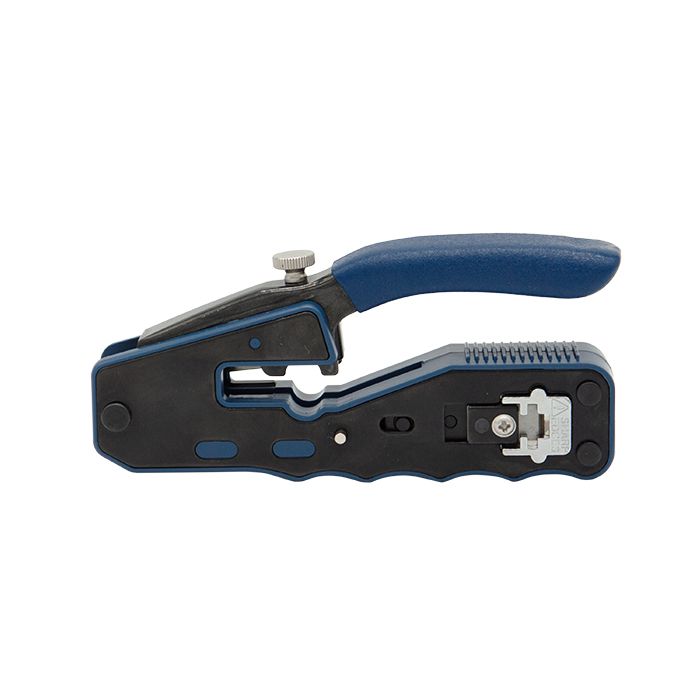

The CERTECH CTMODPPT is a dedicated crimping tool designed for terminating compatible 8P8C pass-through modular plugs, including the CERTECH JMPC6AUTP-100 Cat6A UTP Pass-Through Modular Plug.

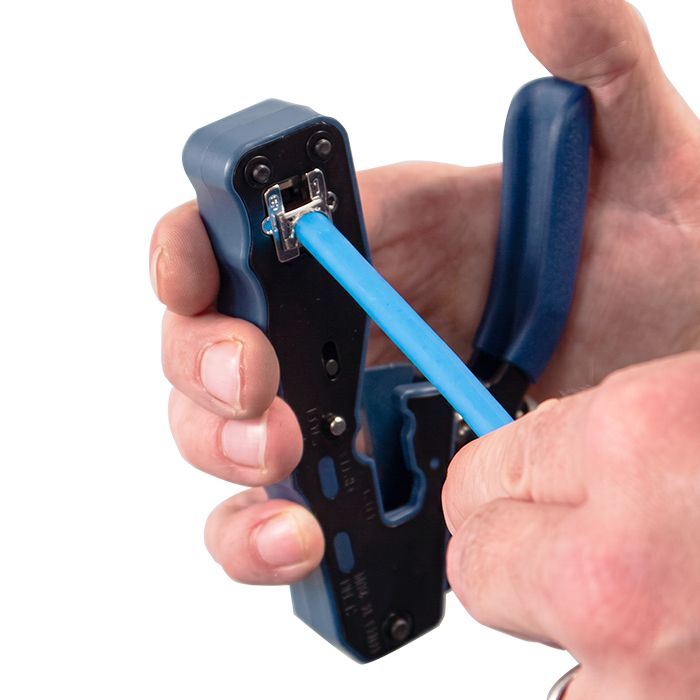

During crimping, the tool secures the plug contacts and trims the conductors extending through the front of the modular plug. This helps produce a clean, consistent termination while reducing the number of separate steps required during cable preparation and assembly.

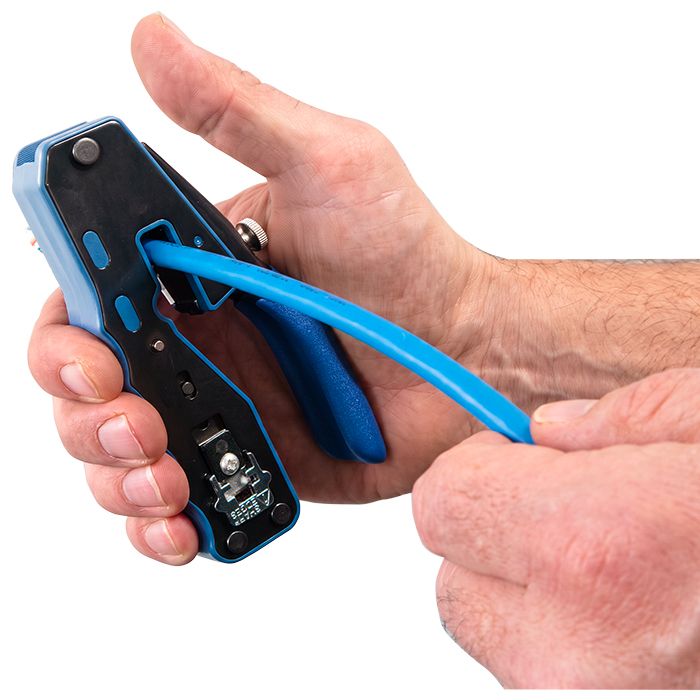

The tool also incorporates cable cutting and stripping functions, providing installers with a practical, compact solution for field termination, network maintenance and custom-length Ethernet cable assembly.
Key Features
- Designed for compatible 8P8C pass-through modular plugs
- Crimps the modular plug and trims excess pass-through conductors
- Integrated cable cutting function
- Integrated cable stripping function
- Dedicated modular plug crimping profile
- Built-in handle locking mechanism for compact storage
- Ergonomic handle design
- Compact and easy to carry in an installer tool kit
- Suitable for field termination and workshop use
Benefits
The CTMODPPT combines the primary cable preparation and termination functions in one compact hand tool. Its pass-through crimping action helps installers:
- Trim protruding conductors during the crimping process
- Produce clean and consistent modular plug terminations
- Reduce the need for separate cutting and stripping tools
- Complete field terminations efficiently
- Reduce conductor movement during final crimping
- Minimise termination errors and unnecessary rework
Applications
- Terminating Cat6A UTP pass-through modular plugs
- Custom-length Ethernet cable assembly
- Network cable installation
- Equipment and device connections
- Data and telecommunications projects
- Network maintenance and repair
- Field service and installation work
- Workshop cable preparation
Technical Information
Specification | Preliminary Detail |
Tool type | Pass-through modular plug crimp tool |
Compatible connector format | 8P8C pass-through modular plugs |
Functions | Crimping, conductor trimming, cable cutting and cable stripping |
Handle lock | Yes |
Approximate overall length | 134.99 mm |
Approximate overall height | 63 mm |
Compliance | RoHS, REACH, TSCA and Proposition 65 |
Pack quantity | 1 tool |
Compatible Modular Plugs
For use with:
JMPC6AUTP-100 – Cat6A UTP Modular Plug, Pass-Through, 100 Piece Jar
The pass-through conductors extend through the front of the compatible modular plug, allowing the wiring sequence to be checked before the plug is inserted into the tool. The CTMODPPT then crimps the plug and trims the excess conductors as part of the termination process.
