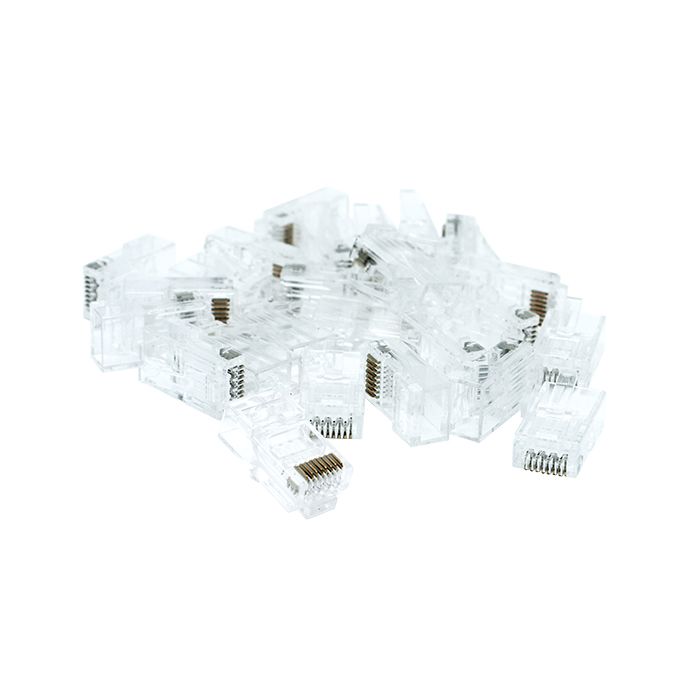

Cat6A UTP Modular Plug 100pc Jar
Product Details
-
Colour:Clear
-
Warranty:Standard 5-years limited product warranty
Product Overview

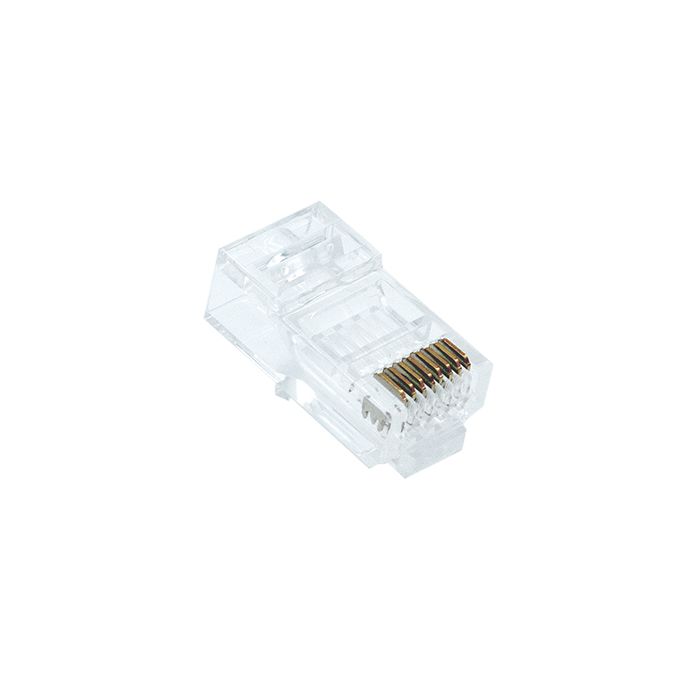

The CERTECH Cat6A UTP Pass-Through Modular Plugs are designed for terminating compatible unshielded twisted-pair network cable.

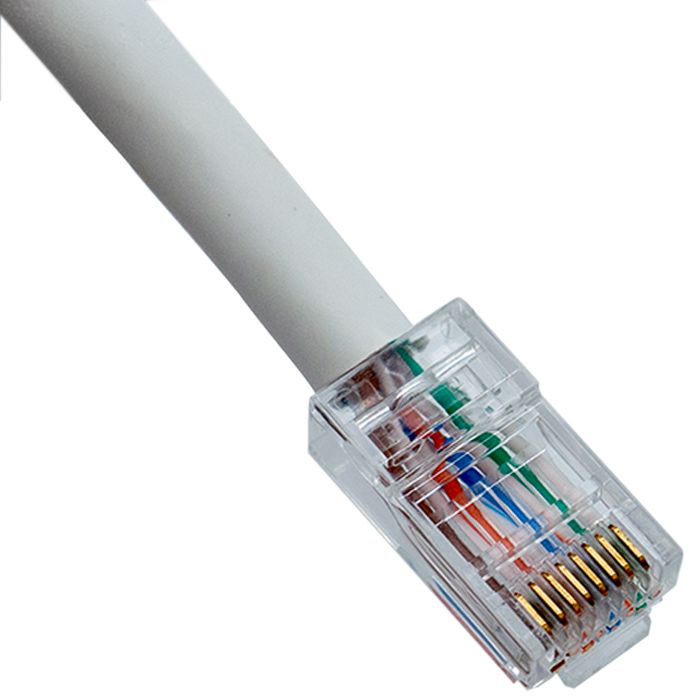

The pass-through design allows the individual conductors to extend through the front of the plug, making it easier to confirm the wiring sequence before crimping. When used with the CERTECH CTMODPPT Pass-Through Modular Plug Crimp Tool, the conductors are crimped and the excess wire is trimmed to produce a neat and consistent termination.
The modular plugs feature three-prong contacts with 50 micro-inch gold plating and are suitable for field termination, network installations, equipment connections and custom-length Ethernet cable assembly.
Key Features
- Cat6A UTP modular plug
- Pass-through design for easier conductor alignment and verification
- Allows the wiring sequence to be visually checked before crimping
- Three-prong contact design
- 50 micro-inch gold-plated contacts
- UL94V-2 rated housing material
- Minimum rated durability of 750 insertion cycles
- Supplied in a convenient resealable jar
- Designed for use with the CERTECH CTMODPPT Pass-Through Modular Plug Crimp Tool
Benefits of Pass-Through Modular Plugs
Pass-through modular plugs simplify field termination by allowing conductors to extend through the front of the connector. This helps the installer:
- Check the conductor colour sequence before crimping
- Maintain conductor alignment during termination
- Position the cable conductors fully inside the plug
- Reduce termination errors and rework
- Achieve neat and repeatable terminations
Applications
- Cat6A UTP network cable termination
- Custom-length Ethernet patch lead assembly
- Data and telecommunications installations
- Commercial network installations
- Equipment and device connections
- Network maintenance and repair
- Field termination by installers and technicians
Technical Information
Specification | Preliminary Rating |
Connector type | UTP pass-through modular plug |
Supported category | Cat6A |
Contact design | Three-prong |
Contact plating | 50 micro-inch gold plating |
Housing flammability rating | UL94V-2 |
Rated current | 1.5 A at 25°C |
Rated voltage | 125 V AC |
Contact resistance | 20 mΩ maximum |
Insulation resistance | 500 MΩ minimum at 100 V DC |
Dielectric strength | 1,000 V AC for 1 minute, without breakdown |
Insertion and withdrawal force | 20 N maximum |
Durability | 750 insertion cycles minimum |
Operating temperature | -40°C to +85°C |
Approximate overall length | 22.40 mm |
Pack quantity | 100 pieces |
Packaging | Resealable jar |
Required Termination Tool
For correct crimping and trimming of the pass-through conductors, use:
CERTECH CTMODPPT – Crimp Tool Modular Plug Pass Through
