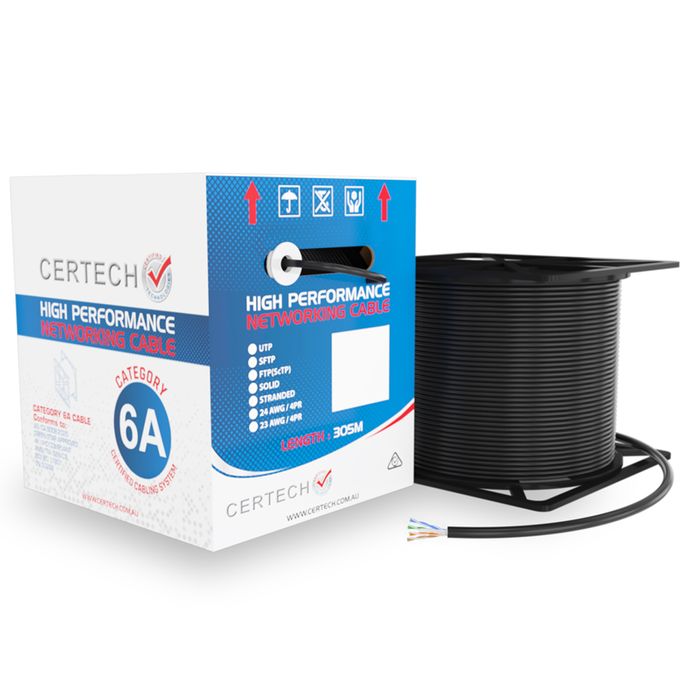

CERTECH 305M Cat6A 10G S/FTP Solid Cable, Black LSZH Jacket
Stock Code:
NCC6ASHLSZHBLACK
NCC6ASHLSZHBLACK
CERTECH 305M Cat6A 10G S/FTP Solid Cable, Black LSZH Jacket
Product Details
-
Product Type:Network & Data Cable - Cat6A S/FTP (Indoor)
-
Colour:Black
-
Material:LSZH Jacket
-
Warranty:Standard 15-years limited product warranty
-
Operating Frequency:500MHz
-
Weight:16.8kg / 305m
Product Overview
CERTECH High Performance, Bare Copper Cat6A Black S/FTP Horizontal Cable 23AWG x 4 Pairs
305m Cable Roll
Specifications
Cable Type: S/FTP
Jacket Material: LSZH
Conductor Material: Bare Copper Cable
Insulation Material: Skin Foam Skin PE
Cable Length: 305m
Cable Weight: 16.8kg/305m
Cable Diamater: 0.56
Cable Gauge: 23AWG
Jacket Thickness: 0.55±0.05mm
DC Resistance Unbalanced (Max.): in pair ≤2.0%, pair to pair≤4.0%
DC Resistance (Max.): ≤9.38Ω/100m
Dielectric Strength (Max.): DC 1000V 1min No Breakdown
Mutual Capacitance at Frequency: ≤5.8nF/100m
NVP: 74%
Operating Frequency: 500MHz
Flame Test Method: IEC60332-1-2
Installation Temperature: -20 ~ +60 degrees celcius
Operating Temperature: -40 ~ +75 degrees celcius
Packaging: Reel in Box
- Eligible certified warranty: CERTECH 25-year System Performance Warranty where all certification conditions are met and products for part of an end-to-end solution.
