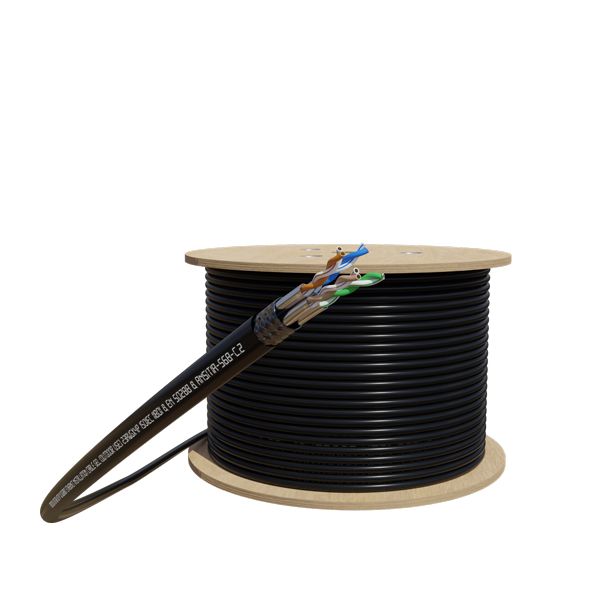

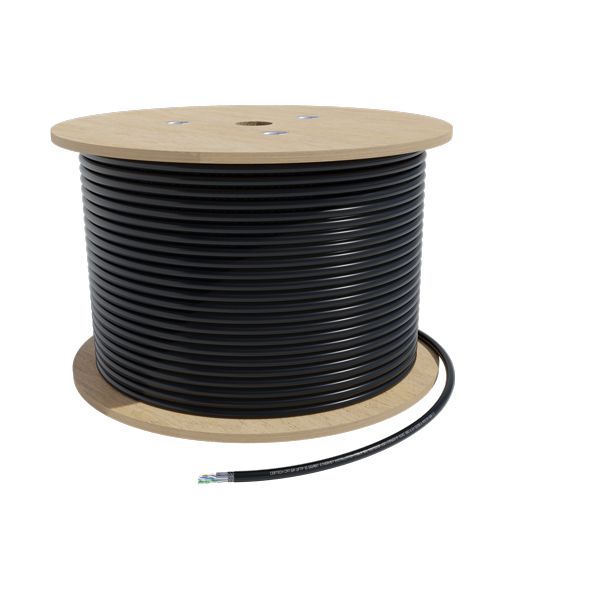

CERTECH 305M Cat6A 10G S/FTP Solid Gel Filled (Underground) Cable

Stock Code:
NCC6ASFTPGEL
Make an Enquiry
NCC6ASFTPGEL
CERTECH 305M Cat6A 10G S/FTP Solid Gel Filled (Underground) Cable

Product Details

  • Product Type:
    Network & Data Cable - Cat6A S/FTP (External Underground)
  • Colour:
    Black
  • Material:
    UV Stabilised PE Jacket
  • Warranty:
    Standard 15-years limited product warranty
  • Product Width:
    380mm
  • Product Depth:
    380mm
  • Product Height:
    320mm

Product Overview

The CERTECH NCC6ASFTPGEL 305M Cat6A 10G S/FTP Solid Gel-Filled Underground Cable is a high-performance, fully shielded communications cable designed for demanding outdoor and underground network installations.

Featuring four solid 23AWG bare copper twisted pairs, each pair is individually foil screened and protected by an overall tinned copper braid. This S/FTP construction provides excellent resistance to electromagnetic interference, alien crosstalk and electrical noise, helping maintain reliable Cat6A performance in electrically demanding environments.

A durable black polyethylene jacket provides protection against UV exposure, while the internal gel-filled moisture barrier helps protect the cable from water ingress. An integrated pair separator supports consistent electrical performance, and the internal strength member assists with pulling tension during installation.

Supporting transmission frequencies up to 500MHz and network speeds of up to 10Gbps, the NCC6ASFTPGEL is suitable for high-speed data, security, audiovisual and Power over Ethernet applications in external environments.

Key Features

  • 305m Cat6A solid conductor cable
  • Supports 10 Gigabit Ethernet and 10GBASE-T
  • High-bandwidth performance up to 500MHz
  • 23AWG solid bare copper conductors
  • S/FTP shielded construction
  • Individual aluminium/Mylar foil shielding around each pair
  • Overall tinned copper braid with at least 30% coverage
  • Internal drain wire for shield continuity and earthing
  • Gel-filled core for moisture protection
  • Black polyethylene outer jacket for UV resistance
  • Integrated pair separator for improved cable performance
  • Internal strength member to assist during cable pulling
  • Ripcord for easier jacket removal
  • Compatible with PoE, PoE+, PoE++ Type 3 and PoE++ Type 4
  • RoHS, RCM and REACH compliant

Applications

The CERTECH NCC6ASFTPGEL is suitable for:

  • Underground communications cable installations
  • External and above-ground cable runs
  • Building-to-building network links
  • 10GBASE-T Ethernet networks
  • Gigabit Ethernet and Fast Ethernet
  • IP surveillance and ONVIF security systems
  • High-bandwidth audiovisual systems
  • Voice, T1 and ISDN applications
  • Power over Ethernet devices
  • Outdoor wireless access points
  • IP cameras, intercoms and access-control equipment

Power over Ethernet Support

PoE StandardMaximum Power at PortCompatibility
IEEE 802.3af PoE15.5WCompliant
IEEE 802.3at PoE+30WCompliant
IEEE 802.3bt PoE++ Type 360WCompliant
IEEE 802.3bt PoE++ Type 4100WCompliant

Technical Specifications

SpecificationDetail
Product codeNCC6ASFTPGEL
Cable categoryCat6A
Cable constructionS/FTP
Cable length305m ±1.0m
Conductor typeSolid bare copper
Conductor size23AWG
Number of pairs4 twisted pairs
Nominal conductor diameter0.560mm
InsulationSkin-foam-skin polyethylene
Pair screeningAluminium/Mylar foil
Overall screeningTinned copper braid
Braid coverage≥30%
Drain wireYes
Moisture protectionGel-filled core
Outer jacket materialPolyethylene
Jacket colourBlack
Nominal external diameter7.6mm ±0.5mm
Operating bandwidthUp to 500MHz
Characteristic impedance100Ω nominal
Maximum DC resistance9.38Ω/100m
Maximum delay skew45ns/100m
RipcordYes
PackagingWooden cable drum

Standards and Compliance

  • AS/CA S008
  • AS 11801 series
  • ISO/IEC 11801
  • ANSI/TIA-568.2-E
  • UL 444
  • IEEE 802.3
  • RCM compliant
  • RoHS compliant
  • REACH compliant

Eligible certified warranty: CERTECH 25-Year System Performance Warranty where all certification conditions are met and products form part of an end-to-end solution
