100M Figure 8 13AWG 84/020 2.64mm2 Cable
Product Details
-
Material:Plain Stranded Annealed Bare Copper, PVC Jacket
-
Warranty:Standard 15-years limited product warranty
-
Product Width:270mm
-
Product Depth:270mm
-
Product Height:135mm
Product Overview
The CERTECH NSCFIG813100 100m Figure 8 Speaker Cable is a 13AWG, 2 x 2.64mm² OFC stranded copper cable designed for extra-low voltage speaker, security and electronic equipment wiring. Featuring clear PVC insulation and a black stripe for polarity identification, this cable is supplied on a convenient 100m reel for professional AV, communications and low-voltage installations.

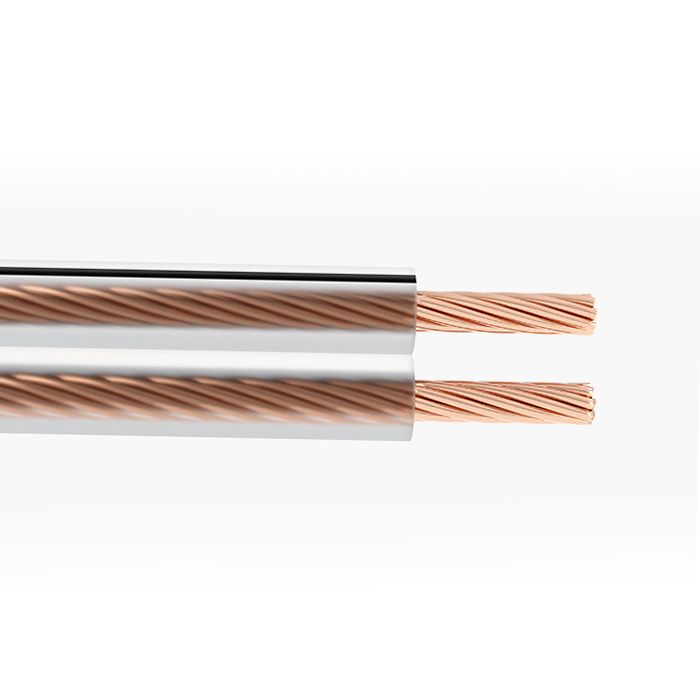

Manufactured with Plain Annealed Bare Copper, Oxygen Free Copper (OFC) conductors, the cable provides reliable conductivity and flexibility for professional installation environments. The clear Figure 8 construction includes a black stripe on one leg to assist with polarity identification during installation.
Features
- 2-core Figure 8 speaker cable
- 13AWG stranded copper construction
- 2 x 2.64mm² conductor size
- Plain Annealed Bare Copper, OFC conductors
- Transparent PVC insulation
- Black stripe on one leg for easy polarity identification
- Extra-low voltage rating
- Suitable for speaker, electronic equipment and security system wiring

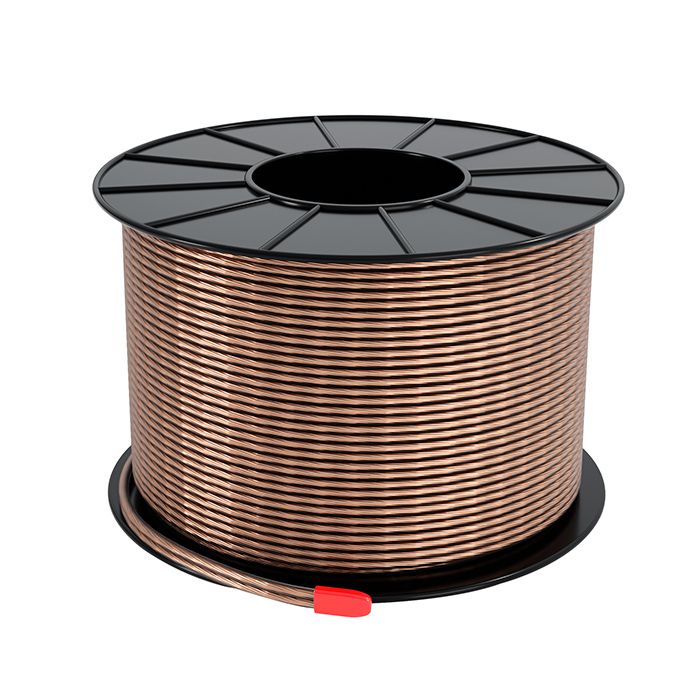

- Supplied on a 100m plastic or cardboard reel
- Manufactured to AS/NZS 1125
Applications
CERTECH Figure 8 Speaker Cable is suitable for the wiring of:
- Extension speakers
- Audio and electronic equipment
- Security systems
- Extra-low voltage installations
- Allied equipment and general-purpose low voltage wiring
Technical Specifications
Specification | Details |
Product Code | NSCFIG813100 |
Description | Figure 8 Speaker Cable |
Cable Type | 2 Core Figure 8 |
Conductor Size | 2 x 2.64mm² |
AWG | 13AWG |
Conductor Material | Plain Annealed Bare Copper, OFC |
Conductor Construction | 84/0.2 ± 0.005mm |
Nominal Conductor OD | 2.11mm |
Insulation Material | Transparent PVC |
Nominal Wall Thickness | 1.2mm |
Nominal Overall Diameter | 4.5 x 9.5 ± 0.2mm |
Construction | 2 cores laid in Figure 8, with black stripe on one leg |
Conductor DCR | 6.9 Ohm/km @ 20°C Max. |
Voltage Rating | Extra-low voltage |
Operating Temperature | -20°C to 75°C |
Packing Length | 100m |
Reel Type | Plastic Reel or Cardboard Reel |
Packing Weight | 9.5kg / 100m |
Standard | AS/NZS 1125 |
Standards
CERTECH NSCFIG813100 Figure 8 Speaker Cable is manufactured in accordance with AS/NZS 1125, supporting conductor compliance for applicable Australian and New Zealand cable requirements.
