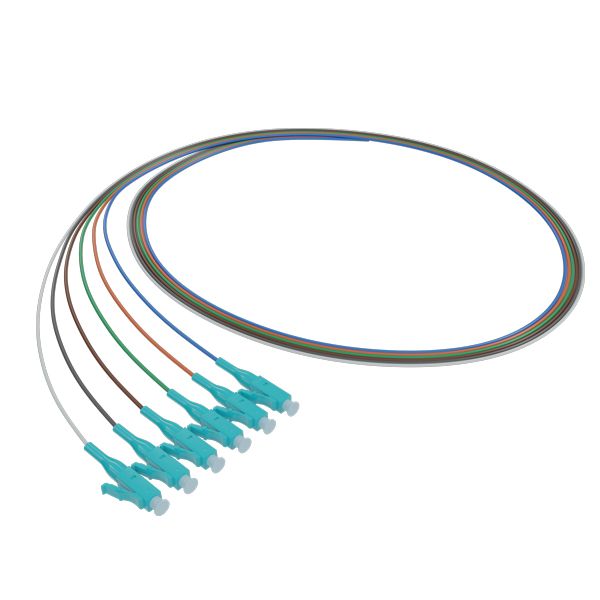

Fibre Pigtails, LC OM4, 2m Length - 6 Pack
Product Details
-
Material:LSZH Jacket
-
Warranty:Standard 2-years limited product warranty
Product Overview
The CERTECH OM4 LC Fibre Pigtails – 6 Pack are designed for fast, reliable fibre optic termination in professional network installations. Each pigtail is factory-terminated with an LC connector to support consistent end-face quality and optical performance, making it suitable for fusion splicing into fibre optic enclosures, patch panels and termination boxes.
Constructed with OM4 50/125 Multimode fibre, these pigtails are suitable for high-speed multimode network applications, including data centres, enterprise backbones and access networks. The 900µm tight buffer construction provides flexibility during installation, while the LSZH sheath supports use in indoor cabling environments where low-smoke, zero-halogen materials are preferred.
Key Features
- LC OM4 fibre pigtails for multimode fibre termination
- 2 metre length for flexible installation and splice management
- Supplied as a 6 pack for convenient project deployment
- Factory-terminated LC connectors for consistent optical performance
- 900µm tight buffer fibre for easy handling during installation
- LSZH tight buffer material suitable for indoor structured cabling environments
- OM4 50/125 multimode fibre for high-speed network applications
- Colour-coded pigtails for simplified fibre identification
- Designed for use with fusion splicing in fibre enclosures, trays and patch panels
- Suitable for enterprise, data centre, FTTx and access network environments
Technical Specifications
Specification | Details |
Product Code | FPTLCOM46 |
Product Description | Fibre Pigtails, LC OM4, 2m Length – 6 Pack |
Connector Type | LC |
Fibre Type | OM4 Multimode |
Fibre Construction | 50/125µm |
Length | 2m |
Pack Quantity | 6 pigtails |
Fibre Count | 1F per pigtail |
Tight Buffer Diameter | 0.9 ± 0.05mm |
Tight Buffer Material | LSZH |
Tight Buffer Colours | Blue, Orange, Green, Brown, Grey, White |
Minimum Bending Radius | 30mm |
Installation Temperature | -10°C to +60°C |
Operating / Transport Temperature | -20°C to +70°C |
Short-Term Tensile Strength | 80N |
Long-Term Crush Load | 50N/100mm |
Short-Term Crush Load | 80N/100mm |
10G Ethernet SX Application Support Distance | 550m |
Optical Performance
Characteristic | Condition | Specification |
Attenuation | 850nm | ≤0.3 dB/km |
Attenuation | 1300nm | 1.5 dB/km |
OFL Bandwidth | 850nm | ≥3500 MHz·km |
OFL Bandwidth | 1300nm | ≥500 MHz·km |
Effective Modal Bandwidth | 850nm | ≥4700 MHz·km |
Standards Compliance
CERTECH OM4 LC Fibre Pigtails are designed with reference to recognised fibre optic cabling and testing standards, including:
- AS/NZS 14763.3 Australian Fibre Testing Standard
- AS/CA S008 Australian Manufacturing Requirements
- AS 11801 Series Australian Performance Standard
- IEC 61300 Series Fibre Connector Performance Testing
- TIA-598-E Fibre Core Colour Code
Applications
- Fibre optic patch panel termination
- Fusion splicing in fibre enclosures
- Data centre multimode fibre links
- Enterprise structured cabling networks
- FTTx and access network installations
- High-speed OM4 multimode backbone cabling
- Network upgrades requiring LC multimode fibre connectivity
Why Choose CERTECH OM4 LC Fibre Pigtails?
CERTECH fibre pigtails are manufactured for dependable termination performance in professional fibre optic networks. The combination of factory-terminated LC connectors, OM4 multimode fibre and LSZH 900µm tight buffer construction provides installers with a practical, consistent and efficient solution for fibre splicing and network deployment.
