Fibre Pigtails, SC OS2, 2m Length - 6 Pack
Product Details
-
Material:LSZH Jacket
-
Warranty:Standard 2-years limited product warranty
Product Overview
CERTECH OS2 SC Fibre Pigtails are designed for dependable fibre termination in high-performance Singlemode optical fibre networks. Each pigtail is factory terminated with an SC connector to support consistent connector geometry, reliable end-face performance and low insertion loss in fusion splicing applications.
Manufactured using G.657.A2 bend-insensitive Singlemode fibre, these pigtails provide improved flexibility and reduced bend attenuation, making them suitable for fibre enclosures, splice trays, patch panels and confined installation spaces. The 900um tight buffer construction supports efficient handling during installation, while the TIA-598 colour coding allows for clear fibre identification.

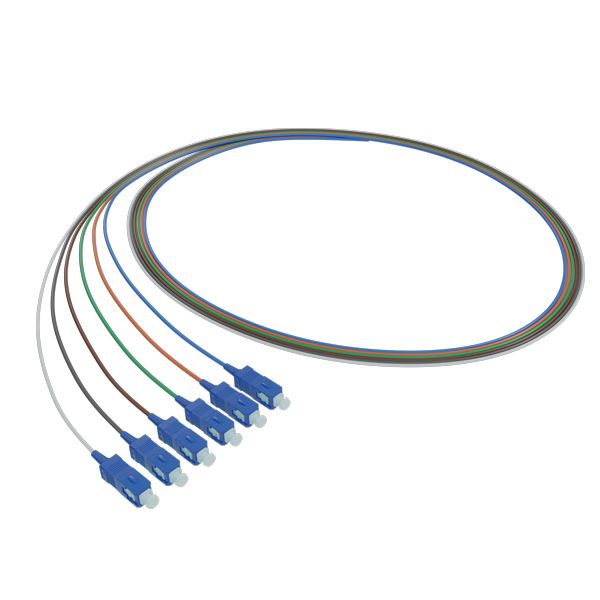

The pack includes six 2 metre OS2 SC pigtails in standard colours: blue, orange, green, brown, grey and white. Technical details are based on the supplied CERTECH specification sheet.
Key Features
- OS2 Singlemode fibre pigtails with SC connectors
- 2 metre length supplied in a 6 pack
- G.657.A2 bend-insensitive fibre construction
- 900um tight buffer for practical installation and splice handling
- Factory-terminated connectors for consistent optical performance
- Designed for use with fusion splicing
- TIA-598 colour coding for standardised fibre identification
- Suitable for structured cabling, FTTx, enterprise, data centre and access networks
- LSZH tight buffer material
- Compatible with industry-standard fibre enclosures and splice trays
Applications
CERTECH OS2 SC Fibre Pigtails are suitable for:
- Singlemode fibre optic network terminations
- Fusion splicing into fibre optic enclosures
- Fibre patch panels and splice trays
- FTTx and access network installations
- Data centre fibre infrastructure
- Enterprise structured cabling systems
- Telecommunications and communications cabinets
- Long-distance optical fibre links
Technical Specifications
Attribute | Specification |
Product Code | FPTSCOS26 |
Connector Type | SC |
Fibre Type | OS2 Singlemode |
Fibre Construction | G.657.A2 bend-insensitive fibre |
Length | 2 metres |
Pack Quantity | 6 pigtails |
Fibre Count | 1F |
Tight Buffer Diameter | 0.9 ± 0.05 mm |
Tight Buffer Material | LSZH |
Cable Weight | Approx. 0.85 kg/km |
Standard Colours | Blue, Orange, Green, Brown, Grey, White |
Installation Temperature Range | -10°C to +60°C |
Operation and Transport Temperature | -20°C to +70°C |
Minimum Bending Radius | 30 mm |
Tensile Strength | Max. 15 N |
Crush Load | Long-term: 50 N/100 mm; Short-term: 80 N/100 mm |
Attenuation at 1310 nm | ≤0.4 dB/km |
Attenuation at 1550 nm | ≤0.3 dB/km |
Mode Field Diameter at 1310 nm | 8.8 ± 0.4 um |
Mode Field Diameter at 1550 nm | 9.8 ± 0.5 um |
Standards
CERTECH OS2 SC Fibre Pigtails are designed with reference to the following standards:
- AS/NZS 14763.3 - Australian Fibre Testing Standard
- AS/CA S008 - Australian Manufacturing Requirements
- AS 11801 series - Australian Performance Standard
- IEC 61300 Series - Fibre Connector Performance Testing
- G.657.A2 - Bend Insensitive Fibre Core Construction
- TIA-598-E - Fibre Core Colour Code
