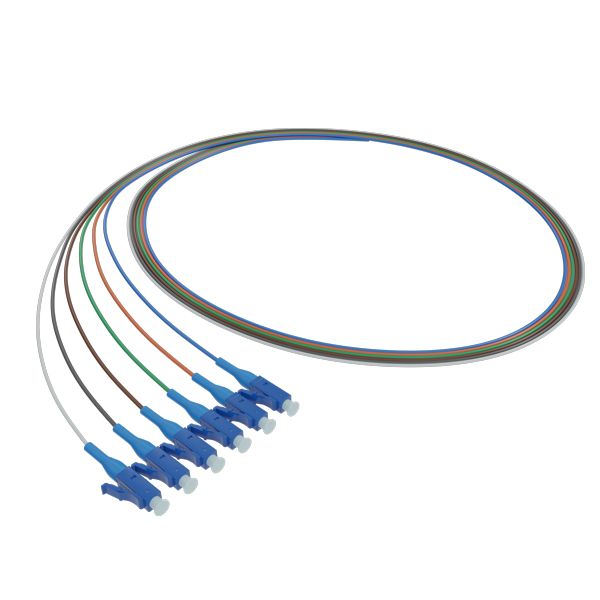

Fibre Pigtails, LC OS2, 2m Length - 6 Pack
Product Details
-
Material:LSZH Jacket
-
Warranty:Standard 2-years limited product warranty
Product Overview
Product Overview
The CERTECH OS2 LC Fibre Pigtails - 6 Pack are designed for reliable Singlemode fibre termination in structured cabling, data centre, enterprise and FTTx network environments. Each pigtail is factory-terminated with an LC connector to support consistent optical performance, low insertion loss and efficient fusion splicing.
Manufactured using G.657.A2 bend-insensitive Singlemode fibre, these pigtails provide excellent flexibility and reduced bend attenuation, making them suitable for high-density fibre enclosures, wall boxes, rack mount panels and telecommunications installations. The six-pack format includes colour-coded 900µm tight buffer fibres for easy fibre identification during installation and maintenance.
Key Features
- OS2 Singlemode fibre for long-distance and high-performance optical networks
- LC factory-terminated connectors for consistent end-face geometry and reliable performance
- G.657.A2 bend-insensitive fibre to reduce bend attenuation and improve installation flexibility
- 900µm tight buffer construction for fibre protection and ease of handling
- 2 metre length suitable for fusion splicing in fibre enclosures and patch panels
- Six-pack colour-coded set: Blue, Orange, Green, Brown, Grey and White
- LSZH tight buffer material for indoor structured cabling applications
- Designed to support installations aligned with Australian fibre cabling and testing standards
Applications
CERTECH OS2 LC Fibre Pigtails are suitable for use in:
- Fibre optic patch panels
- Wall mount fibre enclosures
- Rack mount fibre termination boxes
- Fusion splice trays and splice cassettes
- FTTx and access network installations
- Enterprise and commercial structured cabling systems
- Data centre and telecommunications networks
- OS2 singlemode backbone and distribution cabling
Technical Specifications
Specification | Details |
Product Code | FPTLCOS26 |
Description | Fibre Pigtails, LC OS2, 2m Length - 6 Pack |
Fibre Type | OS2 Singlemode, G.657.A2 |
Connector Type | LC |
Fibre Count | 6 pigtails per pack |
Length | 2 metres |
Tight Buffer Diameter | 0.9 ± 0.05mm |
Tight Buffer Material | LSZH |
Tight Buffer Colours | Blue, Orange, Green, Brown, Grey, White |
Cable Weight | Approx. 0.85kg/km |
Minimum Bending Radius | 30mm |
Installation Temperature | -10°C to +60°C |
Operation & Transport Temperature | -20°C to +70°C |
Tensile Strength | Max. 15N |
Crush Load | Long-term: 50N/100mm; Short-term: 80N/100mm |
Optical Performance
Fibre Characteristic | Specification |
Attenuation at 1310nm | ≤0.4 dB/km |
Attenuation at 1550nm | ≤0.3 dB/km |
Cable Cut-off Wavelength | ≤1260nm |
Mode Field Diameter at 1310nm | 8.8 ± 0.4µm |
Mode Field Diameter at 1550nm | 9.8 ± 0.5µm |
Effective Group Index at 1310nm | 1.466 |
Effective Group Index at 1550nm | 1.467 |
Point Discontinuities at 1310nm | ≤0.05dB |
Point Discontinuities at 1550nm | ≤0.05dB |
Standards
CERTECH OS2 LC Fibre Pigtails are designed with reference to the following standards listed in the datasheet:
- AS/NZS 14763.3 – Australian Fibre Testing Standard
- AS/CA S008 – Australian Manufacturing Requirements
- AS 11801 series – Australian Performance Standard
- IEC 61300 Series – Fibre Connector Performance Testing
- G.657.A2 – Bend-insensitive fibre core construction
- TIA-598-E – Fibre core colour code
