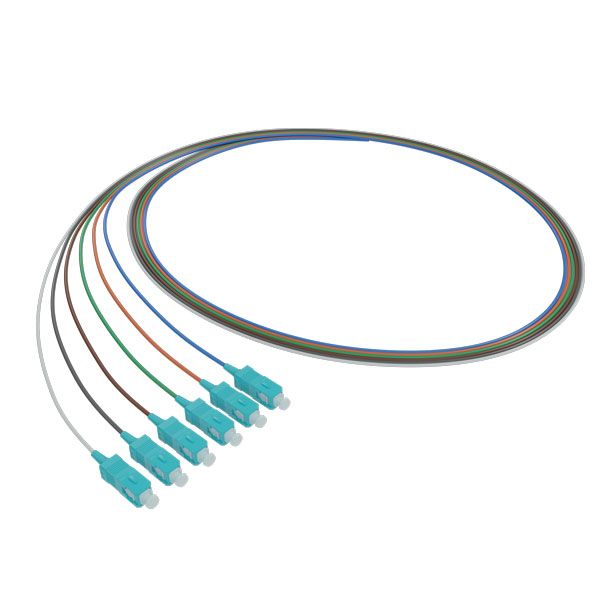

Fibre Pigtails, SC OM4, 2m Length - 6 Pack
Product Details
-
Material:LSZH Jacket
-
Warranty:Standard 2-years limited product warranty
Product Overview
CERTECH OM4 SC Fibre Pigtails are designed for professional fibre optic termination where consistent optical performance, ease of installation and reliable fibre identification are required.
Each pigtail features a factory-terminated SC connector to support consistent end-face geometry and dependable connection performance. The 900µm tight buffer construction provides flexibility during installation, while the LSZH jacket material supports use in indoor structured cabling environments.
The OM4 Multimode fibre construction is suitable for high-speed data transmission and supports 10G Ethernet SX applications up to 550 metres. Supplied in six standard colours — blue, orange, green, brown, grey and white — the pigtails allow clear fibre identification during splicing, testing and documentation.
CERTECH OM4 SC Fibre Pigtails are suitable for use with compatible fibre enclosures, wall boxes, splice trays and patch panels in structured cabling, data centre, enterprise network and FTTx environments.
Key Features
- OM4 50/125µm Multimode fibre for high-speed optical network applications
- SC connector termination for reliable connection into compatible fibre adaptors and equipment
- 2 metre pigtail length for practical installation and splicing flexibility
- 6 pack colour set for standardised fibre identification
- 900µm tight buffer construction for easy handling inside fibre enclosures and splice trays
- G.657.A2 bend insensitive fibre to help reduce bend-related attenuation
- LSZH material suitable for indoor cabling environments
- Factory-terminated connector for consistent optical performance
- Designed for fusion splicing into structured cabling and fibre termination systems
- Supports 10G Ethernet SX applications up to 550m
Applications
CERTECH OM4 SC Fibre Pigtails are suitable for:
- Fibre optic patch panels
- Fibre wall enclosures
- Data centre fibre termination
- Enterprise backbone cabling
- Commercial structured cabling installations
- Multimode fibre network upgrades
- FTTx access network termination
- Fusion splicing applications
- SC fibre adaptor and enclosure installations
- 10G Multimode network links
Technical Specifications
Specification | Detail |
Product Code | FPTSCOM46 |
Fibre Type | OM4 Multimode |
Connector Type | SC |
Length | 2m |
Pack Quantity | 6 Pack |
Fibre Construction | 50/125µm OM4 |
Cable Type | Single strand 900µm tight buffer indoor fibre optic cable |
Tight Buffer Diameter | 0.9 ± 0.05mm |
Fibre Count | 1F per pigtail |
Tight Buffer Material | LSZH |
Supplied Colours | Blue, Orange, Green, Brown, Grey, White |
Minimum Bending Radius | 30mm |
Installation Temperature | -10°C to +60°C |
Operation & Transport Temperature | -20°C to +70°C |
Short-Term Tensile Strength | 80N |
Long-Term Crush Load | 50N/100mm |
Short-Term Crush Load | 80N/100mm |
10G Ethernet SX Support Distance | 550m |
Standards
CERTECH OM4 SC Fibre Pigtails are designed with reference to relevant Australian and international fibre optic standards, including:
- AS/NZS 14763.3 – Australian Fibre Testing Standard
- AS/CA S008 – Australian Manufacturing Requirements
- AS 11801 series – Australian Performance Standard
- IEC 61300 Series – Fibre Connector Performance Testing
- G.657.A2 – Bend Insensitive Fibre Core Construction
- TIA-598-E – Fibre Core Colour Code
