12F MPO to SCA Loaded Wall Mount Enclosure
Product Details
-
Product Type:Fibre Optics-Enclosures
-
Colour:Black
-
Material:Cold rolled steel
-
Inclusions:12 x SCA simplex flangeless adaptors, 1 x MPO adaptor ear type, 1 x 12F MPO-SCA breakout cable 1.5 m
-
Warranty:Standard 2-years limited product warranty against defects in material and workmanship
-
Product Width:198mm
-
Product Depth:252.6mm
-
Product Height:46.5mm
Product Overview
The CERTECH 12F MPO to SCA Loaded Wall Mount Enclosure provides a practical and space-efficient solution for terminating and presenting fibre connections in passive optical network installations.
Designed for 12-fibre Singlemode OS2 applications, the enclosure enables transition from an MPO backbone connection to individual SCA simplex connections. Its loaded configuration helps reduce installation time on site, while the wall mount format makes it suitable for communications rooms, risers, building entry points, network access locations and other areas where rack space may be limited.

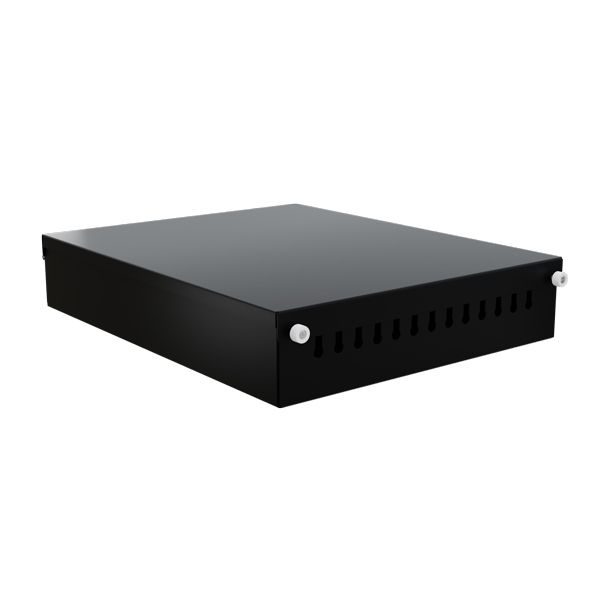

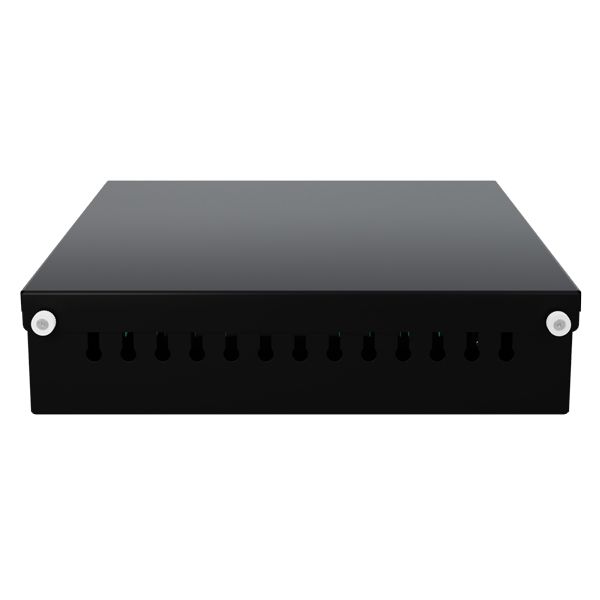

Constructed from black cold rolled steel, the enclosure provides durable protection for fibre terminations and internal cable management. It includes 12 x SCA simplex flangeless adaptors, 1 x MPO ear-type adaptor and 1 x 1.5 m 12F MPO-SCA breakout cable, making it a convenient fibre termination package for professional installers and network contractors.
Key Features
- 12-fibre loaded wall mount enclosure
- Pre-terminated 12F MPO-APC to 12x SC/APC simplex configuration
- True plug-and play deployment with no on-site termination or splicing
- Factory-terminated and individually tested for consistent, reliable performance
- Suitable for FTTP, FTTH and PON distribution applications
- Robust 1.2mm cold rolled steel construction with powder coated finish

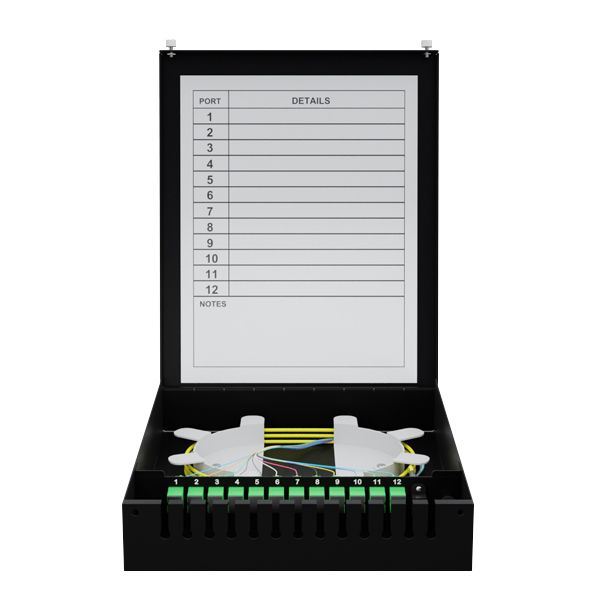

- Preconfigured internal fibre management for clean routing and fast deployment
- Integrated port identification labelling for simplified management
- Compact wall mount enclosure for space-constrained installations
Technical Specifications
Fibre capacity | 12 fibre |
Input interface | MPO |
Output interface | SCA simplex |
Fibre type | Singlemode OS2 |
Included adaptors | 12 x SCA simplex flangeless adaptors |
MPO adaptor | 1 x MPO adaptor, ear type |
Included cable | 1 x 12F MPO-SCA breakout cable, 1.5 m |
Enclosure material | Cold rolled steel |
Enclosure colour | Black |
Dimensions | 19.8cm x 25.3 cm x 4.7 cm |
Insertion loss | ≤0.70 dB |
Return loss | ≥55 dB |
Mounting style | Wall mount |
Applications
- Passive optical network installations
- MPO backbone breakout to SCA presentation
- Telecommunications fibre termination points
- Commercial building fibre infrastructure
- MDU and riser fibre distribution
- Communications rooms and network access points
- Wall-mounted fibre termination where rack space is limited
- Structured cabling and carrier network deployments
Standards
CERTECH 12F MPO to SCA Loaded Wall Mount Enclosure is designed with reference to relevant Australian and international fibre cabling standards, including:
- AS/CA S008 Australian Manufacturing Requirements
- AS/CA S009 Installation Requirements for Customer Cabling
- AS 11801 Series Australian Performance Standard
- AS/NZS 14763.3 Australian Fibre Testing Standard
- IEC 61754 Series Fibre Connector Interface Geometry
- IEC 61300 Series Fibre Connector Performance Testing
- IEC 61753 Fibre Component Performance Standard
- ITU-T G.652.D Singlemode Fibre Manufacturing Performance
- ITU-T G.657.A1 Bend Insensitive Fibre Standard
