FEW96C
96 Core Fibre Wall Mount Enclosure
Product Details
-
Product Type:Aluminium Alloy Housing, Cold Rolled Steel Panel
-
Colour:Black
-
Surface Finish:Powder Coated
-

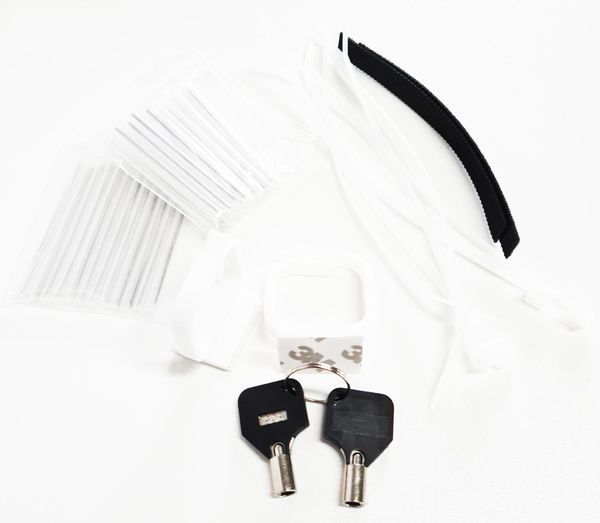

Inclusions:Heat Shrink Sleeves, Magic Stick Strip, Cable Saddle, Cable Ties & Adaptor plates
-
Security:Keyed alike doors
-
Warranty:Standard 2-years limited product warranty against defects in material and workmanship
-
Product Width:322mm
-
Product Depth:253.4mm
-
Product Height:80mm
Product Overview

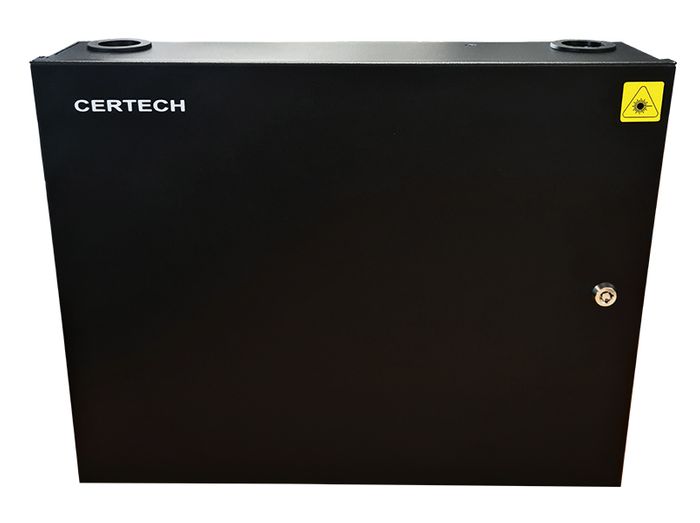

The CERTECH 96F wall mount enlosure is designed to manage and distribute fibre optic cables within a network. It provides a secure and organised way to splice / patch up to 96 fibres. These boxes are suitable for use in any indoor environment. The enclosure is fitted with multiple cable entry points and is lockable, providing security. The compact size makes this the ideal enclosure to use for high density fibre requirements where space is limited. Supplied with 2 x 24-port & 2 x 12-port (LC duplex) adaptor plates, this enclosure is suitable for up to 96F in an LC duplex installation or up to 48F in an SC simplex installation.
Features
- Capacity: Can accommodate up to 96F (LC duplex) or 48F (SC simplex).
- Security: Lockable front door.

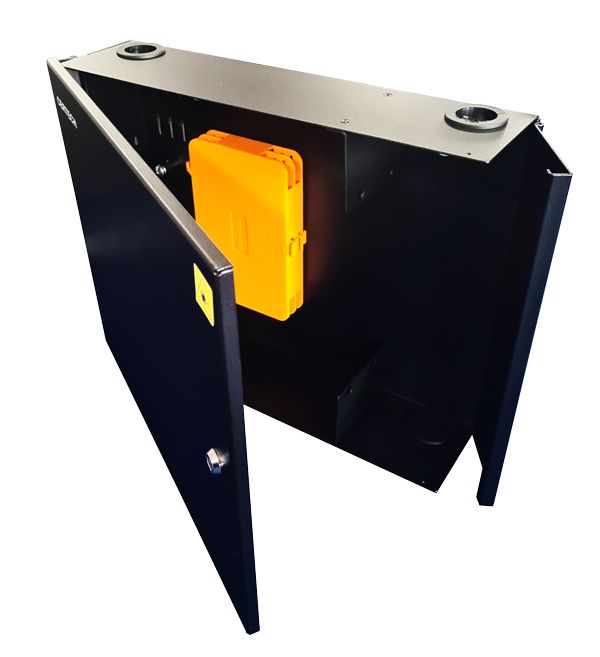

- Splice Trays: Supplied with 2 x double stack splice trays.

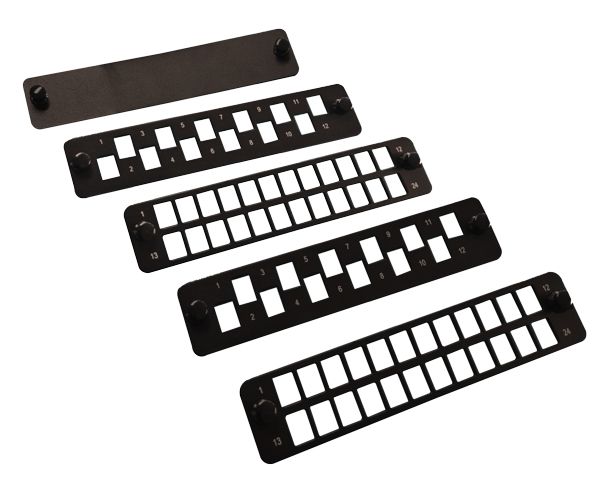

- Adaptor Plates: Supplied with 2 x 24-port LC duplex plates, 2 x 12-port LC duplex plates & 1 x blank plate.
- Material: Made from cold rolled steel & aluminium alloy.
- Surface Finish: Powder coated black (RAL9005).
- Dimensions: 322.2 (W) x 253.4 (D) x 80mm (H).
