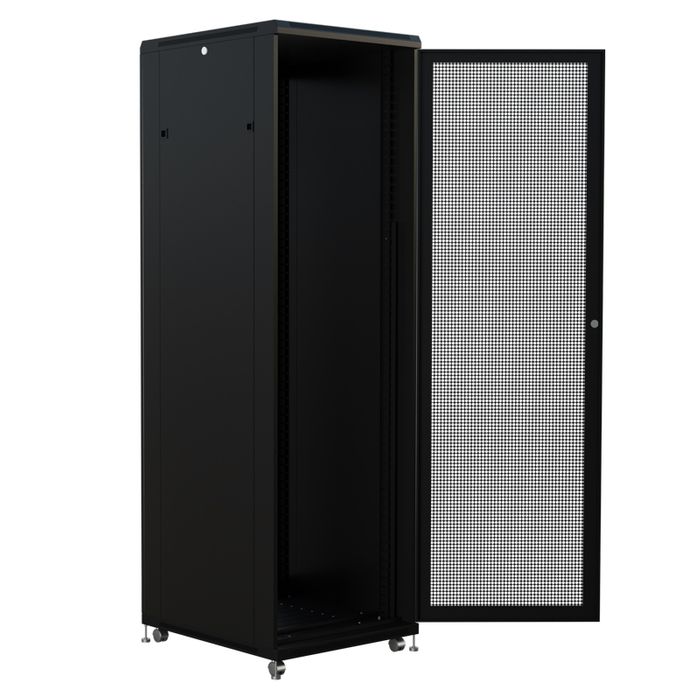

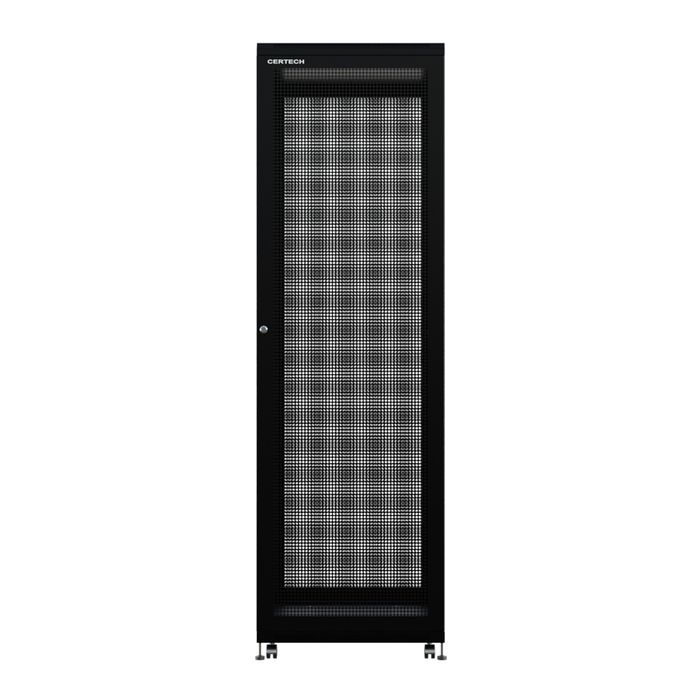

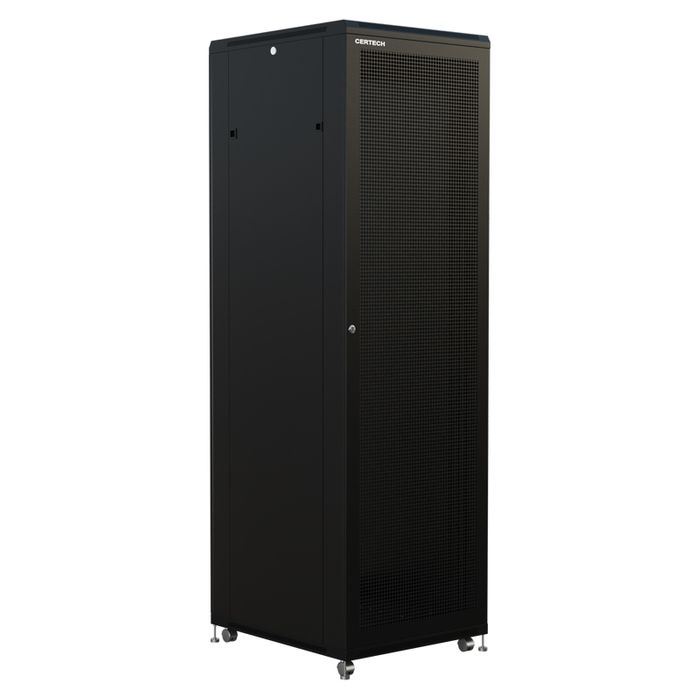

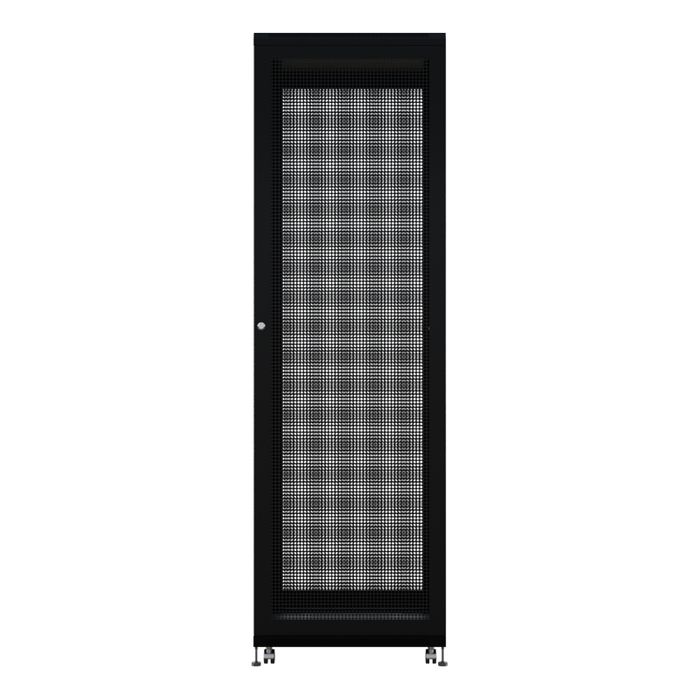

CERTECH DoE Approved 45RU Server Rack, 600mm (W) x 600mm (D)

Stock Code:
NSR456X6-DOE
Static Loading Capacity:
1,000kg
Make an Enquiry
NSR456X6-DOE
CERTECH DoE Approved 45RU Server Rack, 600mm (W) x 600mm (D)

Product Details

  • Product Type:
    DOE Approved
  • Static Loading Capacity:
    1,000kg
  • Colour:
    Black
  • Material:
    SPCC Cold Rolled Steel
  • Mounting Profile Thickness:
    2.0mm
  • Mounting Angle Thickness:
    1.5mm
  • Surface Finish:
    Powder Coated
  • Mounting Hole Type:
    Square
  • Door Style:
    Perforated split Front and Rear doors, honeycomb style

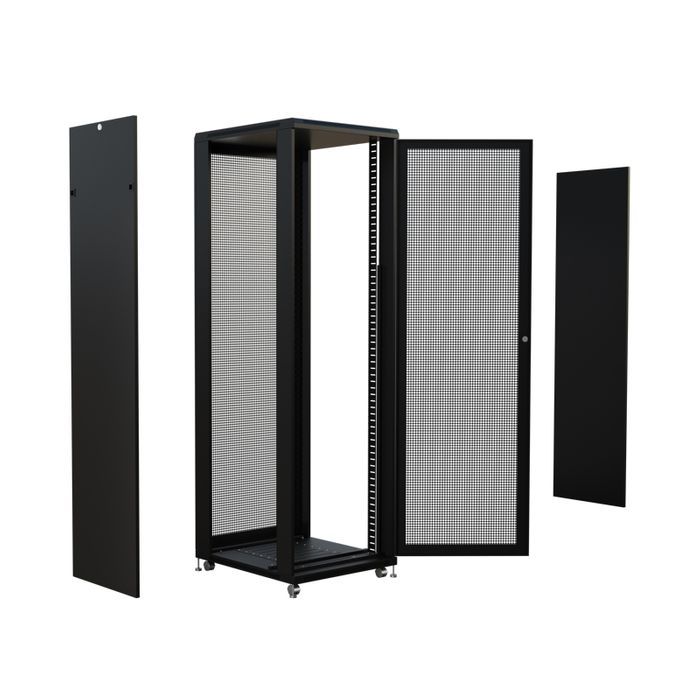

  • Side Panels:
    Single piece, lockable and removable
  • Inclusions:
    4 x fans, 3 x shelves, 25 x cage nuts, 1 x horizontal 6 outlet PDU, 4 x castor wheels & levelling feet
  • Security:
    Keyed alike doors & side panels
  • Warranty:
    Standard 3-years limited product warranty
  • Warranty (Fans):
    2-years limited product warranty
  • Compliance:
    IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491-1, DIN41494-7, GB/T3047.2-92
  • Product Width:
    600mm
  • Product Depth:
    600mm
  • Product Height:
    2210mm

Product Overview

CERTECH DoE racks are manufactured around universal 19" standards, providing the ability to use our racks with universal 19" equipment from vendors worldwide. All racks are constructed from high quality cold rolled steel & are shipped fully assembled for quick deployment.

 Features

  •  180° Locks fitted to doors and side panels
  •  Perforated split Front and Rear doors - Honeycomb style
  •  Perforated rear doors provide ventilation for servers and networking equipment.

Fans

  • Fitted to a drop-down tray, allowing for easy access and maintenance, without having to remove any equipment inside the rack.

Cable Entry

  • Large cable access glands in the roof & base of the rack, provide access for overhead & underneath run cables.

Rack Mounting Compatibility

  • All racks are compatible with all EIA-310 compliant 19″ equipment.

Vertical Mounting Rails

  • Vertical mounting rails can be adjusted back and forth to suit various sizes of equipment. Rack units are numbered front and back for easy equipment installation.

Integrated Earthing

  • Multiple earthing points & wires are fitted throughout the rack, on the roof, base, side panels & doors.

Standards

  • Complies with IEC-60297, ANSI/EIA RS-310-D, IEC297.2, DIN41491; PART1, DIN41494; PART7, GB/T3047.2-92

Warranty

  • Warranty is subject to use within static loading specifications and operation within normal environmental conditions.
