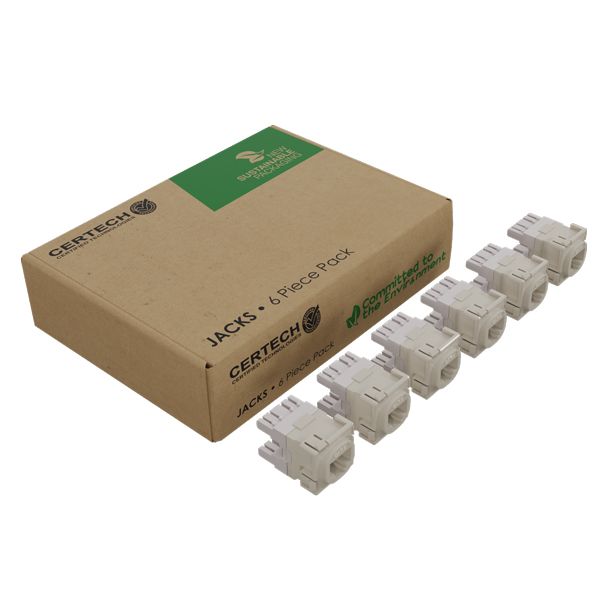

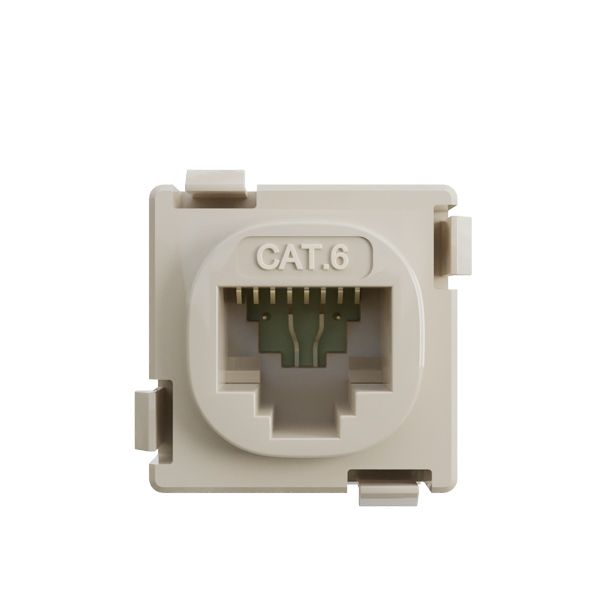

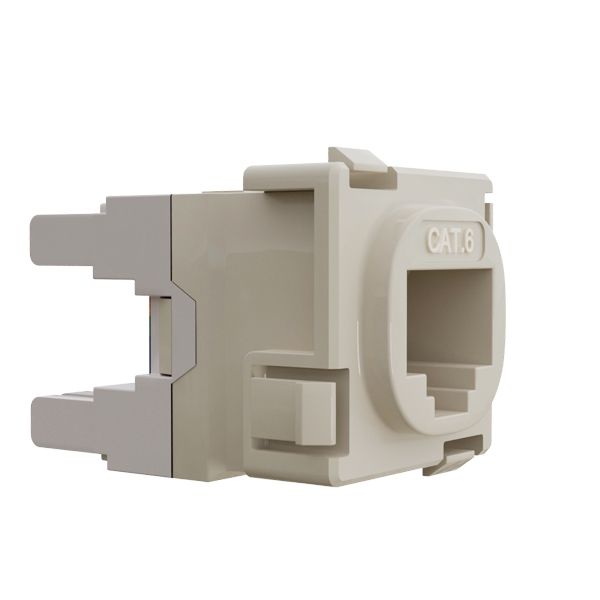

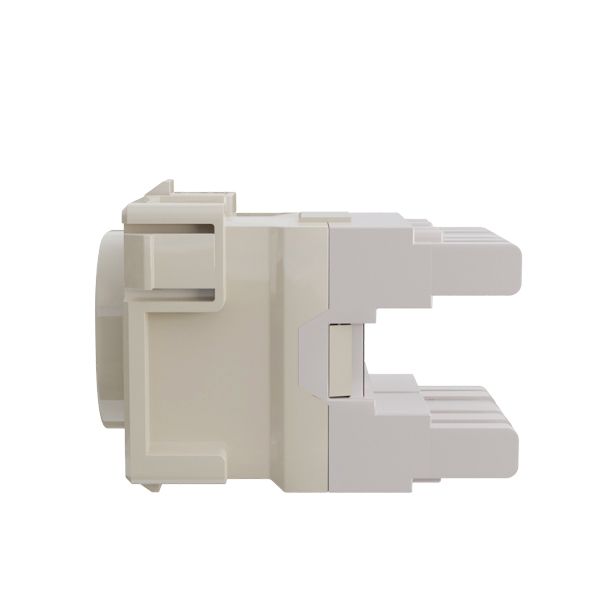

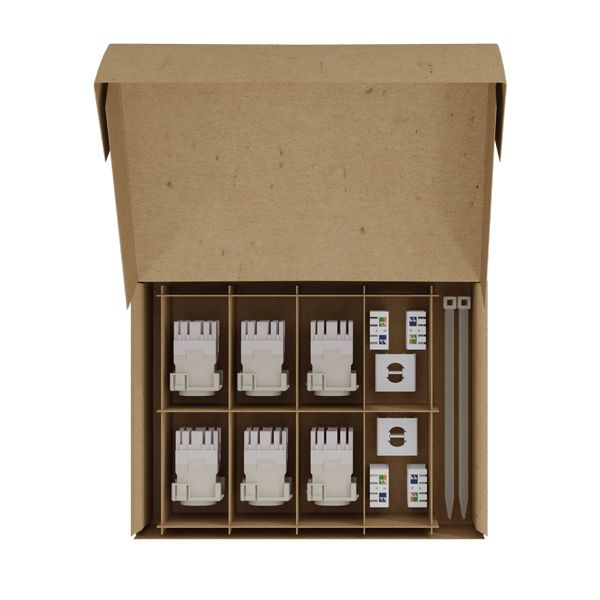

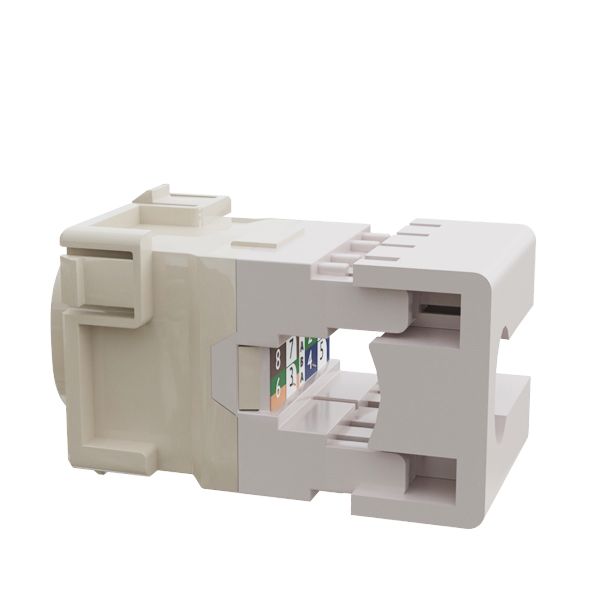

Cat6 RJ-45 UTP Wall Plate Jack. White, 6pc Pack
Product Details
-
Colour:White
-
Material:ABS Plastic UL94V-0
-
Warranty:Standard 5-years limited product warranty
Product Overview
CERTECH Cat6 RJ-45 UTP Wall Plate Jack - 6 pack.
Colour: White
FEATURES:
Dual IDC connector can accept 23-26 AWG Stranded and Solid cables

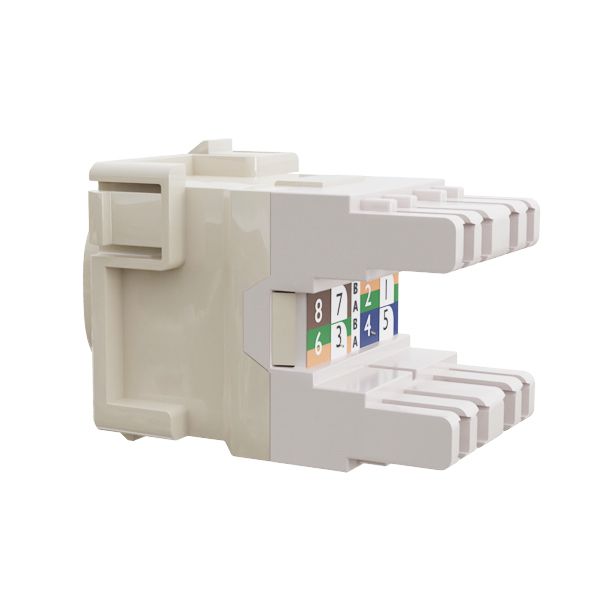

Supports both T568A &T568B wiring
Performance conforms to ANSI/TIA-568-C.2, ISO/IEC 11801 Category 6 specification
RoHS, REACH, TSCA compliant
ELECTRICAL SPECS:
Insulation Resistance: 500m ohms (min)
Contact Resistance: 20m ohms (max)
Temperature Range: -10° to 60° max
Humidity: 10%-65%
PHYSICAL SPECS:
High impact plastic housing, flame retardant UL 94V-0
IDC Contact: Nickel plated over phosphor bronze
IDC Operating life: Minimum 250 Re-terminations
Jack Contact: Phosphor bronze, 50 Micro-inch gold plating over nickel plating in contact area
Eligible certified warranty: CERTECH 25-year System Performance Warranty where all certification conditions are met and products for part of an end-to-end solution
