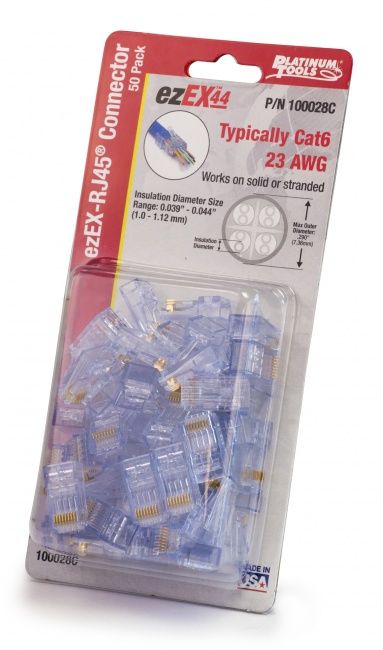

Platinum Tools ezEX44 RJ45 CAT6 Connectors, 50pc Clamshell

Stock Code:
100028C
100028C
Platinum Tools ezEX44 RJ45 CAT6 Connectors, 50pc Clamshell

Product Overview

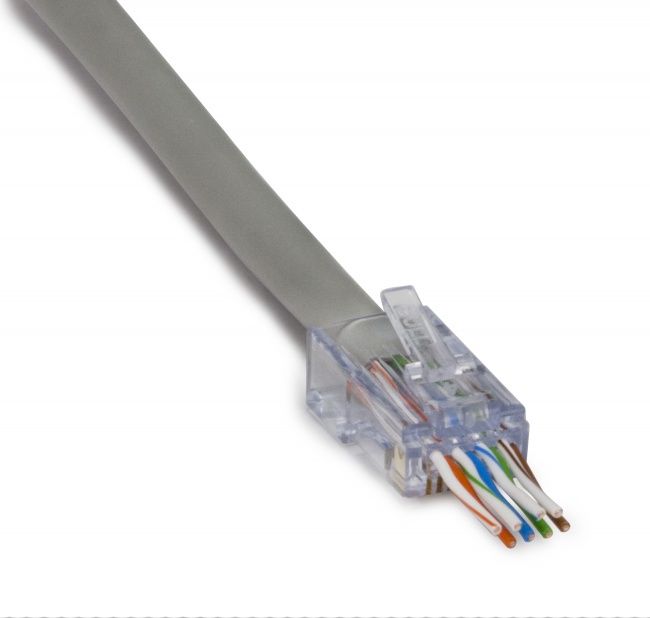

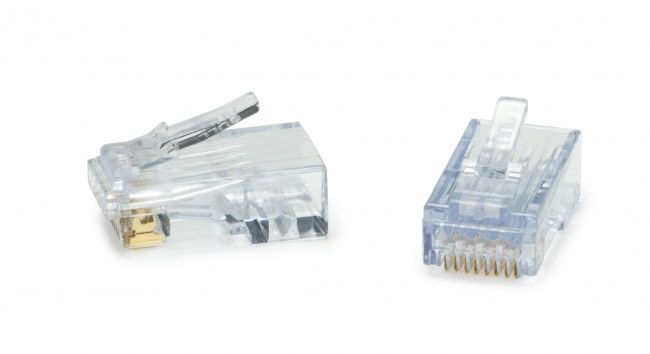

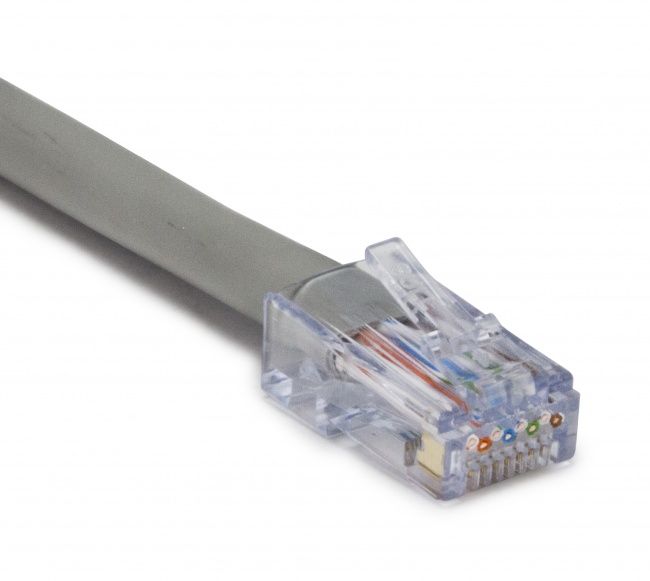

The patented ezEX44 connectors feature a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6 (Sm. Cat6A) cabling and is recommended for PoE/PoE+ and Data applications.



Required Tool: 100061C



  • Hi-Lo stagger to isolate each conductor
  • Simple one piece/pass through design, no bars or liners
  • Insulation Diameter (Conductor) Size range: .039” – .044” (1.0 –1.12mm)
  • Max Outer Diameter: .290” (7.36mm)
  • 50 micron gold plated contacts
  • Cat5e/6 compliant
  • Solid or Stranded 24-22 AWG
  • TIA, TAA, RoHS, UL & FCC compliant
  • Typically used with Cat6
  • Made in the USA
  • Patent 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2
