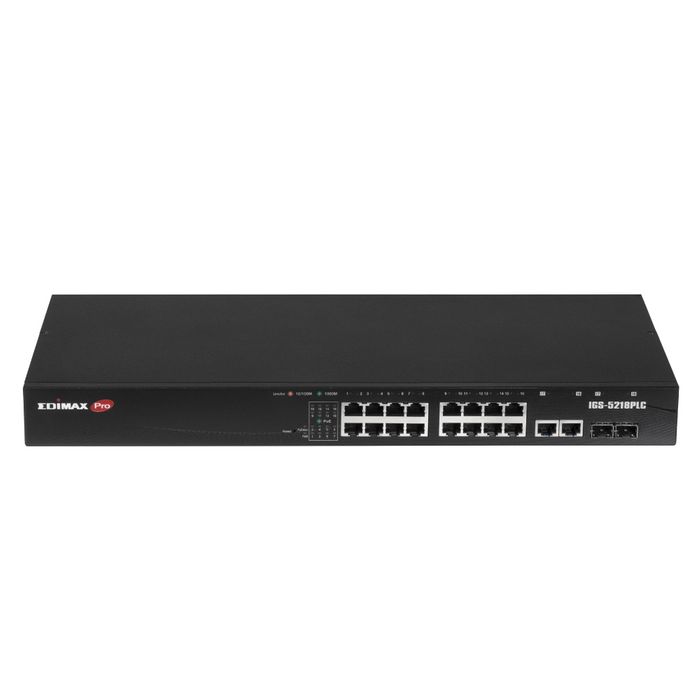

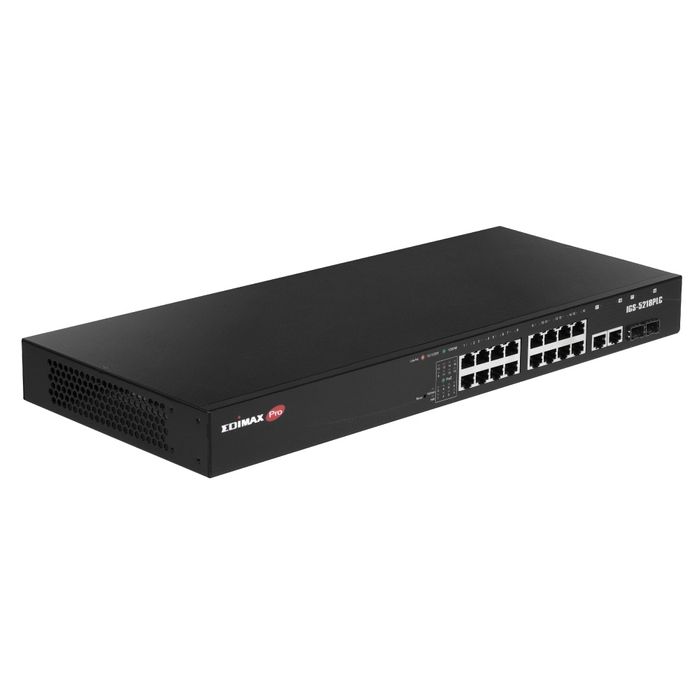

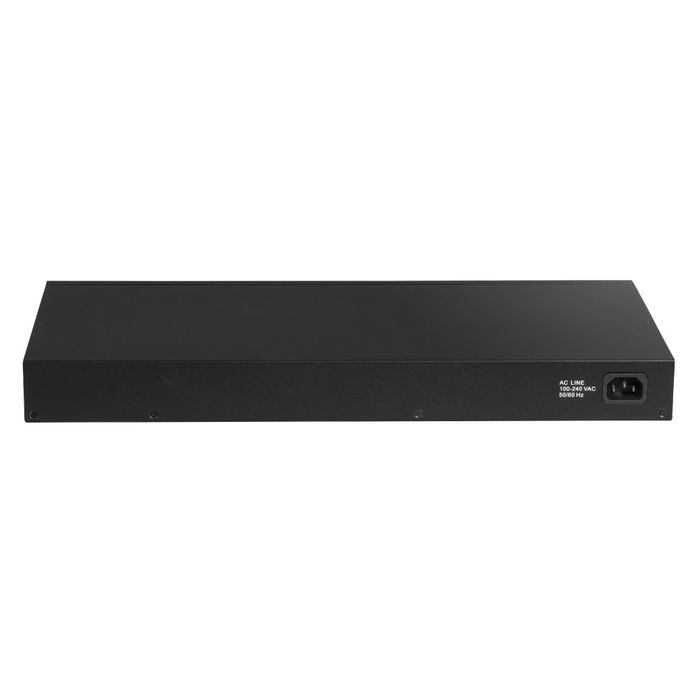

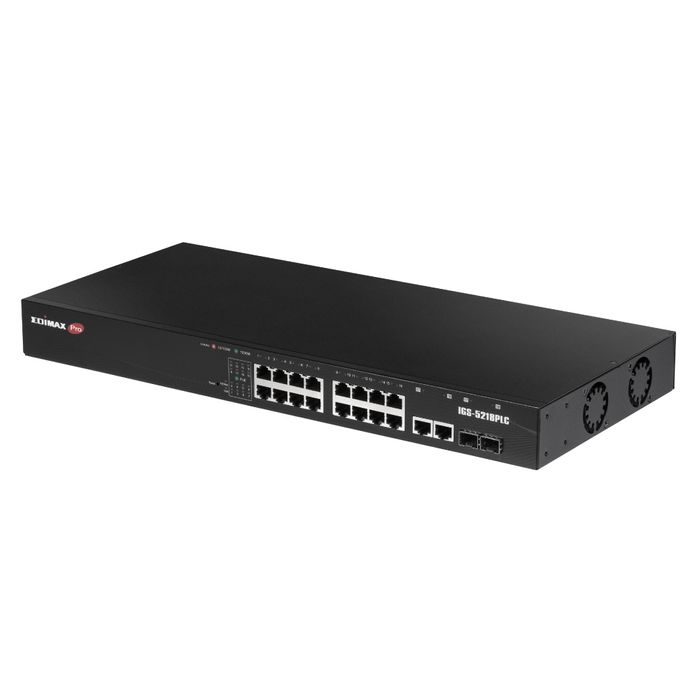

EDIMAX Industrial Surveillance VLAN 16-Port Gigabit PoE+ Web Smart Switch w/ 2 Gigabit RJ45 & SFP Combo Ports
Product Overview
Industrial Surveillance VLAN 18-Port Gigabit PoE+ Web Smart Switch with 2 Gigabit RJ45/SFP Combo Ports
- 16 Gigabit Ethernet PoE+ ports and 2 Gigabit RJ45/SFP combo ports
- Wide operating temperature range of -20° ~+65° C (-4° ~+149° F) for industrial or extreme environments
- Dual PoE power budget supplies up to 360W in classic mode and 200W in industrial mode (default)
- One-click to create Surveillance VLAN and auto-discover, auto-enrolled devices all at once
- PoE powered devices (PD) alive check to enhance the reliability of the network
- Dual-firmware image for robust failover mechanisms
- Guaranteed PoE long distance to 200 meters
- Power backfeed protection to avoid damaging the PoE ports
- IP Surveillance VLAN and Voice VLAN to enhance video and voice quality
- DHCP snooping to protect the integrity of the legitimate DHCP server and its operations
- IEEE 802.3af/at PoE compliant, up to 30W per port (total power budget: 360W or 200W) for powering PoE-enabled devices
- Supports SNMP v1/v2c/v3, Access Control List (ACL), QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP v1/v2/v3 Snooping and etc.
- Supports 36Gbps backplane bandwidth, 26.7Mpps forwarding rate, 8K MAC address table and 9KB jumbo frame
Cost-effective PoE Solution
Offering high-speed network connection with the power supply to Powered Devices (PDs) for cost saving of power line deployment.
Further Network Connection
The long-range mode provides extended power and data delivery distance to 200 meters (656 ft.) at 10Mbps full-duplex operation on a per-port basis.
Safeguard Your Devices
Each port is equipped with power backfeed protection in order to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) is connected.
Stable and Reliable Network
The switch has two firmware stores. The additional backup firmware can be activated while the main firmware goes under restoration, reducing system downtime.
