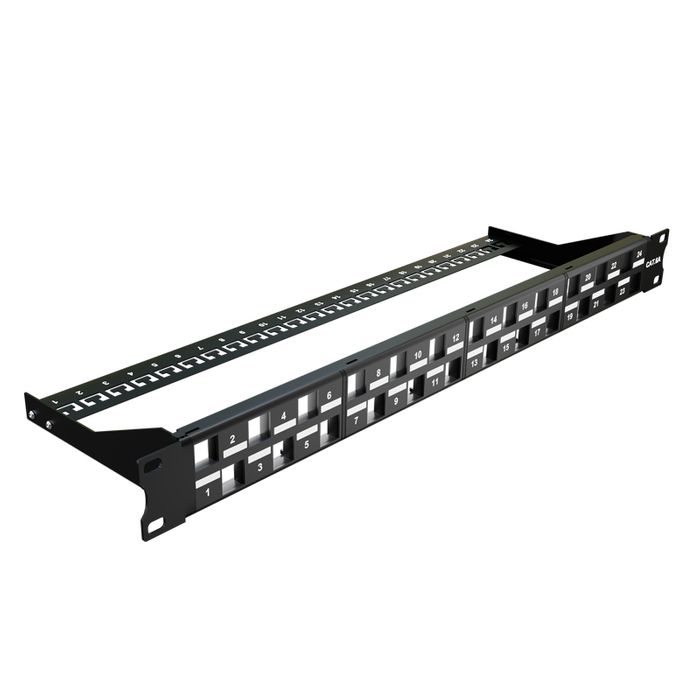

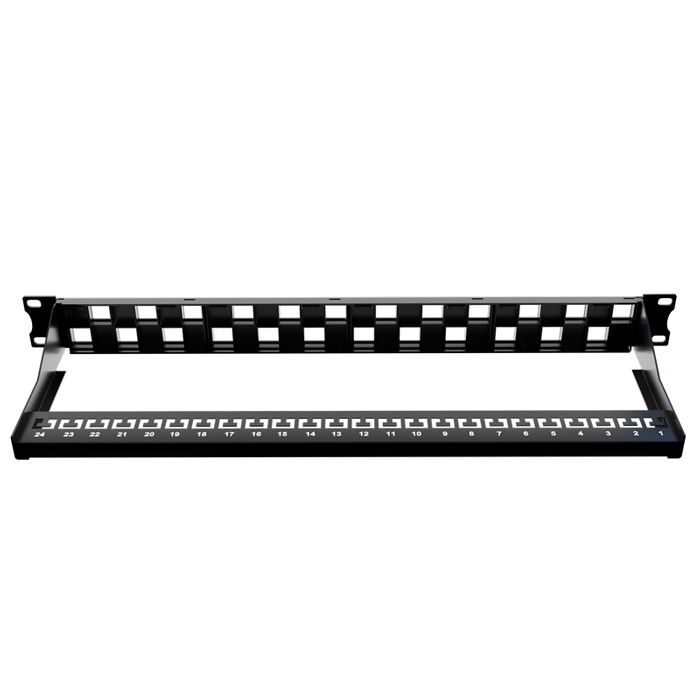

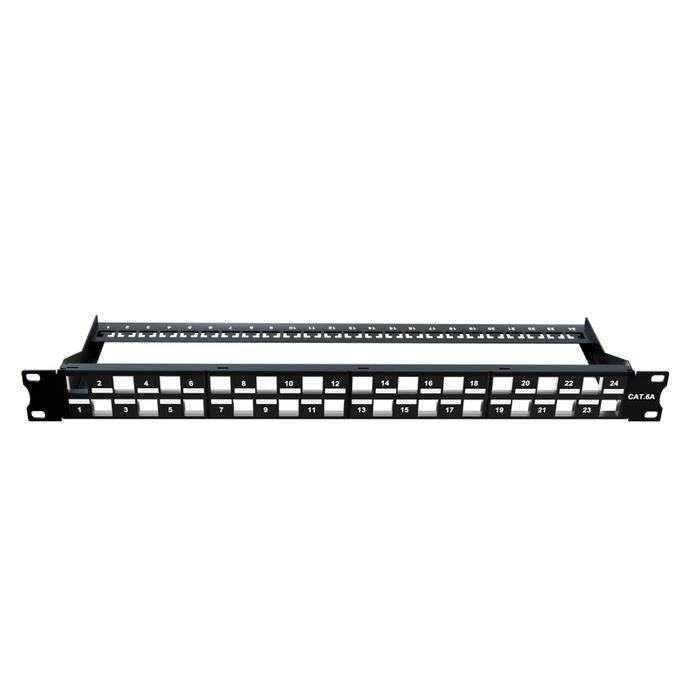

CERTECH 1RU 19" 24 Port Unloaded Staggered Patch Panel, with Rear Support Bar
Stock Code:
PP24UK-STG
PP24UK-STG
CERTECH 1RU 19" 24 Port Unloaded Staggered Patch Panel, with Rear Support Bar
Product Details
-
Colour:Black
-
Material:SPCC quality cold rolled steel support bar & rear panel, ABS-HB Frame Patch Panel, ABS+PC, UL94V-0 Housing
-
Surface Finish:Powder Coated
-
Warranty:Standard 5-years limited product warranty
-
Product Width:482.6mm
-
Product Depth:150mm
-
Product Height:44mm
Product Overview
CERTECH 1RU 19" 24 Port Unloaded UTP Patch Panel with staggered outlet design to improve AXT performance, inlcudes snap in Rear Support Bar.
Features
- Extensive AXT (Alien Cross Talk) suppression through staggered port design
- ETL verified ANSI/568.2-D Cat6A component & 4-connector channel including AXT tested with the CERTECH Cat6A UTP keystone jack
- Snap-in support bar for rear cable management
Material Specifications
- Panel: 1.5mm SPCC, coated black
- Support bar: 1.5mm SPCC, coated black
- Bracket: ABS, UL94V-0
Additional Information
- Installation Temp: 0 to 50 degrees celcius
- Storage Temp: -40 to 70 degrees celcius
- Operating Temp: -10 to 60 degrees celcius
- Accepts CERTECH keystone jacks
- Dimensions: 482.6 (W) x 150 (D) x 43.5 (H)
- Eligible certified warranty: CERTECH 25-year System Performance Warranty where all certification conditions are met and products form part of an end-to-end solution.
