SCA-SCA OS2 (G657A1) Duplex Fibre Lead, Yellow LSZH Jacket - 30m
Product Details
-
Product Type:Fibre Optics-Patch Leads
-
Colour:Yellow
-
Material:LSZH Jacket
-
Warranty:Standard 2-years limited product warranty against defects in material and workmanship. Eligible certified warranty: CERTECH 25-year System Performance Warranty where all certification conditions are met and products form part of an end-to-end solution.
Product Overview

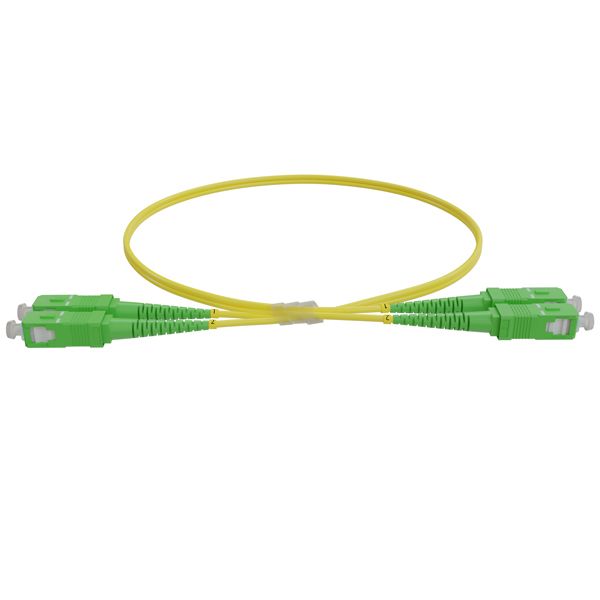

The CERTECH SC/APC to SC/APC OS2 Duplex Fibre Lead provides a dependable patching solution for singlemode fibre optic networks. Designed for use in structured cabling systems, FTTP installations, data cabinets, communication rooms and optical backbone links, this duplex fibre lead supports efficient transmit and receive connectivity within a single cable assembly.
Constructed from OS2 9/125 G.657.A1 bend-insensitive fibre, the lead is engineered to maintain stable optical performance while allowing flexible routing in high-density indoor environments. Its 2.0mm tight-buffered duplex construction includes 900um buffered fibres and aramid yarn reinforcement, helping provide strength, flexibility and installation reliability.
The SC/APC to SC/APC connector configuration delivers consistent end-face geometry for low insertion loss and high return loss, making the lead suitable for applications where reliable optical performance is essential. The LSZH outer sheath supports safer indoor installation by reducing smoke and halogen emissions in the event of fire.
Every CERTECH OS2 duplex fibre lead is 100% individually factory tested, helping ensure consistent quality, performance assurance and long-term reliability.
Key Features
- SC/APC to SC/APC OS2 duplex fibre lead
- Singlemode OS2 9/125 G.657.A1 bend-insensitive fibre
- Designed for FTTP, structured cabling and network backbone applications
- Duplex construction supports transmit and receive channels

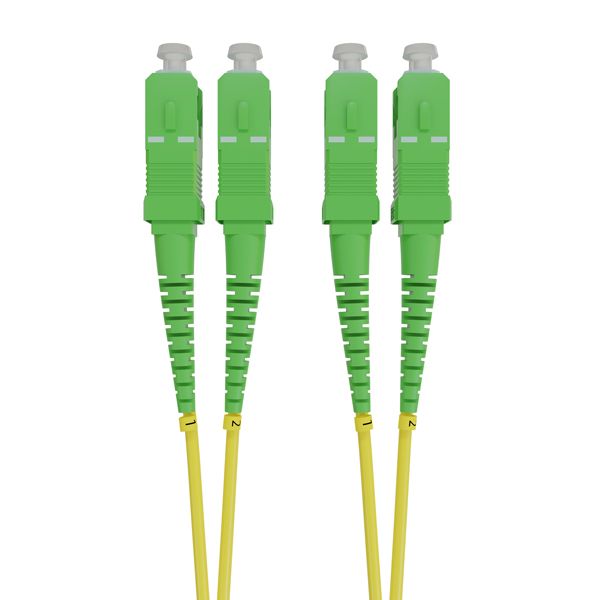

- Precision SC/APC connectors for reliable optical mating performance
- 2.0mm tight-buffered cable for flexible, high-density routing
- 900um buffered fibres with aramid yarn strength members
- LSZH sheath for improved indoor occupancy safety
- Low attenuation for stable optical performance across network links
- Optimised for O-E-S-C-L band transmission from 1260-1625nm
- 100% individually factory tested for performance assurance
- APCO Certified Recyclable Packaging
Applications
The CERTECH SC/APC to SC/APC OS2 Duplex Fibre Lead is suitable for:
- FTTP fibre installations
- Structured cabling systems
- Singlemode fibre optic patching
- Communications rooms
- Server cabinets and data cabinets
- Fibre cross-connects
- Optical distribution frames
- Network backbone links
- High-density indoor fibre routing
- Commercial and enterprise network infrastructure
Standards and Compliance
CERTECH OS2 SC/APC duplex fibre leads are designed with reference to relevant Australian and international fibre cabling standards, including:
- AS/CA S008 Australian Manufacturing Requirements
- AS/CA S009 Installation Requirements for Customer Cabling
- AS 11801 Series Australian Performance Standard
- AS/NZS 14763.3 Australian Fibre Testing Standard
- IEC 61754 Series Fibre Connector Interface Geometry
- IEC 61300 Series Fibre Connector Performance Testing
- IEC 61753 Fibre Component Performance Standard
- ITU-T G.652.D Singlemode Fibre Manufacturing Performance
- ITU-T G.657.A1 Bend Insensitive Fibre Standard
