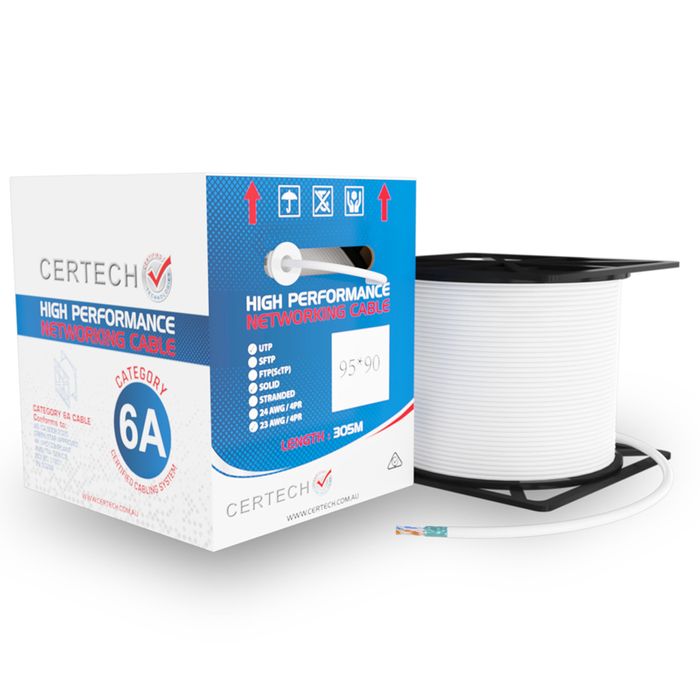

CERTECH 305M Cat6A 10G F/UTP Solid Cable, White LSZH Jacket

Stock Code:
NCC6AFUTPWHITE
Height:
380mm
Width:
320mm
Depth:
380mm
NCC6AFUTPWHITE
CERTECH 305M Cat6A 10G F/UTP Solid Cable, White LSZH Jacket

Product Details

  • Product Type:
    Network & Data Cable - Cat6A F/UTP (Indoor)
  • Colour:
    White
  • Material:
    LSZH Jacket
  • Product Width:
    320mm
  • Product Depth:
    380mm
  • Product Height:
    380mm
  • Operating Frequency:
    500MHz
  • Weight:
    16kg / 305m

Product Overview

305m Cat6A Blue F/UTP Solid Cable Roll 500MHz

100% Bare Copper Cable

23AWGx4P

LSZH Jacket

AS/CA S008:2010 Approved

4K UHD Ready





Specifications

Cable Type: F/UTP

Jacket Material: LSZH

Conductor Material: Bare Copper Cable

Insulation Material: HDPE

Cable Length: 305m

Cable Weight: 16kg/305m

Cable Diamater: 0.57

Cable Gauge: 23AWG

Jacket Thickness: 0.55±0.05mm

DC Resistance Unbalanced (Max.): in pair ≤2.0%, pair to pair≤4.0%

DC Resistance (Max.): ≤9.38Ω/100m

Dielectric Strength (Max.): DC 1000V 1min No Breakdown

Mutual Capacitance at Frequency: ≤5.8nF/100m

NVP: 69%

Operating Frequency: 500MHz

Flame Test Method: IEC60332-1-2

Installation Temperature: -10 ~ +50 degrees celcius

Operating Temperature: -20 ~ +75 degrees celcius

Packaging: Reel in Box
