Cat6A FTP Field Termination Plug, Snap-in Boot
Product Details
-
Colour:Silver
-
Material:Thermal Plastic UL94V-0 housing
-
Warranty:5-years limited product warranty
-
Product Width:63mm
-
Product Depth:14mm
-
Product Height:18.4mm
Product Overview

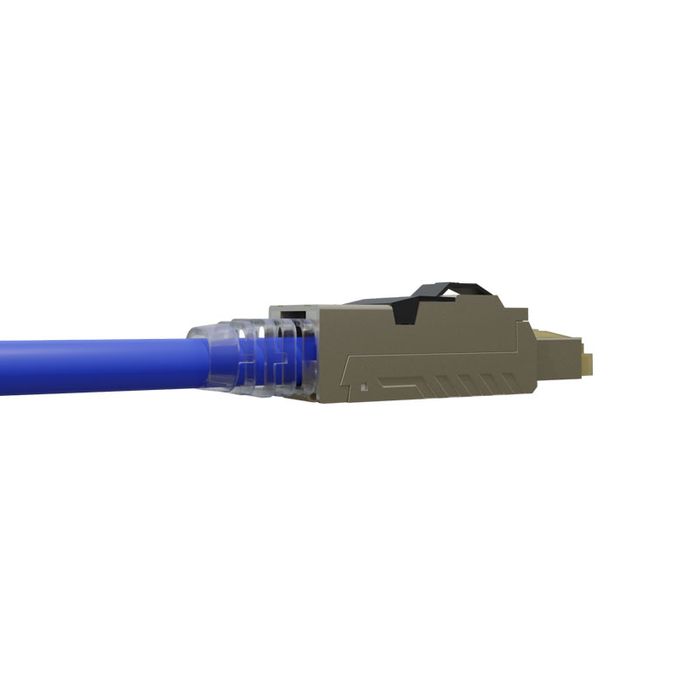

The CERTECH Cat6A FTP Field Termination Plug with Snap-in Boot provides a practical, on-site solution for terminating shielded Cat6A data cable directly to an RJ45 plug. Designed for solid or stranded conductors, it is ideal where pre-terminated patch leads are impractical or where cable lengths need to be tailored during installation.

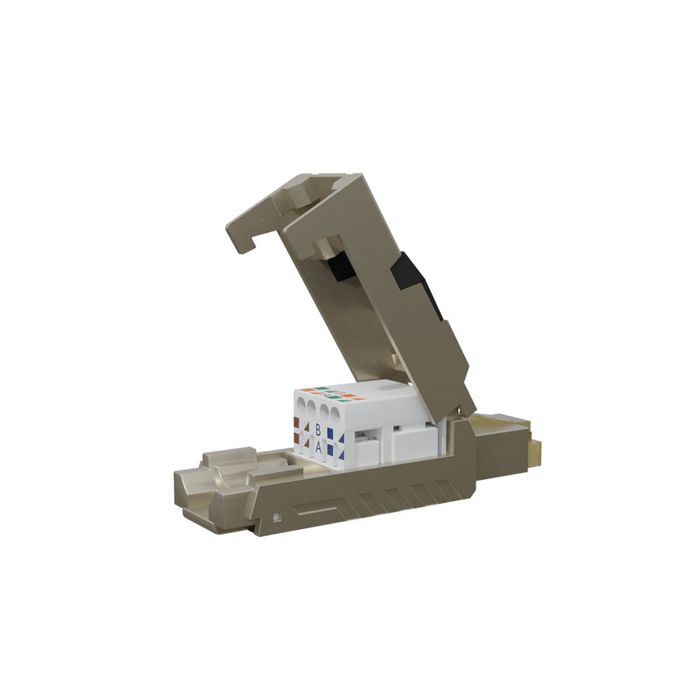

Its zinc die-cast, nickel-plated housing and integrated grounding contact support a screened connection for FTP cabling, while the snap-in boot provides cable support and a neat, robust finished termination. Supplied with a clear installation guide, the plug supports both T568A and T568B wiring configurations.
Suitable for field-made patch leads, equipment connections, CCTV, wireless access points, IP devices and other Cat6A shielded network applications.
Key Features

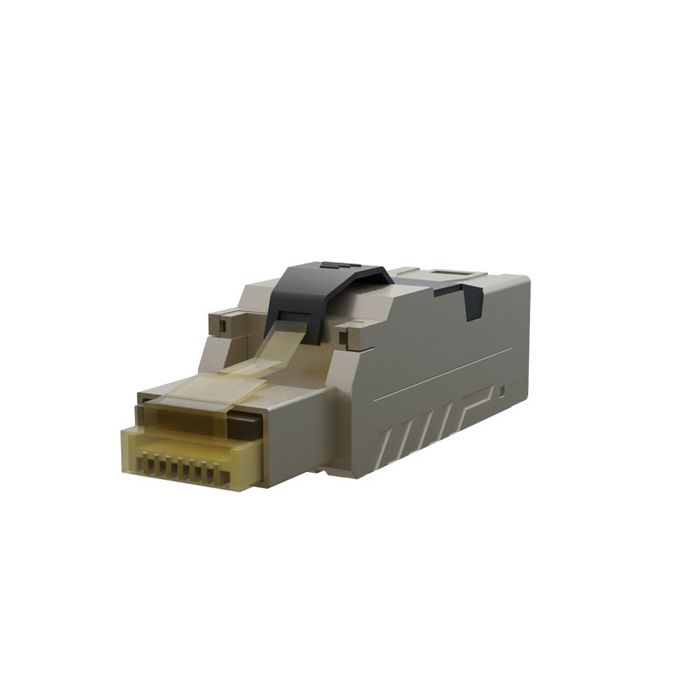

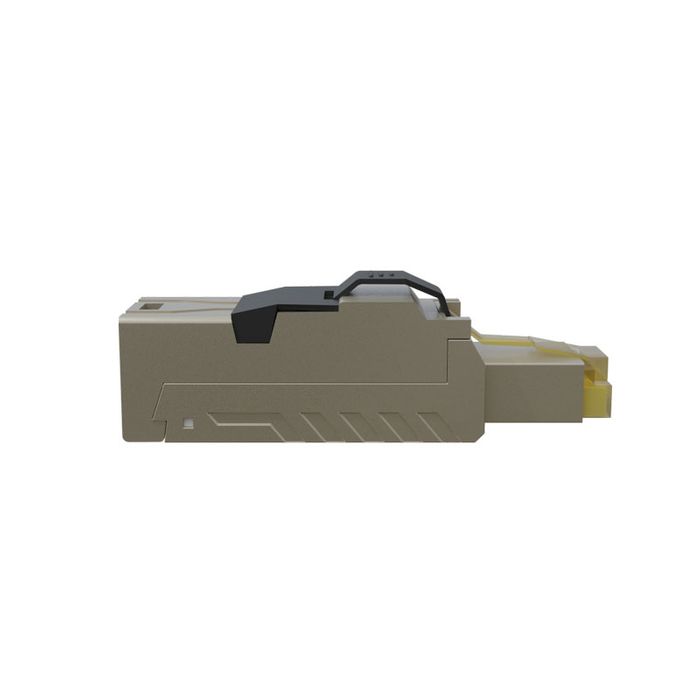

- Cat6A FTP field termination RJ45 plug
- Designed for screened Cat6A cabling installations

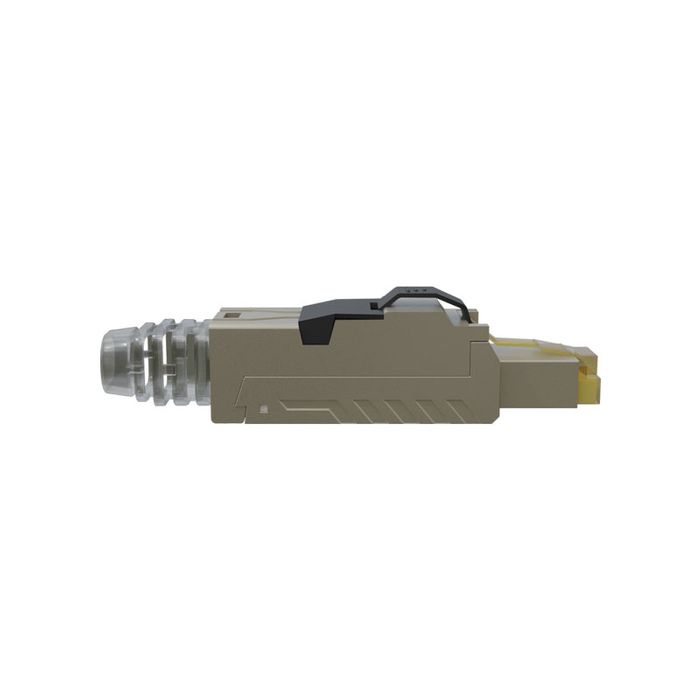

- Snap-in strain-relief boot for a secure, professional finish
- Zinc die-cast, nickel-plated housing and cover
- Integrated grounding contact and copper foil tape for shield continuity
- Supports T568A and T568B wiring schemes
- Suitable for 23-26 AWG solid and stranded conductors
- Suitable for cable jacket diameters from 6.0 to 8.5 mm
- Minimum 50 micro-inch gold-plated contact area
- Supplied individually with a field termination user guide
- Optional crimping tool may be used to assist final assembly
- RoHS, REACH and TSCA compliant
Applications
- Custom-length Cat6A FTP patch leads
- Field termination of shielded horizontal cabling
- Wireless access points and IP surveillance devices
- Network switches, routers and active equipment
- Commercial, education, industrial and enterprise network installations
Technical Specifications
Specification | Details |
Product type | Cat6A FTP field termination plug |
Connector | 8P8C RJ45 |
Wiring schemes | T568A and T568B |
Conductor type | Solid or stranded |
Conductor size | 23-26 AWG |
Cable jacket OD | 6.0-8.5 mm |
Contact finish | Minimum 50 micro-inch gold plated in contact area |
Housing material | Zinc die-cast, nickel plated |
IDC terminal material | Tin-plated titanium copper |
Boot material | PC, UL94 V-2 |
Insertion force | Maximum 30 N |
Retention strength | 7.7 kg between jack and plug |
Operating temperature | -10°C to +60°C |
Mating life | Minimum 750 cycles |
IDC re-termination life | Minimum 20 installations |
