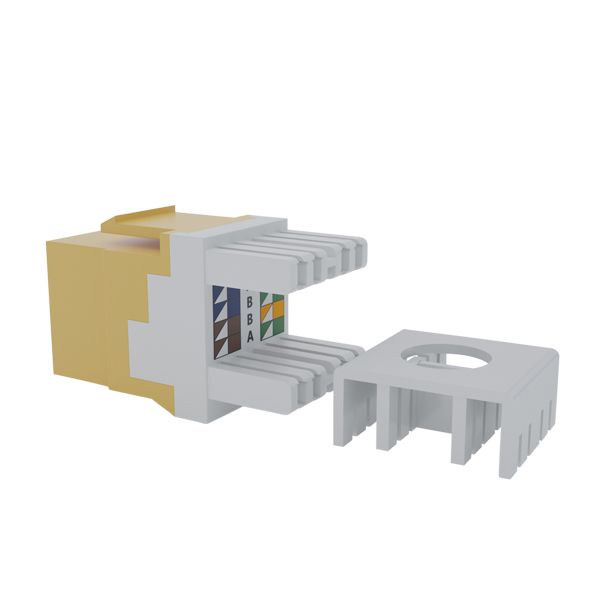

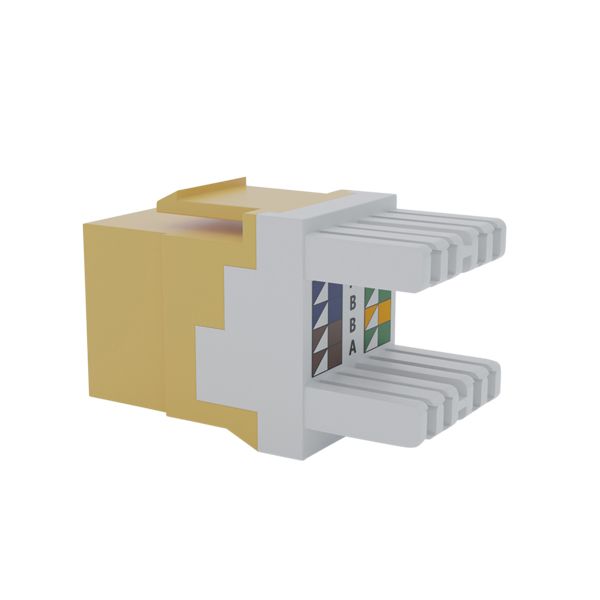

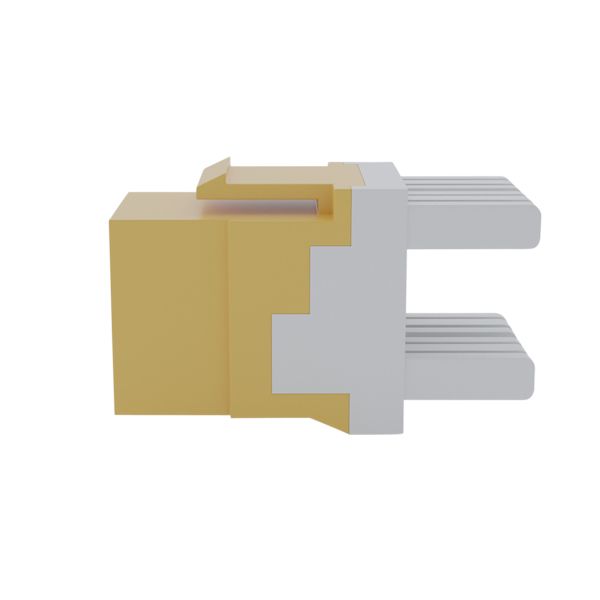

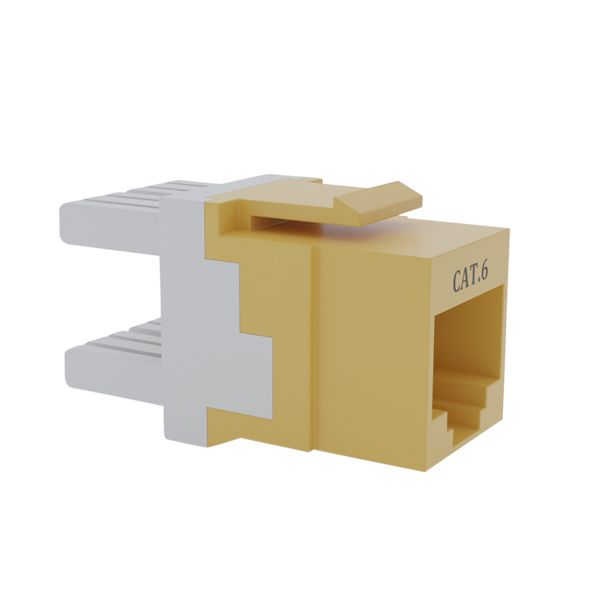

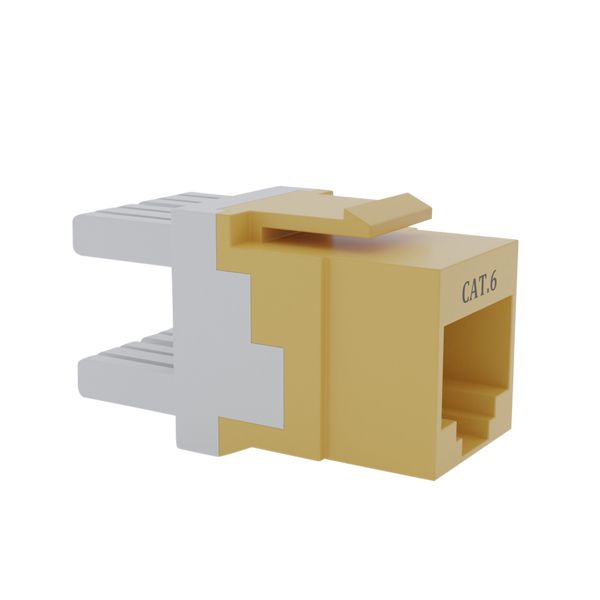

Cat6 RJ-45 UTP Keystone Jack. Yellow, 180 degrees, 12pc Pack

Stock Code:
JKC6YL12
JKC6YL12
Cat6 RJ-45 UTP Keystone Jack. Yellow, 180 degrees, 12pc Pack

Product Details

  • Colour:
    Yellow

Product Overview

CERTECH Cat6 RJ-45 Keystone Jack, 12pc Pack
180 Degree Termination
Colour: Yellow
Recommended for use with RJ45 plugs only

FEATURES:

Dual IDC connector can accept 23-26 AWG solid and stranded cables
Supports both T568 A&B wiring
Performance conforms to ANSI/TIA-568-C.2, ISO/IEC 11801 and EN50173-1 Category 6 specification
RoHS compliant

APPLICATIONS:

10Base-T/100Base-Tx
100Base-T4/1000Base-Tx
ATM-25/ATM-51/ATM-155
100VG-AnyLan
TR-4/TR-16 Active/TR16 Passive

ELECTRICAL SPECS:

Dielectric Strength : 1000V RMS for 1min
Insulation Resistance : 10 M min
Contact Resistance : 2 m per contact
Temperature Range : 10 to 60 max
Humidity : 10%-65%

PHYSICAL SPECS:

High impact plastic housing, Flame retardant UL 94V-0
IDC Contact : 100 inch nickel plated over phosphor bronze
IDC Operating life : Minimum 250 Re-terminations
Jack Contact : Phosphor bronze, 50 inch gold plating over nickel plating in contact area
Jack Operating life : Minimum 750 insertions
PCB : FR-4, 1.6mm thickness
