1 x 8 HDMI Extender Splitter over Cat6 to 120 Metres, 1080p

Stock Code:
HDMIEXTSP1-8V4
HDMIEXTSP1-8V4
1 x 8 HDMI Extender Splitter over Cat6 to 120 Metres, 1080p

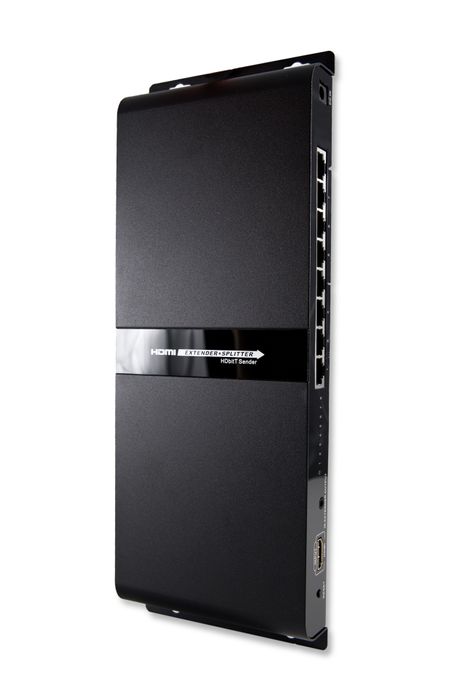

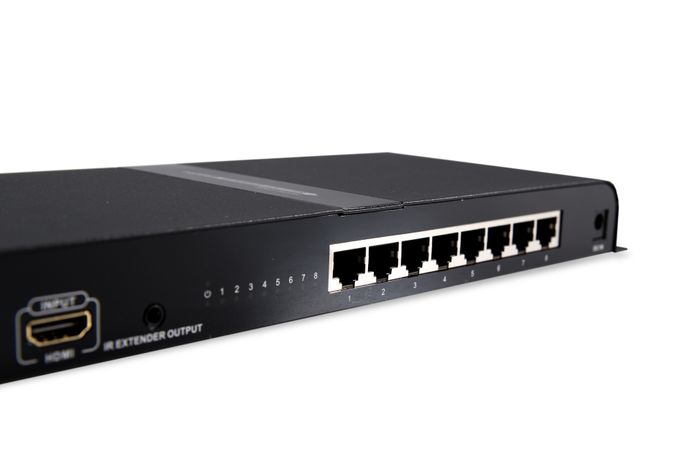

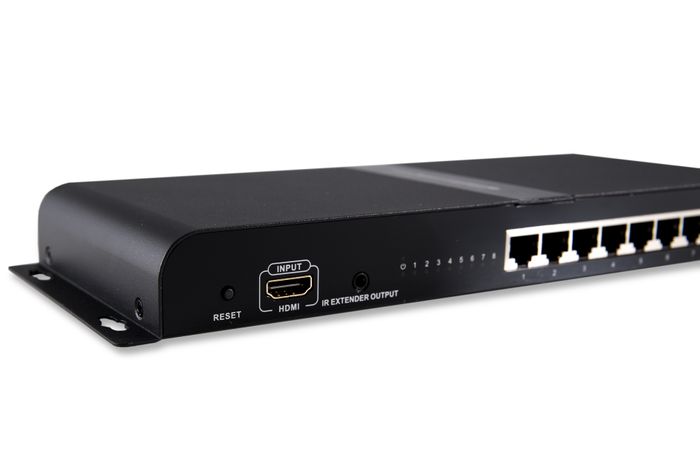

Product Overview

The HDMIEXTSP1-4V4 combines the extender & splitter function to split 1 HDMI signal to 8 identical signals via network cable and it is used as a sender to work with 8 receivers to transmit these 8 HDMI signals up to 120 metres.



Features

  • 1080P@60Hz
  • Low latency
  • 120m transmission
  • 1 in 4 out (HDMIEXTSP1-4V4) / 1 in 8 out (HDMIEXTSP1-8V4)
  • IR Passback (20-60kHz)
  • Plug & play
  • Lightning, surge & ESD protection



Low Latency

Low transmission delay & better compatibility with display sources, signal sources & transmission cables.

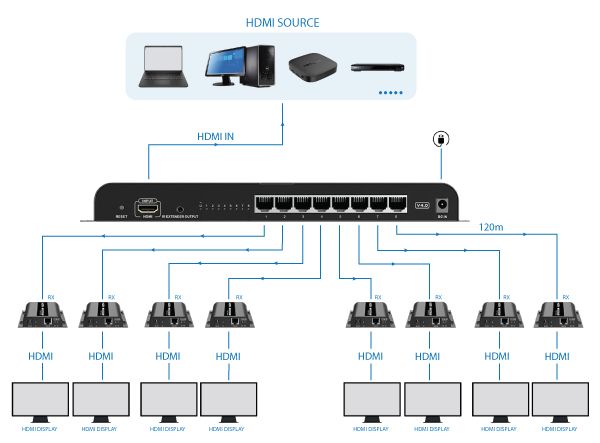

Splitting Function

Distribute 1 HDMI source to 4 or 8 displays over network cables simultaneously, and the longest transmission distance can reach up to 120m.



IR Passback

The receiveing end can return 20-60KHz frequency infrared radio signals to the transmitting end, and the remote control of the signal source device can be used to remotely switch the contents, the devices & other operations.



Protection

ESD protection, surge protection & lightning protection making the product safer & more reliable.



Applications

  • Multimedia classrooms
  • Confernece centres
  • Pubs & clubs
  • TV stores
  • Restaurants



HDMIEXTSP1-8V4
