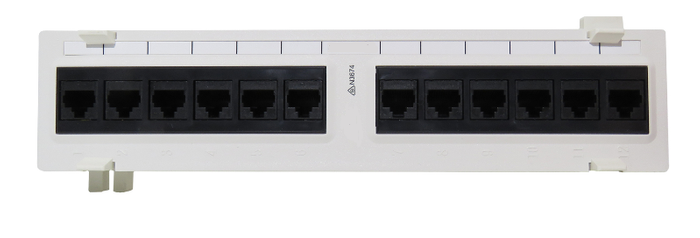

Mini 12 Port Surface Mount Patch Panel, Cat6 Rated
Stock Code:
PPMINI12C6B
PPMINI12C6B
Mini 12 Port Surface Mount Patch Panel, Cat6 Rated
Product Details
-
Colour:White
-
Material:Fireproof ABS UL-94V0
-
Inclusions:4x Cage Nuts
-
Warranty:Standard 5-years limited product warranty
-
Product Width:254mm
-
Product Depth:41.1mm
-
Product Height:57.5mm
Product Overview
Mini 12 Port Surface Mount Patch Panel, Cat6 Rated
| Performance | Meets Cat.6 EIA/TIA 568B.2-1 Standard |
| Material | |
| Plastic Body | Fireproof ABS UL-94V0 |
| RJ-45 Jack | Housing-PBT 8P8C 50 micro inches gold plated |
| PCB | FR-4 / 1.6mm UL-94-V0 |
| IDB Body | Fireproof ABS UL-94V0 |
| IDC Pin | Bronze & Tinned |
| Label Colour Code | T568A |
| IDC Description | 22-26AWG; 110 & Krone Compatible |
| Electrical Specifications | |
| Insulation Resistance | 500m ohms (min.) |
| Contact Resistance | 20m ohms (max.) |
| Current Rating | 1.5 Amps |
| DC Resistance | 0.1 ohm (max.) |
| Wisthstanding Voltage | 1000 VAC RMS @ 60Hz / 1min |
| Mechanical Specifications | |
| IDC Punch Down Cycle | Over 250 cycles (min.) |
| RJ-45 Jack Insertion Cycle | Over 2000 cycles (min.) |
| Operation Temperature | -40~+70°C |
