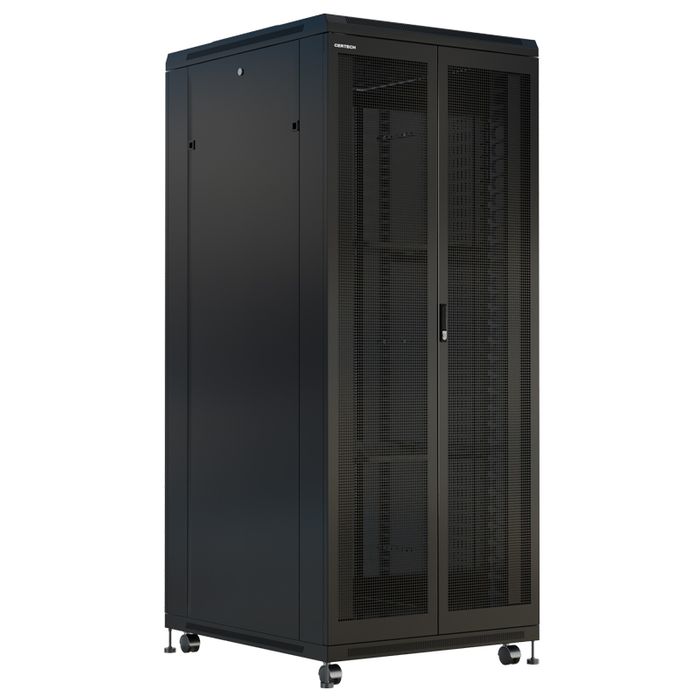

CERTECH 37RU 800 (W) x 800 (D) Premier Series Server Rack
Rack Type:NSR Premier Series
Static Loading Capacity:800kgs
Colour:Black (RAL 9005) powder coated paint
Material:SPCC quality cold rolled steel, gloss black colour, easy clean surface
Mounting Profile Thickness:2.0mm
Mounting Angle Thickness:1.5mm
Surface Finish:Degrease, acid pickling, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting
Mounting Hole Type:Square
Door Style:Bi-fold front & rear perforated steel, honeycomb style
Side Panels:Single piece, lockable & removable
Inclusions:4 x fans, 3 x shelves, 25 x cage nuts, 1 x horizontal 6 outlet PDU, 4 x castor wheels & levelling feet
Cable Management:Dual 100mm front vertical cable management ducts, with magnetic close protective cover & 2 x 300mm wide vertical cable trays
Security:Keyed alike doors & side panels
Warranty (Rack):2-year warranty. Subject to use within the static loading specifications and operation within normal environmental conditions
Warranty (Fans):1-year warranty
Compliance:IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491-1, DIN41494-7, GB/T3047.2-92
CERTECH Premier Series 800mm wide racks are the ideal rack for installations requiring a high-density cable management solution. All racks are manufactured to universal 19? standards, providing the ability of use with universal 19? equipment from vendors worldwide. All racks are constructed from high quality cold rolled steel & are shipped fully assembled for quick deployment. CERTECH racks are covered by a 2-year warranty, subject to use within the static loading specifications and operation within normal environmental conditions.

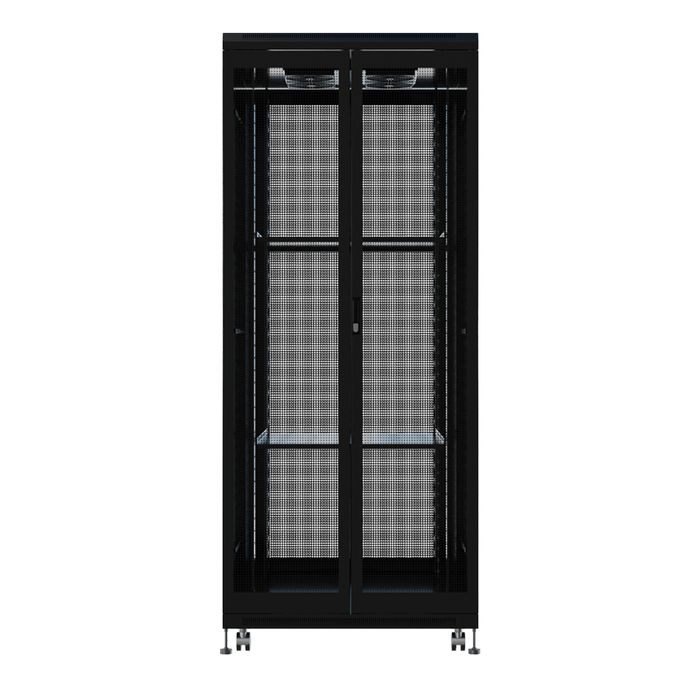

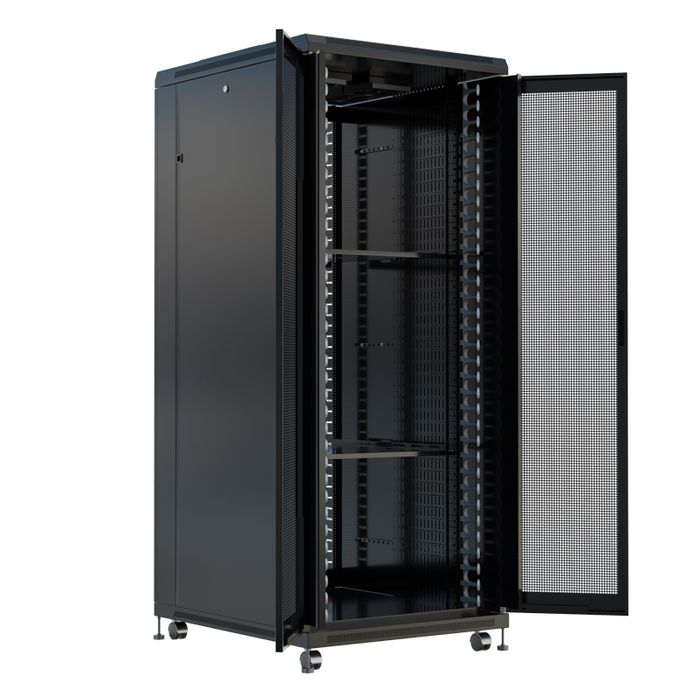

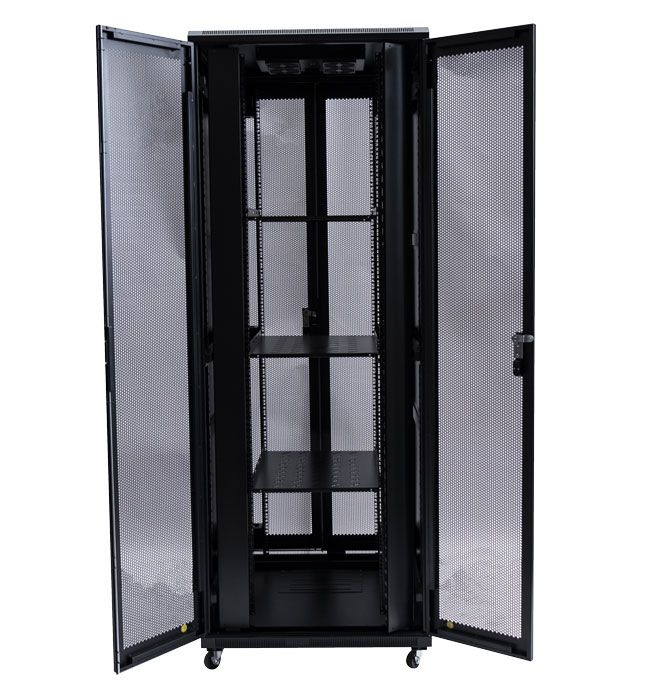

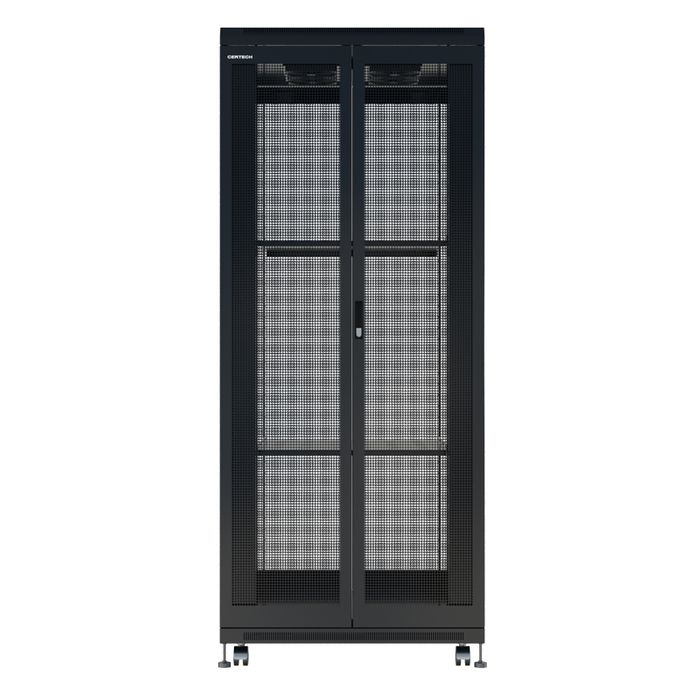

Perforated Front & Rear Split Doors
Perforated front and rear doors provide ventilation for servers and networking equipment. Both doors being split, reduces the need to have 800mm of space to open the door completely.

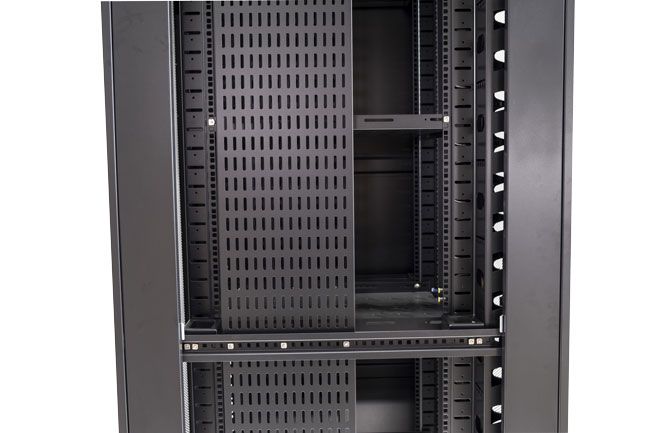

Fitted to a drop-down tray, allowing for easy access and maintenance, without having to remove any equipment inside the rack.
Large cable access glands in the roof & base of the rack, provide access for overhead & underneath run cables.
Rack Mounting Compatibility
All racks are compatible with all EIA-310 compliant 19? equipment.
Vertical Mounting Rails
Vertical mounting rails can be adjusted back and forth to suit various sizes of equipment. Rack units are numbered front and back for easy equipment installation.

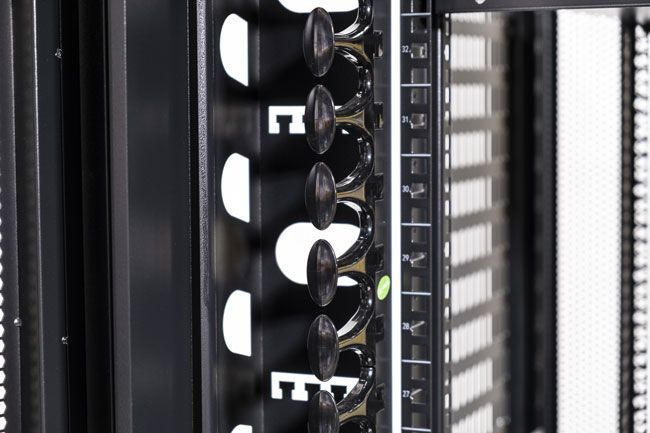

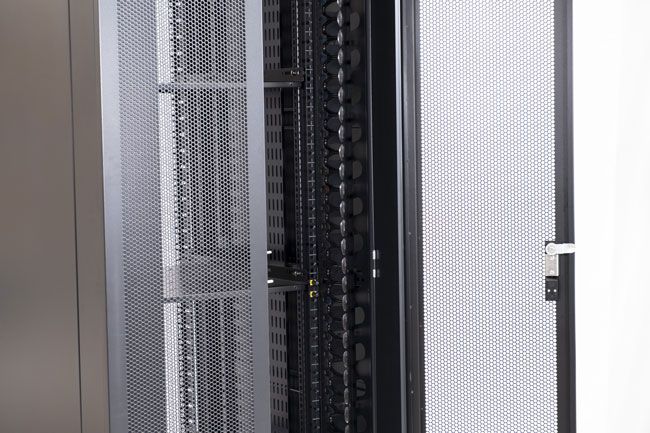

Vertical Cable Management Ducts
Dual vertical cable management ducts with magnetic snap close covers, are pre-installed into every 800mm wide rack, making them the ideal rack for high-density cable installations.
Using our simple 4pc baying kit, racks are easily adjoined side by side.
Multiple earthing points & wires are fitted throughout the rack, on the roof, base, side panels & doors.
