1 x 8 HDMI PoE Extender Splitter over Cat6 to 40m, 1080p
Product Overview
CERTECH 1 x 8 HDMI PoE Splitter Extender, including 8 receivers, 40 Metres

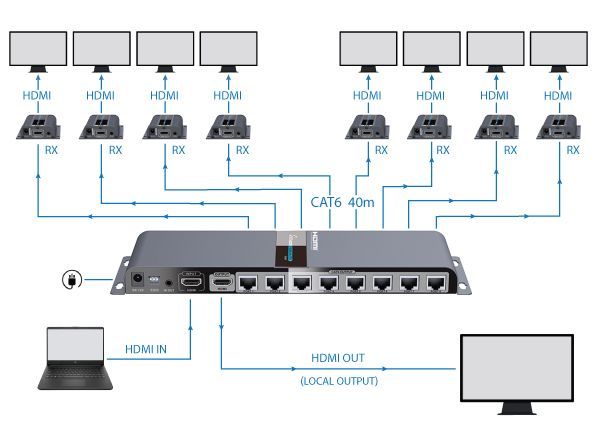

This HDMI extender splitter works with 8 HDMI CAT6 extender receivers to distribute and extend 1 HDMI source to 8 HDMI displays over single CAT6/6A cable up to 40m/131ft.
The highest resolution supported is 1920x1080@60Hz, and it supports IR passback, EDID pass through.
Only one power adapter for the transmitter is needed, as the receivers are PoE enabled.
Ideal solution for HDMI exhibition, video conference and show center, etc.
Features:
Plug and play
Supports 20~60KHz IR pass back
Supports EDID Setting function
Supports one HDMI Loop-out
Wall-mounted function, easy installation
Compatible with CAT6/6A network cables
Transmission extends up to 40m.
The highest resolution supported is 1920x1080@60Hz
Poe Enabled

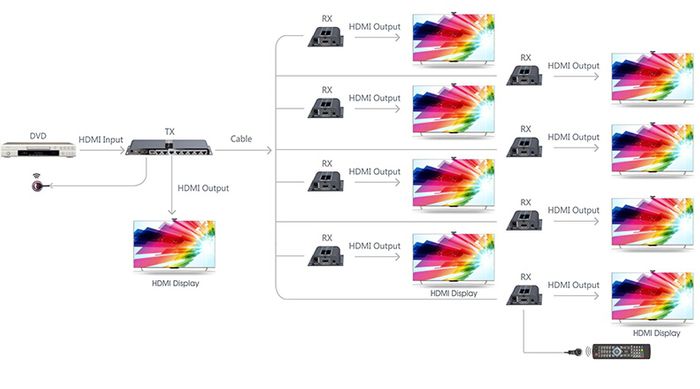

Distribute 1 HDMI source to 8 HDMI displays over network cable simultaneously
| Specifications | |
| HDMI Signal | HDMI1.3, Compatible with HDCP1.2 |
| Input | 1 x HDMI |
| Output | 8 x HDMI |
| Supported Resolutions | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
| Transmission Distance | Full HD resolution 1080p@60Hz up to 40 metres |
| IR Signal | Supports 20~60kHz IR device |
| EDID | Supports EDID manual setting function |
| Operating Temperature | 0-60 Degrees Celcius |
| Power Supply | DC12V/3A |
| Power Consumption | <24W |
| Transmitter Dimensions & Weight | 276 (L) x 95.98 (W) x 23 (H) mm @ 620 grams |
| Receiver Dimensions & Weight | 71.6 (L) x 66.6 (W) x 22.6 (H) mm @ 80 grams |
| Colour | Black |
