Stock Code:
NSR456X8

CERTECH 45RU 600 (W) x 800 (D) Premier Series Server Rack

Rack Type:
NSR Premier Series
Height:
2205mm
Width:
600mm
Depth:
800mm
Static Loading Capacity:
800kgs
NSR456X8
CERTECH 45RU 600 (W) x 800 (D) Premier Series Server Rack

Product Details

  • Rack Type:
    NSR Premier Series
  • Static Loading Capacity:
    800kgs
  • Colour:
    Black (RAL 9005) powder coated paint
  • Material:
    SPCC quality cold rolled steel, gloss black colour, easy clean surface
  • Mounting Profile Thickness:
    2.0mm
  • Mounting Angle Thickness:
    1.5mm
  • Surface Finish:
    Degrease, acid pickling, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting
  • Mounting Hole Type:
    Square
  • Door Style:
    Australian approved toughened glass front door. Rear perforated steel, honeycomb style
  • Side Panels:
    Single piece, lockable & removable
  • Inclusions:
    4 x fans, 3 x shelves, 25 x cage nuts, 1 x horizontal 6 outlet PDU, 4 x castor wheels & levelling feet
  • Security:
    Keyed alike doors & side panels
  • Assembly:
    Supplied complete
  • Warranty (Rack):
    2-year warranty. Subject to use within the static loading specifications and operation within normal environmental conditions
  • Warranty (Fans):
    1-year warranty
  • Compliance:
    IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491-1, DIN41494-7, GB/T3047.2-92

Product Overview

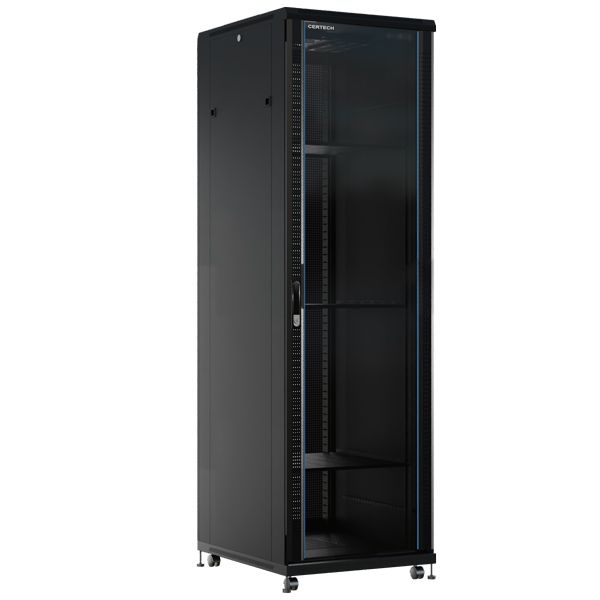

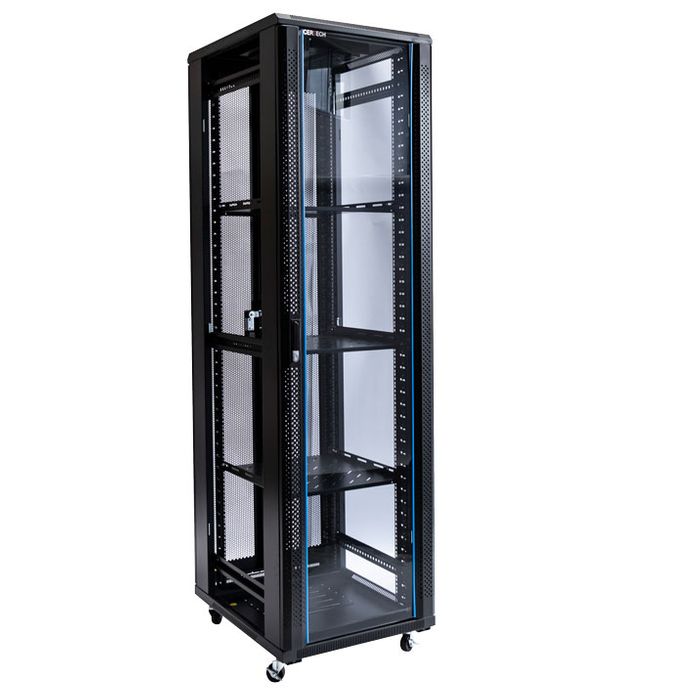

CERTECH Premier Series 600mm wide racks are the ideal rack for any type of installation. All racks are manufactured around universal 19” standards, providing the ability to use our racks with universal 19” equipment from vendors worldwide. All racks are constructed from high quality cold rolled steel & are shipped fully assembled for quick deployment. CERTEH racks are covered by a 2-year warranty, subject to use within the static loading specifications and operation within normal environmental conditions.

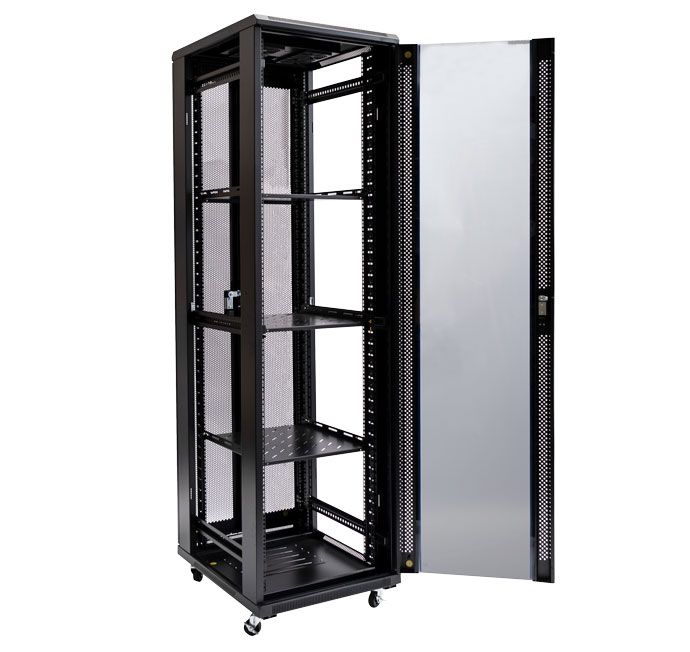

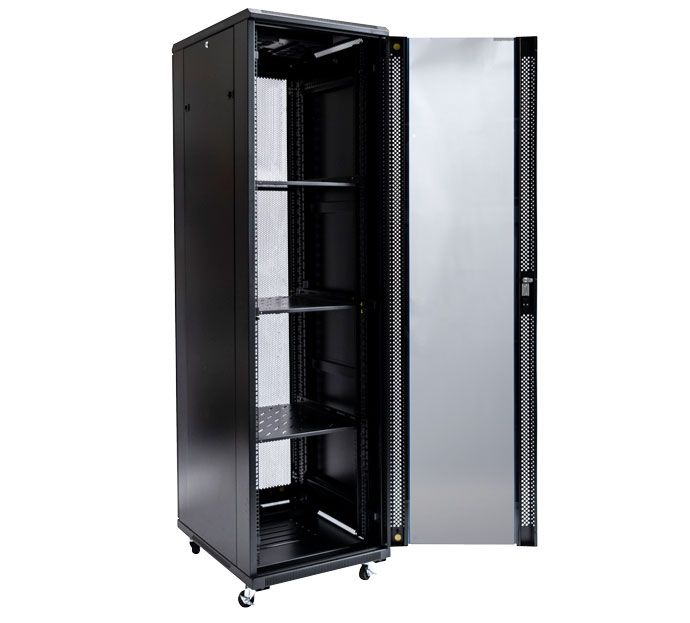

• Front Glass Door
Australian Approved lockable toughened glass front door.

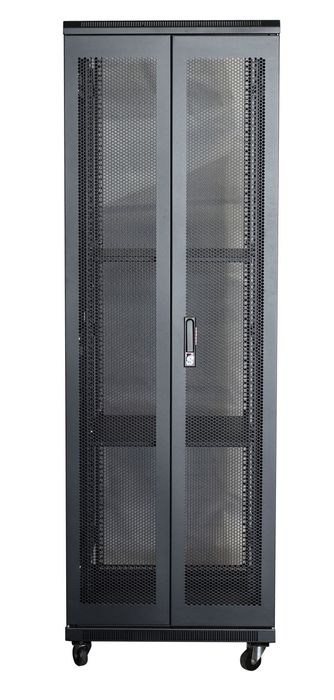

• Perforated Rear Split Doors
Perforated rear doors provide ventilation for servers and networking equipment. Both doors being split, reduces the need to have 800mm of space to open the door completely.

• Fans
Fitted to a drop-down tray, allowing for easy access and maintenance, without having to remove any equipment inside the rack.

• Cable Entry
Large cable access glands in the roof & base of the rack, provide access for overhead & underneath run cables.

• Rack Mounting Compatibility
All racks are compatible with all EIA-310 compliant 19″ equipment.

• Vertical Mounting Rails
Vertical mounting rails can be adjusted back and forth to suit various sizes of equipment. Rack units are numbered front and back for easy equipment installation.

• Adjoining Racks
Using our simple 4pc baying kit, racks are easily adjoined side by side.

• Integrated Earthing
Multiple earthing points & wires are fitted throughout the rack, on the roof, base, side panels & doors.
