Platinum Tools LanSeeker Cable Tester

Stock Code:
TP500C
TP500C

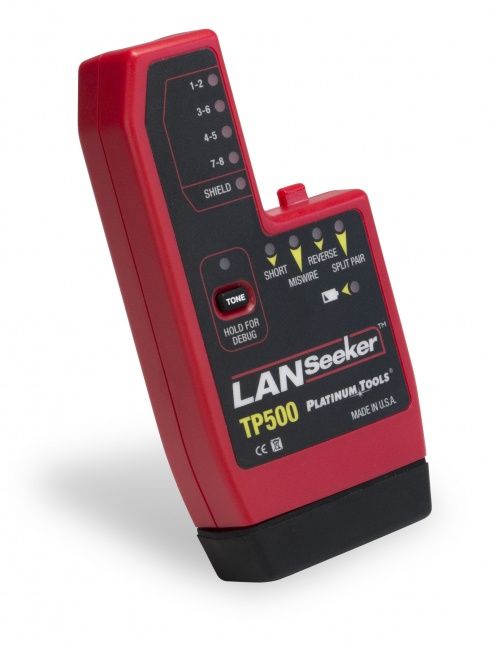

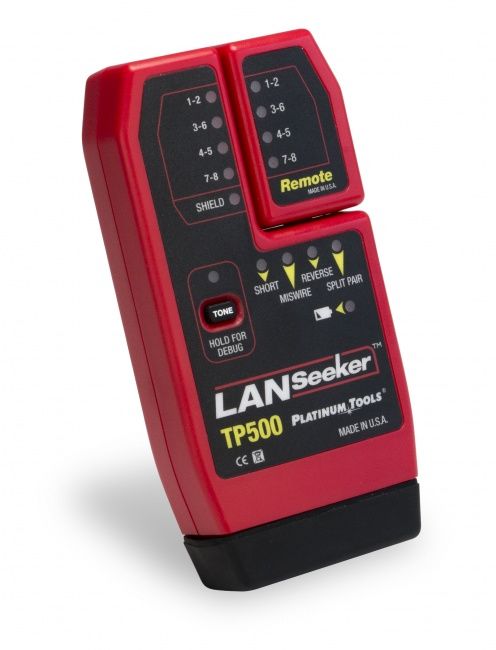

Platinum Tools LanSeeker Cable Tester

Product Overview

The LANSeeker™ is a fast, rugged cable tester and tone generator in one unit. It displays cable test results using LED indicators on the main and remote unit. An easy-to-use professional grade tool, the LANSeeker is a must have for residential and commercial cable installers. When the unit senses a connection between the main and remote unit, the battery-saving auto-on feature initiates test results within 2 seconds. The tester automatically powers off within 5 seconds of the cable being disconnected. LANSeeker tests for shorts, opens, miswires, reversals, and split pairs and can display connection and fault information on a pair-by-pair basis. It also generates audio tones for use with tone tracers on all pairs.



  • Displays cable test results on main and remote units in less than 2 seconds
  • Immediately detects shorts by just plugging in one end of a cable to the tester
  • Identifies shorts, opens, miswires, reversed and split pairs
  • No on/off switch, automatically starts test when a connection is sensed between main and remote unit
  • Debug mode diagnoses and displays faults one pair at a time
  • Includes tone generator
  • Self-stored remote
  • Made in the USA
