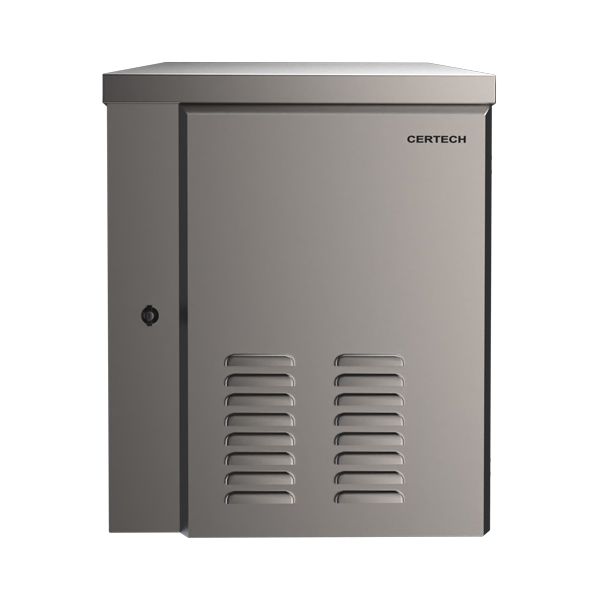

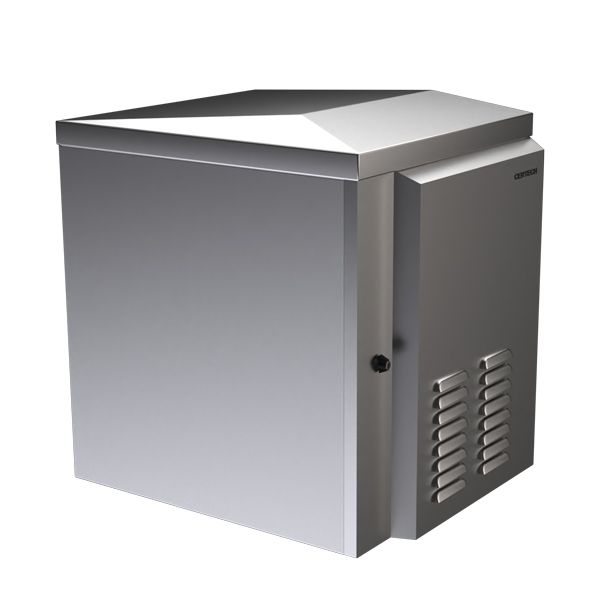

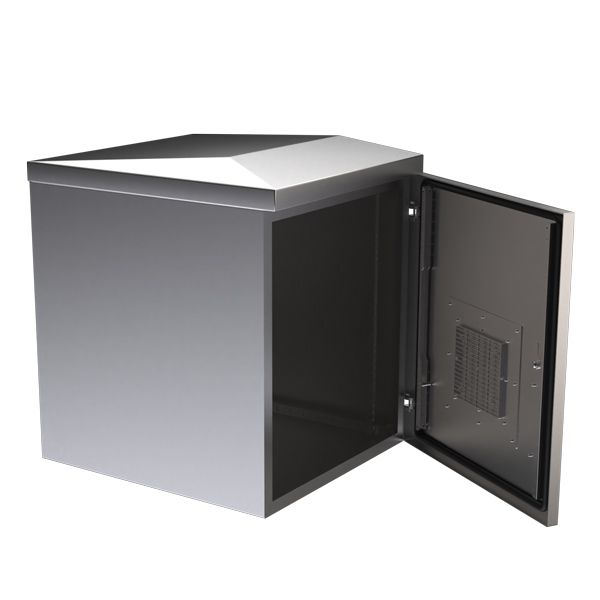

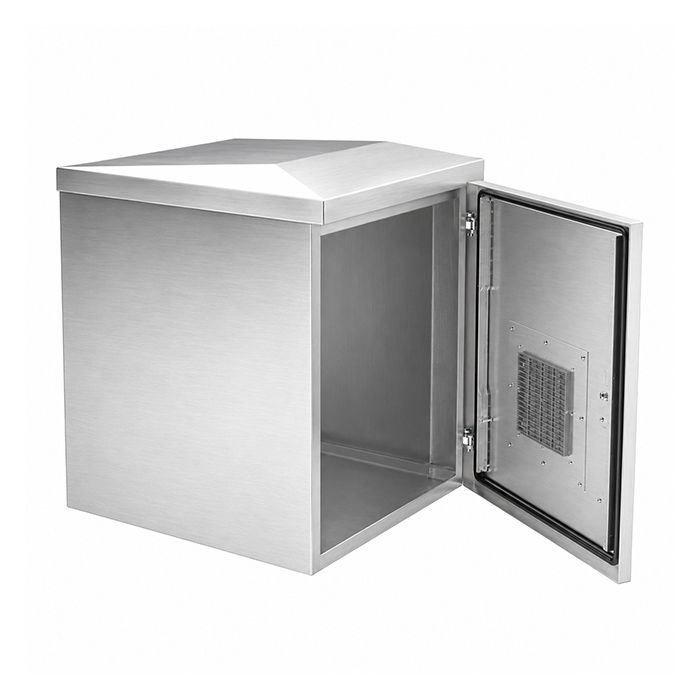

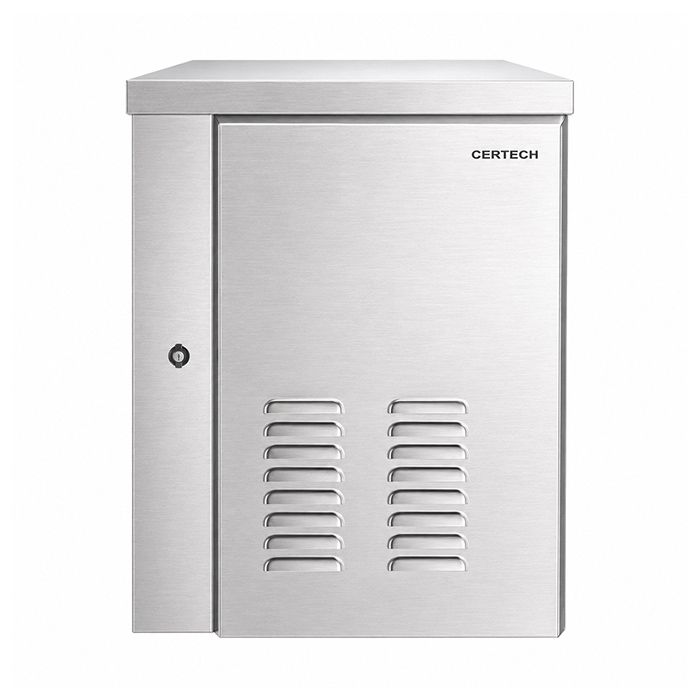

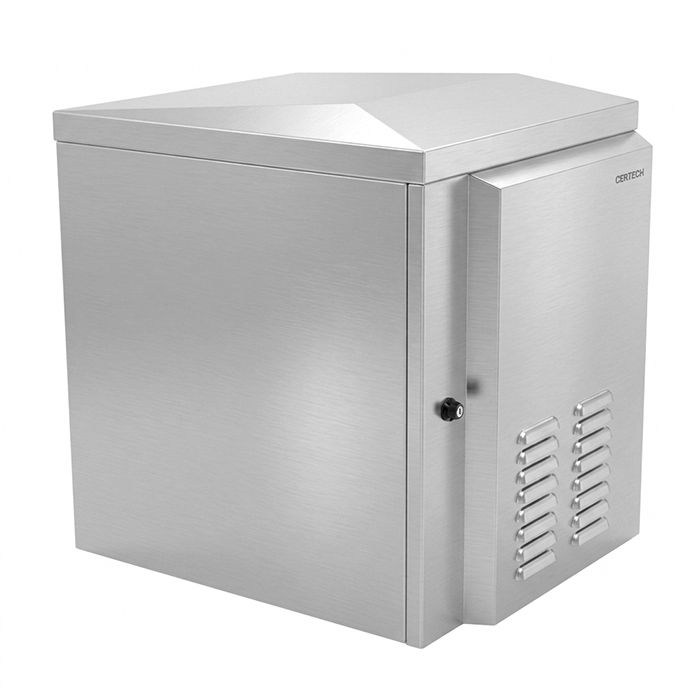

CERTECH 12RU 600mm Deep Stainless Steel Outdoor Wall Mount Cabinet, IP45 Rated

Stock Code:
NRODWS12600FK
Height:
685mm
Width:
611mm
Depth:
665mm
Static Loading Capacity:
60kgs
Make an Enquiry
THIS IS A MADE TO ORDER PRODUCT. CONTACT US FOR MORE INFORMATION
NRODWS12600FK
CERTECH 12RU 600mm Deep Stainless Steel Outdoor Wall Mount Cabinet, IP45 Rated

Product Details

  • Product Type:
    Outdoor - IP45 Rated Wall Mount
  • Static Loading Capacity:
    60kgs
  • Colour:
    Silver
  • Material:
    SUS316L Stainless Steel
  • Mounting Profile Thickness:
    2.0mm
  • Mounting Angle Thickness:
    1.5mm
  • Mounting Hole Type:
    Square
  • Door Style:
    Stainless Steel Door with Vents
  • Inclusions:
    2x Fans, Filter, Wall Mount Bracket, Bolts
  • Security:
    Lockable front door
  • Assembly:
    Fully Welded Construction
  • Warranty:
    Standard 2-years limited product warranty
  • Warranty (Fans):
    Standard 2-years limited product warranty
  • Product Width:
    611mm
  • Product Depth:
    665mm
  • Product Height:
    685mm

Product Overview

CERTECH IP45 Wall Mount Racks

CERTECH IP45 wall mount racks are robust and reliable enclosures designed to house and protect critical electronic equipment in demanding environments. Constructed from high-quality SGCC steel with a durable zinc powder coating, these racks offer superior corrosion resistance and long-lasting performance.



Key Features:

  • IP45 Protection: The IP45 rating ensures protection against dust and water jets, making these racks suitable for indoor and outdoor installations in various weather conditions.
  • Construction
    Fully welded design, made from cold rolled steel or SUS316 stainless steel.
  • Front Door
    Front door has 130 degrees of movement, swinging from left to right, fitted with a water & dust polyurethane door joint strip.
  • Fans (IP45 Rated Models)

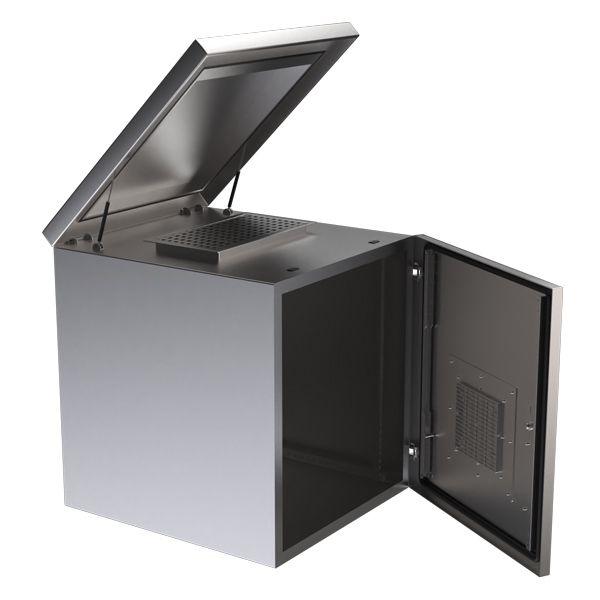

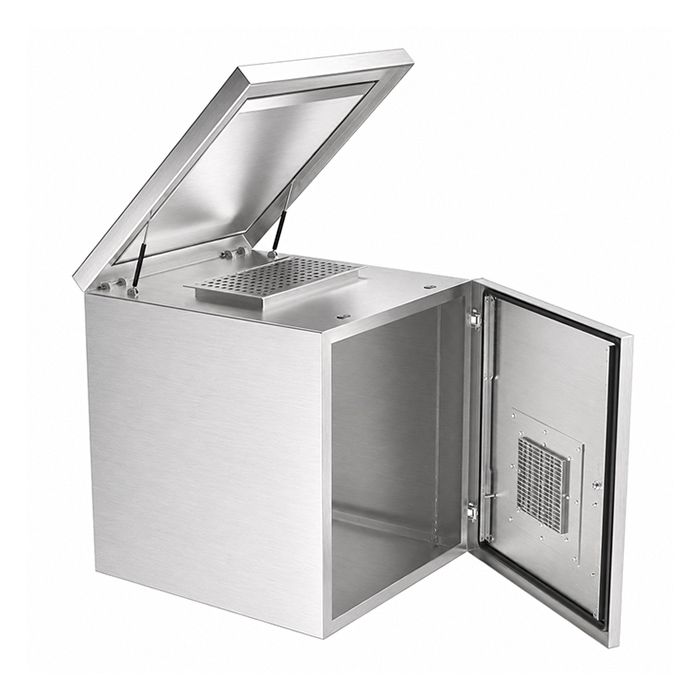

    Smartly designed, fans (with dust filters) are accessible by lifting the pivoting rain hood, allowing the fans to be serviced without having to remove any rack-mounted equipment. Comes with a thermostat for controlled air flow.
  • Ventilation & Dust Filters (IP45 Rated Models)
    The cabinet design allows natural wind cooling through filtered vents on the front door and venting under the lip of the rain hood, which has a 25mm vented lip and is angled at 75mm, allowing for water run-off. The filters are conveniently located on the front door, allowing for easy access & servicing, without having to remove any rack-mounted equipment.
  • Vertical Mounting Rails
    Vertical mounting rails can be adjusted back and forth to suit various sizes of equipment. Rack units are numbered front and back for easy equipment installation.
  • Cable Entry
    Cable entry plates and glands located on the base panel of racks, making for easy cable access.
  • Rack Mounting Compatibility
    All racks are compatible with all EIA-310 compliant 19″ equipment.
  • Versatile Design: Available in a range of sizes and configurations to accommodate various equipment needs, including servers, networking equipment, and telecommunications devices.
  • Easy Installation: Designed for quick and easy assembly, minimizing downtime and installation costs.

Applications:



  • Telecommunications: Housing base stations, switching equipment, and other telecommunications infrastructure.
  • Industrial Environments: Enclosing control panels, PLCs, and other industrial automation equipment.

Outdoor Installations: Suitable for use in various outdoor environments, such as roadside cabinets and remote monitoring stations.

Warranty:

  • Warranty is subject to use within static loading specifications and operation within normal environmental conditions.
