Stock Code:
NSRHD426X10

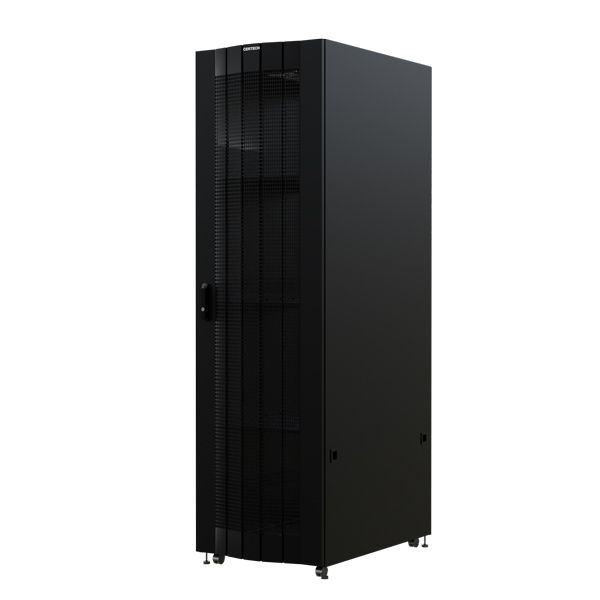

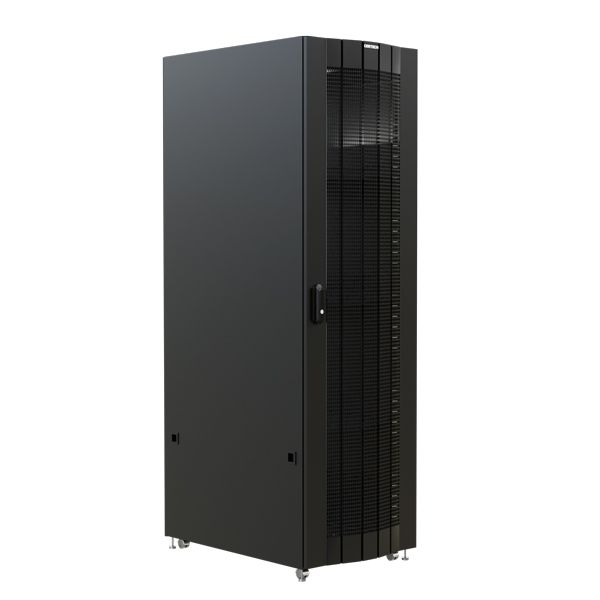

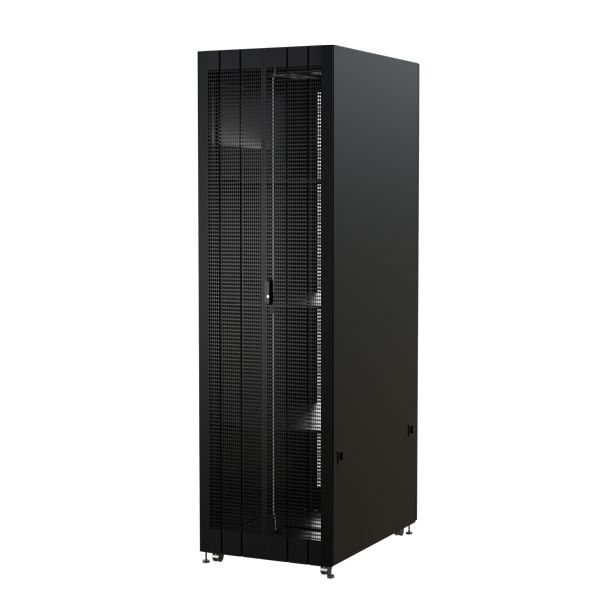

CERTECH 42RU 600 (W) x 1000 (D) Benchmark Series Server Rack

Rack Type:
NSR Benchmark Series
Height:
2100mm
Width:
600mm
Depth:
1000mm
Static Loading Capacity:
1500kgs
NSRHD426X10
CERTECH 42RU 600 (W) x 1000 (D) Benchmark Series Server Rack

Product Details

  • Rack Type:
    NSR Benchmark Series
  • Static Loading Capacity:
    1500kgs
  • Colour:
    Black (RAL 9005) powder coated paint
  • Material:
    SPCC quality cold rolled steel, gloss black colour, easy clean surface
  • Mounting Profile Thickness:
    2.0mm
  • Mounting Angle Thickness:
    1.5mm
  • Surface Finish:
    Degrease, acid pickling, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting
  • Mounting Hole Type:
    Square
  • Door Style:
    Single front & rear perforated steel, honeycomb style

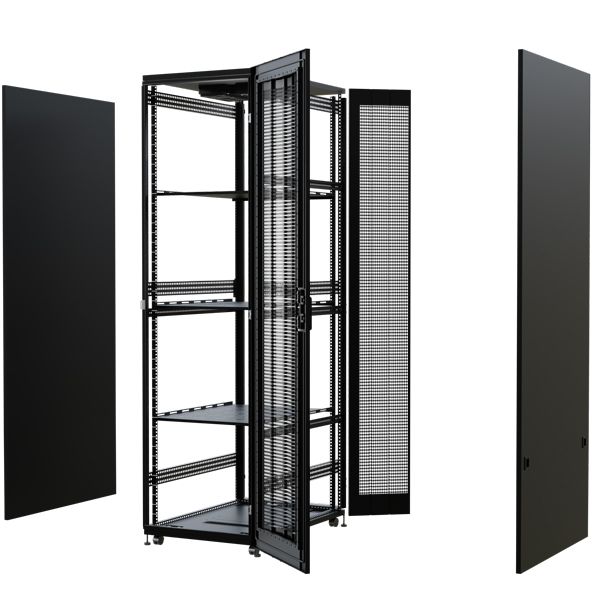

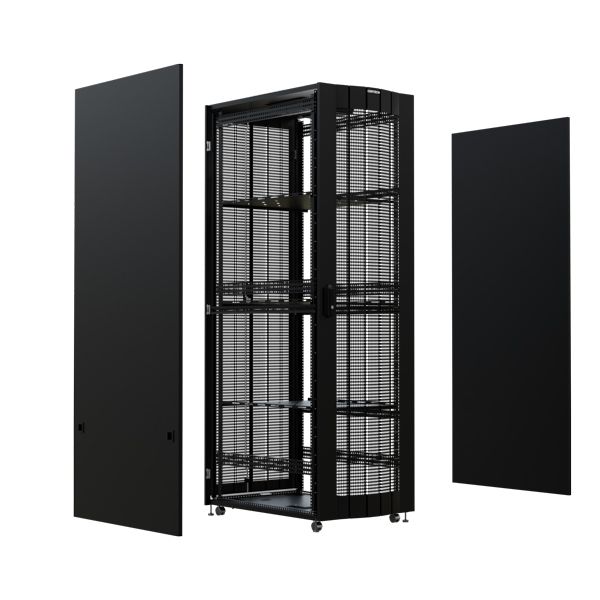

  • Side Panels:
    Single piece, removable
  • Inclusions:
    4 x fans, 3 x shelves, 25 x cage nuts, 1 x horizontal 6 outlet PDU, 4 x castor wheels & levelling feet
  • Security:
    Keyed alike doors & side panels
  • Assembly:
    Supplied complete. Double pipe profile frame connected by "3T" system
  • Warranty (Rack):
    2-year warranty. Subject to use within the static loading specifications and operation within normal environmental conditions
  • Warranty (Fans):
    1-year warranty
  • Compliance:
    IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491-1, DIN41494-7, GB/T3047.2-92

Product Overview

CERTECH Benchmark Series 600mm wide racks are the ideal rack for any type of installation, whilst also requiring the need for a heavy loading capacity, with these racks capable of holding 1500kgs of equipment. All racks are manufactured around universal 19” standards, providing the ability to use our racks with universal 19” equipment from vendors worldwide. All racks are constructed from high quality cold rolled steel & are shipped fully assembled for quick deployment. CERTEH racks are covered by a 2-year warranty, subject to use within the static loading specifications and operation within normal environmental conditions.

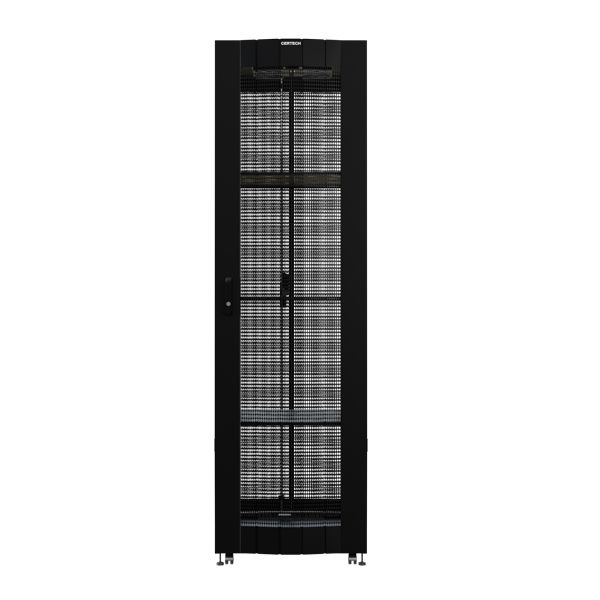

• Front Door
Perforated single mesh front door.

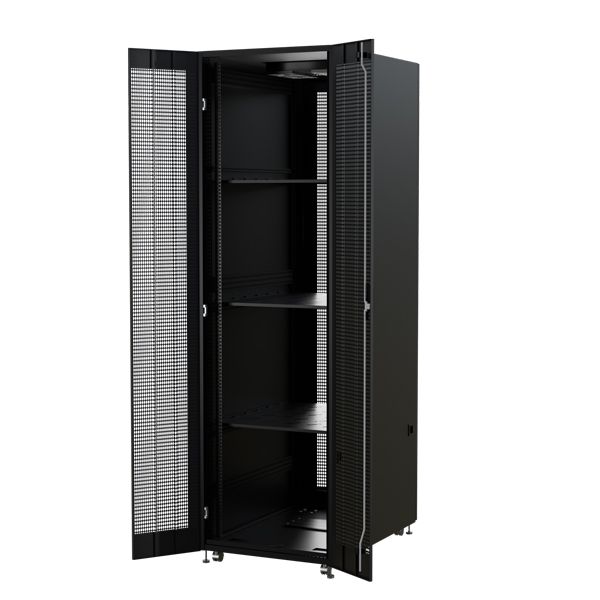

• Perforated Rear Split Doors
Perforated rear doors provide ventilation for servers and networking equipment. Both doors being split, reduces the need to have 800mm of space to open the door completely.

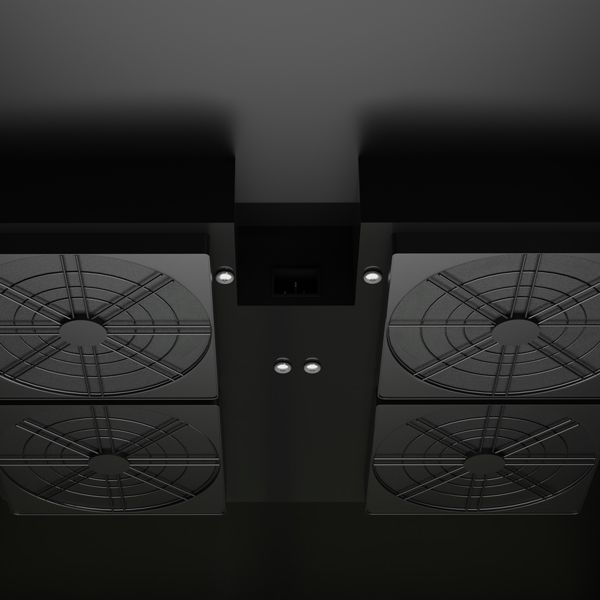

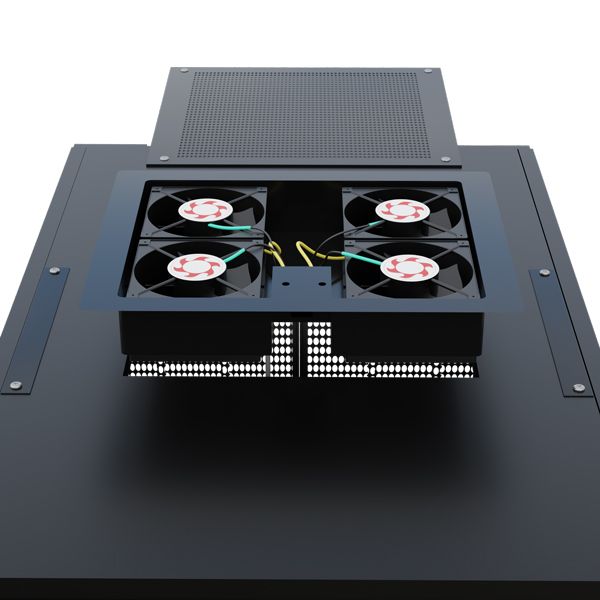

• Fans
Fitted to a drop-down tray, allowing for easy access and maintenance, without having to remove any equipment inside the rack.

• Cable Entry
Large cable access glands in the roof & base of the rack, provide access for overhead & underneath run cables.

• Rack Mounting Compatibility
All racks are compatible with all EIA-310 compliant 19″ equipment.

• Vertical Mounting Rails
Vertical mounting rails can be adjusted back and forth to suit various sizes of equipment. Rack units are numbered front and back for easy equipment installation.

• Adjoining Racks
Using our simple 4pc baying kit, racks are easily adjoined side by side.

• Integrated Earthing
Multiple earthing points & wires are fitted throughout the rack, on the roof, base, side panels & doors.
