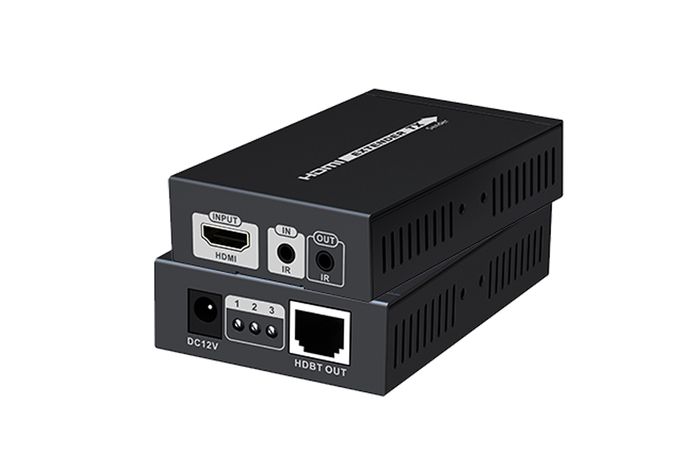

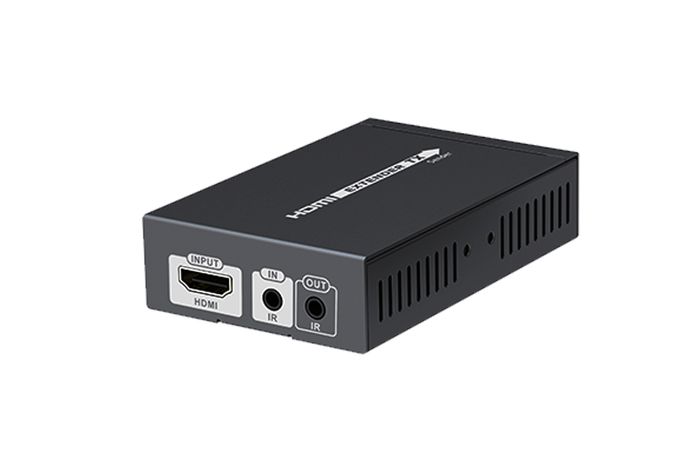

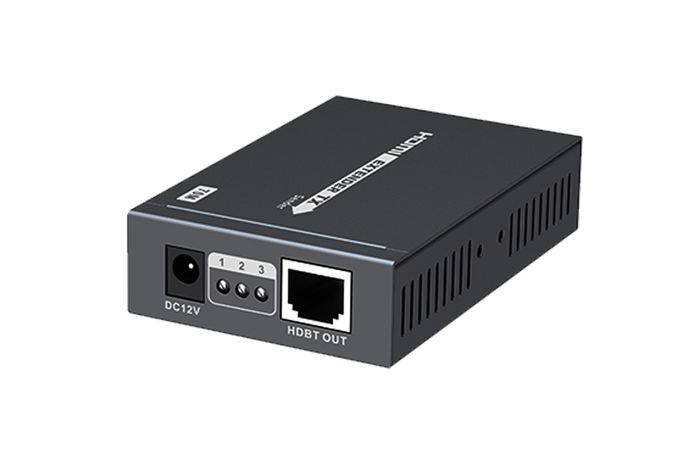

HDMI HDBaseT Extender over Cat6 to 70 Metres, 1080p
Product Details
-
Colour:Black
-
Material:Aluminium Housing
-
Warranty:Standard 1-year limited product warranty
-
Product Width:66.5mm
-
Product Depth:98.5mm
-
Product Height:23mm
Product Overview
CERTECH HDBaseT HDMI Extender over single Cat cable up to 70m.
Features
Incorporates HDbaseT extend technology
Transmit uncompressed HDMI signal over CAT6/6a cable
Supports full HD 1080p@60Hz, 3D, 4Kx2K@60Hz
Supports distance up to 70 metres with CAT6a/7
Supports bidirectional IR pass-back function
Supports HDCP ,CEC, 24 deep colour
Supports uncompressed LPCM audio and compressed DTS-HD, Dolby True HD
Specifications
HDMI Signal: 4Kx2K, compatible with HDCP, supports CEC & 24bits deep colour
Supported Resolutions: 480i/480P/576i/576P/720P/1080i/1080P/3D/4Kx2K
Audio: LPCM, DTS-HD, Dolby True HD
Network Cable: Cat6/6A
Transmission Length: Cat6: 70m; 1080p@60Hz 36bpp, 40m; 1080p@60Hz 48bpp, 1080p@60Hz 3D, 4Kx2K@30Hz, 4Kx2K@ 60Hz(4:2:0)
Infrared back: Supports 20~60kHz wide frequency devices and Bi-directional IR transmission
Power supply: DC12V/1A *2pcs
Power consumption: TX= <8W, RX= <8W
Product dimension: 98.5(L)x66.5(W)x23(H)mm *2pcs
Enclosure material: Metal
Weight: TX:79g RX:107g
Colour: Black
