Product Overview

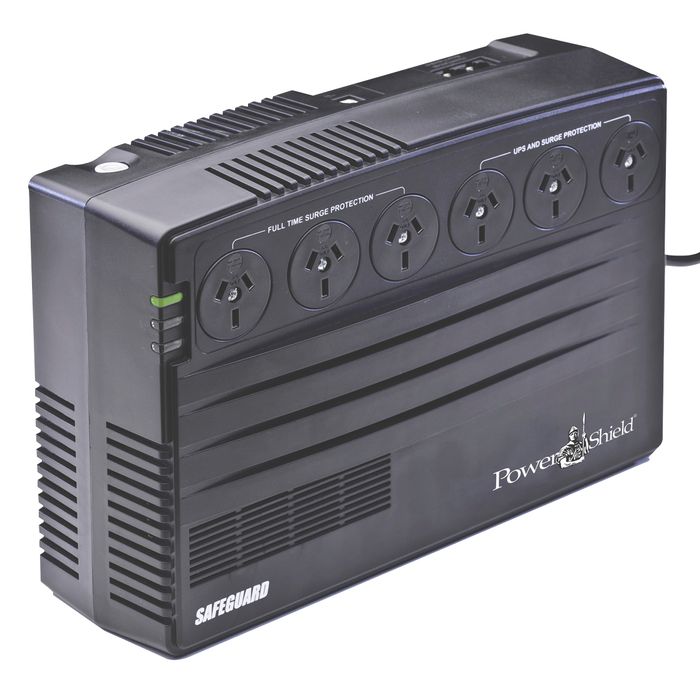

The Powershield SafeGuard 750VA Uninterruptible Power Supply (UPS) is designed for a home/office solution. It includes three battery backup and surge protected Australian sockets, three dedicated Australian outlets with surge protection and RJ45 phone line surge protection. Provides modified sinewave output and has an audible alarm when activated. Includes management software to suit most operating systems.
Features
Automatic Voltage Regulation (Buck and Boost)
Light-weight compact and elegantly designed
Intelligent microprocessor control
Monitoring and shutdown software included
Fax/modem/LAN surge suppression port
Overload protection and alarm
Output short circuit protection
Start on battery function (cold start)
USB communication
Easy user replacable battery
Australian/New Zealand approved sockets
Specifications
Topology: Line interactive
Input:
-Voltage: 240Vac
-Voltage range: 177Vac to 290Vac
-Frequency: 50Hz
Output:
- Nominal voltage: 240Vac
- Voltage regulation: +/-10%
- Battery transfer time: 6 msec ( typical )
- VA/Wattage: 750VA/450W
Battery:
- Type: Sealed lead acid maintenance free battery
- Capacity: 12V/9Ah
- Full load backup time: 2.5 min
- Data protection: Tel/modem/Lan, RJ45 connector.
- Software: PowerShield Powerview for Windows
- Interface: USB interface
- Audible noise: <40dBA
- Operational environment: Temperature 0-40?C, Humidity 0-90% Non condensing
Physical:
- Dimension: (DxWxH) 199x292x91mm
- Weight: 7kg
