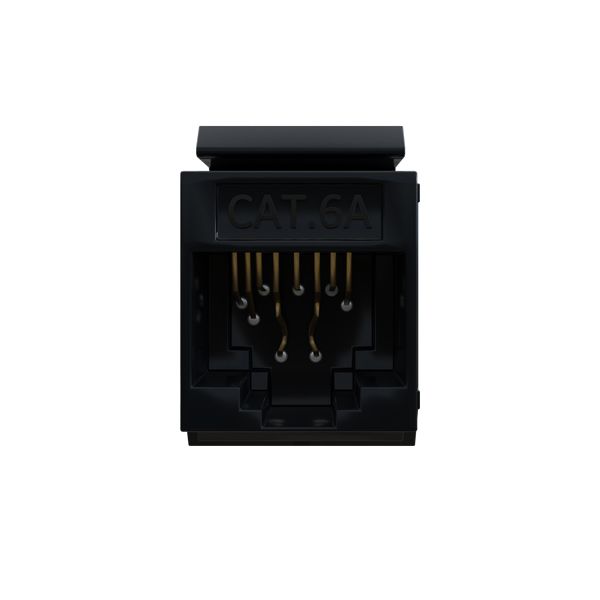

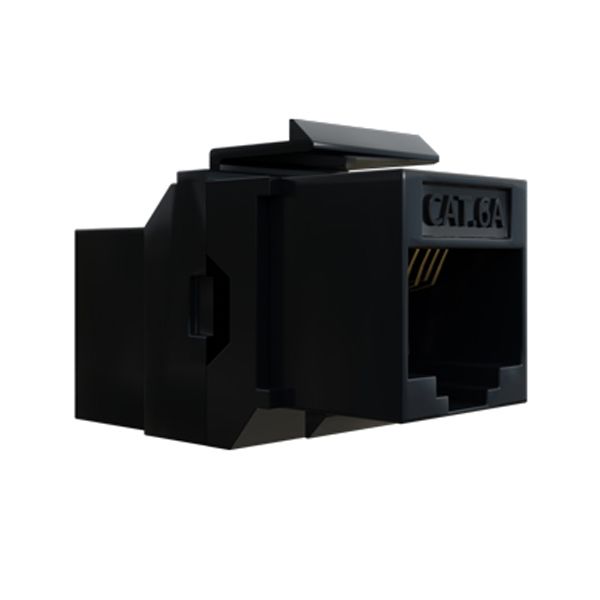

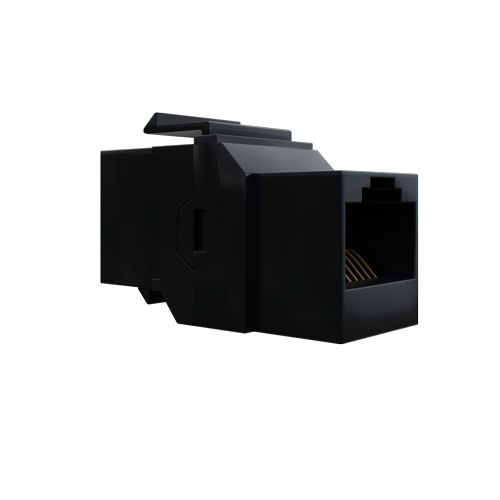

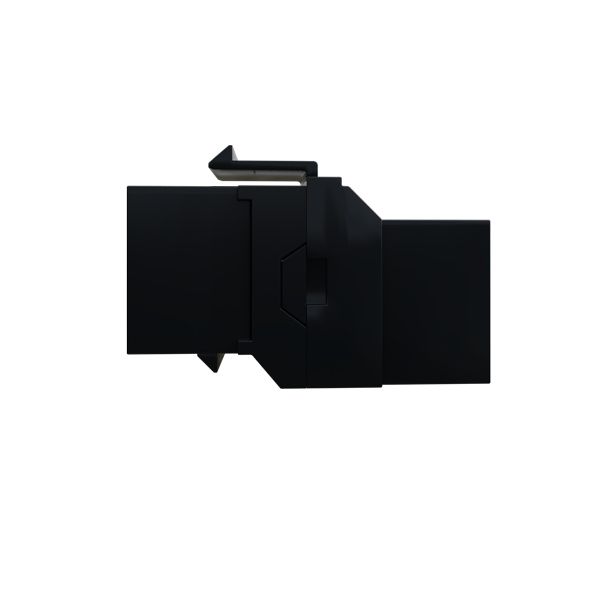

Cat6A RJ45 UTP Straight Through Keystone Joiner
Stock Code:
JKC6AST
JKC6AST
Cat6A RJ45 UTP Straight Through Keystone Joiner
Product Details
-
Product Type:Structured Cabling-Jacks & Couplers
-
Colour:Black
-
Material:ABS Plastic UL94V-0
-
Warranty:Standard 5-years limited product warranty against defects in material and workmanship. Eligible certifed warranty: CERTECH 25-year System Performance Warranty where all certification conditions are met and products form part of an end-to-end solution.
-
Product Width:16.5mm
-
Product Depth:35.2mm
-
Product Height:23.3mm
Product Overview
CERTECH Cat6A UTP RJ45 Straight Through Keystone Joiner
MATERIAL:
1.RJ45 Housing:PC
2.Phosphor Bronze with 50-60 micro-inch Nickel plated
3.Contact area:3-50 micro-inch Gold plated
4.IDC Housing:PC
5.IDC Terminal materal & finished:
5-1.Phosphor Bronze with 50 micro-inch Tin-Lead plated.Dver 50-60 micro-inch Nickel plated.
5-2.Use for 22-26 AWG stranded and solid wire
6.Jack Bracket Set:ABS Black color
7.PCB: FR4 UL 94V0
PERFORMANCE:
1.The IDC Color combine two wirings of T568A & T568B
2.Insertion Force:900 grms for 8 contacts
3.Retention Strength:7.7Kgs between Jack and Plug
4.Dperation Temperature:-40? to 70?
5.Durability:
5-1. Jack:750 cycles Plug-Jack mating and unmating test
5-2. IDC:Max 200 punching times
