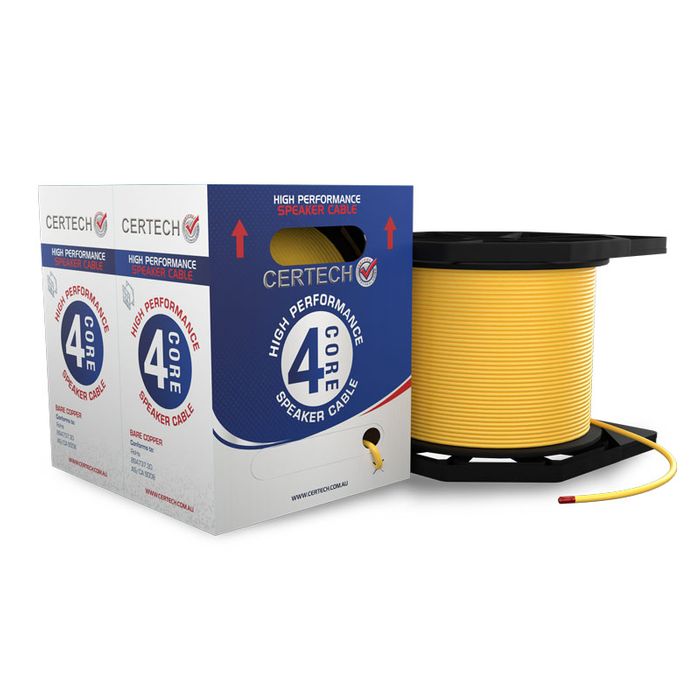

CERTECH High Performance Speaker Cable, 4 Core 16 AWG, LSZH Jacket, 305m
Stock Code:
SC164CLSZH305
Height:
340mm
Width:
290mm
Depth:
350mm
SC164CLSZH305
CERTECH High Performance Speaker Cable, 4 Core 16 AWG, LSZH Jacket, 305m
Product Details
-
Colour:Yellow
-
Material:Annealed Bare Copper, Oxygen, LSZH Jacket
-
Warranty:Standard 1-year limited product warranty
-
Product Width:290mm
-
Product Depth:350mm
-
Product Height:340mm
Product Overview
High Performance Speaker Cable, 4 Core 16 AWG, LSZH Jacket, 305m
| Conductor | |
| Material | Annealed Bare Copper, Oxygen Free Copper |
| Construction | 65x0.16±0.005mm |
| Nominal O.D | 1.49mm |
| Nomincal Cross Section Area | 1.31 mm2 |
| AWG | 16AWG |
| Max. DCR @ 20C | 14.3 ohm / km |
| Insulation | |
| Material | Coloured LSZH |
| Nominal O.D | 2.10mm±0.05mm |
| Nominal Wall Thickness | 0.30mm |
| Colour Code | Red, Black, Green & White, 4 Cores Stranded |
| Sheath | |
| Material | Yellow LSZH Jacket, RAL1021 |
| External O.D | 5.30±0.30mm |
| Nominal Wall Thickness | 0.55 ±0.05mm |
| Operating Temperature Range | -20°C to 75°C |
| Cable Weight | 76kg/km |
| Packaging | 305m Pull Box |
