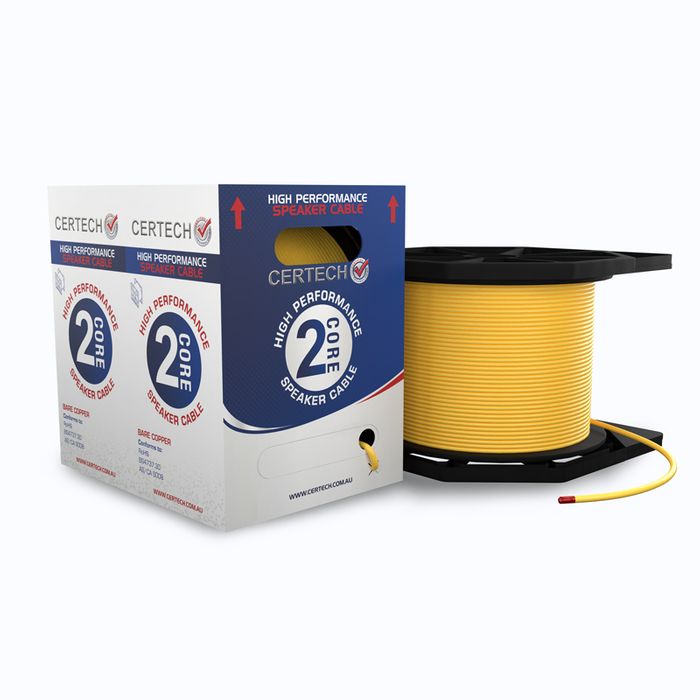

CERTECH High Performance Speaker Cable, 2 Core 16 AWG, LSZH Jacket, 305m

Stock Code:
SC162CLSZH305
Height:
330mm
Width:
240mm
Depth:
330mm
Make an Enquiry
SC162CLSZH305
CERTECH High Performance Speaker Cable, 2 Core 16 AWG, LSZH Jacket, 305m

Product Overview

High Performance Speaker Cable, 2 Core 16 AWG, LSZH Jacket, 305m

Conductor
MaterialAnnealed Bare Copper, Oxygen Free Copper
Construction65x0.16±0.005mm
Nominal O.D1.49mm
Nomincal Cross Section Area1.31 mm2
AWG16AWG
Max. DCR @ 20C14.3 ohm / km
Insulation
MaterialColoured LSZH
Nominal O.D2.10mm±0.05mm
Nominal Wall Thickness0.30mm
Colour CodeRed & Black, 2 Cores twisted
Sheath
MaterialYellow LSZH Jacket, RAL1021
External O.D5.30±0.30mm
Nominal Wall Thickness0.55 ±0.05mm
Operating Temperature Range-20°C to 75°C
Cable Weight41kg/km
Packaging305m Pull Box
