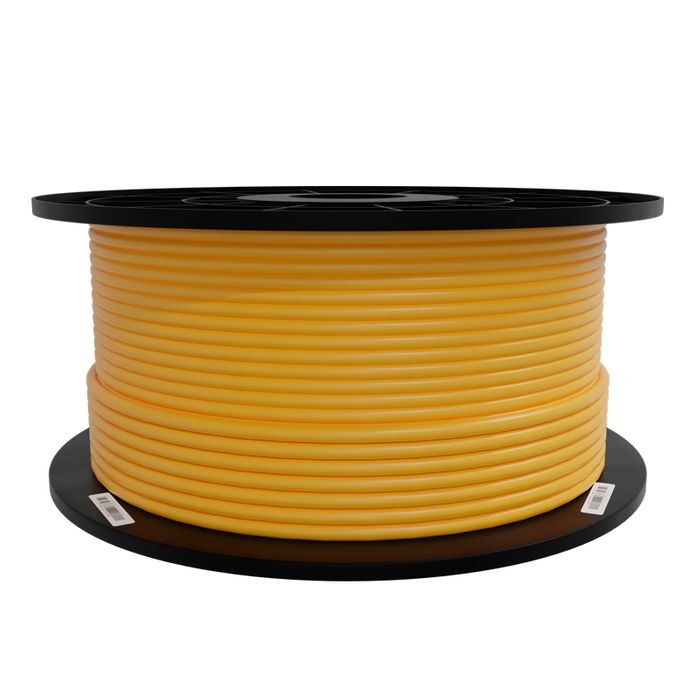

CERTECH High Performance Speaker Cable, 2 Core 16 AWG, LSZH Jacket, 152m
Stock Code:
SC162CLSZH152
Height:
130mm
Width:
270mm
Depth:
270mm
SC162CLSZH152
CERTECH High Performance Speaker Cable, 2 Core 16 AWG, LSZH Jacket, 152m
Product Details
-
Colour:Yellow
-
Material:Annealed Bare Copper, Oxygen, LSZH Jacket
-
Warranty:Standard 1-year limited product warranty
-
Product Width:270mm
-
Product Depth:270mm
-
Product Height:130mm
Product Overview
High Performance Speaker Cable, 2 Core 16 AWG, LSZH Jacket, 152m
| Conductor | |
| Material | Annealed Bare Copper, Oxygen Free Copper |
| Construction | 65x0.16±0.005mm |
| Nominal O.D | 1.49mm |
| Nomincal Cross Section Area | 1.31 mm2 |
| AWG | 16AWG |
| Max. DCR @ 20C | 14.3 ohm / km |
| Insulation | |
| Material | Coloured LSZH |
| Nominal O.D | 2.10mm±0.05mm |
| Nominal Wall Thickness | 0.30mm |
| Colour Code | Red & Black, 2 Cores twisted |
| Sheath | |
| Material | Yellow LSZH Jacket, RAL1021 |
| External O.D | 5.30±0.30mm |
| Nominal Wall Thickness | 0.55 ±0.05mm |
| Operating Temperature Range | -20°C to 75°C |
| Cable Weight | 41kg/km |
| Packaging | 152m Reel |
