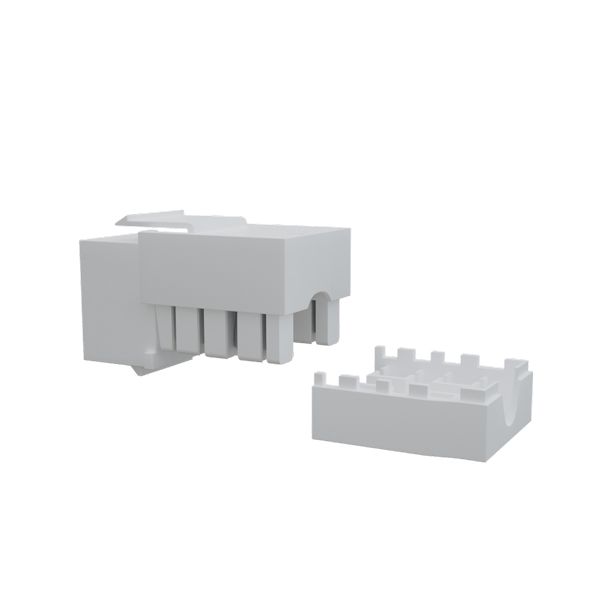

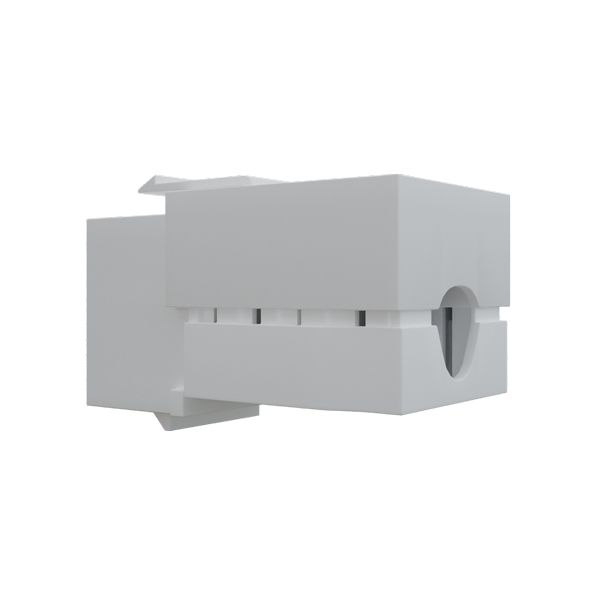

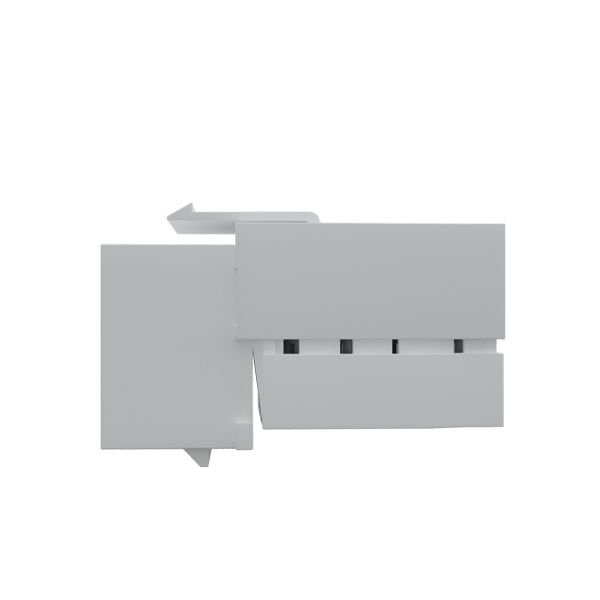

Cat6 RJ-45 UTP Keystone Jack. White, 90 degrees

Stock Code:
JKC690WH
JKC690WH
Cat6 RJ-45 UTP Keystone Jack. White, 90 degrees

Product Details

  • Colour:
    White

Product Overview

CERTECH Cat6 RJ-45 Keystone Jack.
90 Degree Termination
Colour: White
Recommended for use with RJ45 plugs only

FEATURES:

Dual IDC connector can accept 23-26 AWG solid and stranded cables

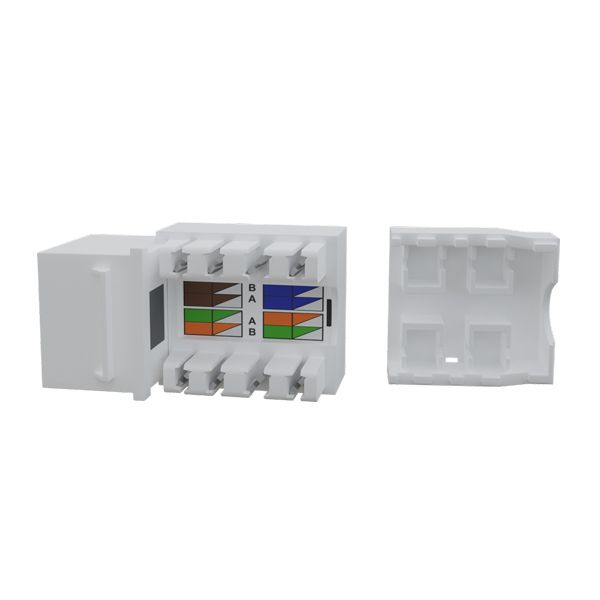

Supports both T568 A&B wiring
Performance conforms to ANSI/TIA-568-C.2, ISO/IEC 11801 and EN50173-1 Category 6 specification
RoHS compliant

APPLICATIONS:

10Base-T/100Base-Tx
100Base-T4/1000Base-Tx
ATM-25/ATM-51/ATM-155
100VG-AnyLan
TR-4/TR-16 Active/TR16 Passive

ELECTRICAL SPECS:

Dielectric Strength : 1000V RMS for 1min
Insulation Resistance : 10 M? min
Contact Resistance : 2 m? per contact
Temperature Range : ?10? to 60? max
Humidity : 10%-65%

PHYSICAL SPECS:

High impact plastic housing, Flame retardant UL 94V-0
IDC Contact : 100? inch nickel plated over phosphor bronze
IDC Operating life : Minimum 250 Re-terminations
Jack Contact : Phosphor bronze, 50? inch gold plating over nickel plating in contact area
Jack Operating life : Minimum 750 insertions
PCB : FR-4, 1.6mm thickness
