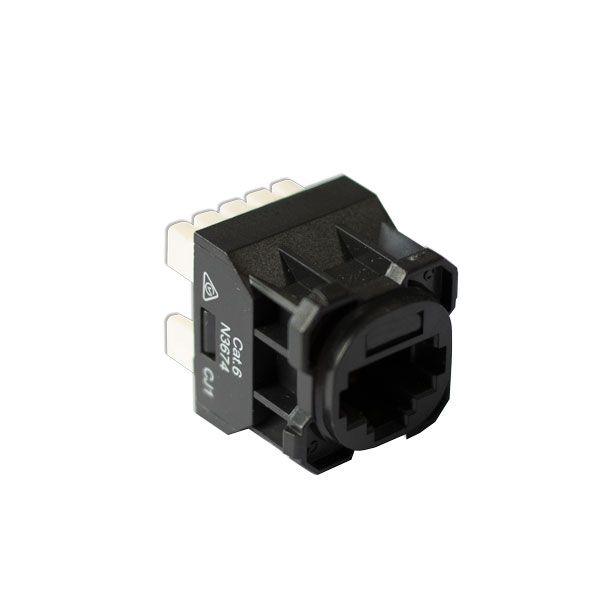

Cat6 RJ-45 UTP Wall Plate Jack. Black
Product Details
-
Colour:Black
-
Material:ABS Plastic UL94V-0
-
Warranty:Standard 5-years limited product warranty
-
Product Width:20mm
-
Product Depth:29mm
-
Product Height:25mm
Product Overview
High Performance Cat6 UTP Jack, Australian style.
Black Colour
Performance:
Meets Cat6 EIA/TIA 568B.1 Standards
Materials:
Plastic Body: Fireproof ABS UL-94V0
RJ-45 Jack: 8P8C micro inches gold plated
PCB: FR-4 / 1.0mm UL94V0
IDC Body: Fireproof ABS UL-94V0
IDC Pin: Bronze & Tinned
Label Colour Code: T568A
IDC Description:
For 22-26 AWG
For 110 or Krone punch down tool
Electrical Specifications:
Insulation Resistance: 500m ohms (min)
Contact Resistance: 20m ohms (max)
Current Rating: 1.5 Amps
DC Resistance: 0.1 ohm (max)
Withstanding Voltage: 1000 VAC RMS @ 60Hz / 1 min
Mechanical Specifications:
IDC Punch Down Cycle: Over 250 Cycles (min)
RJ-45 Jack Insertion Cycle: Over 2000 Cycles (min)
Operating Temperature: -40° to 70° Degrees Celcius
Eligible certified warranty: CERTECH 25-year System Performance Warranty where all certification conditions are met and products for part of an end-to-end solution
