CERTECH 37-70" Tilt Wall Mount Bracket

Stock Code:
LCDT3770
LCDT3770
CERTECH 37-70" Tilt Wall Mount Bracket

Product Overview

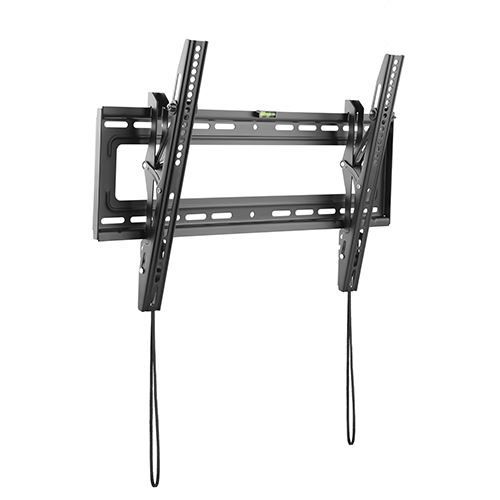

CERTECH 37-70" Tilt Wall Mount Bracket

Capable of supporting weights of 50kgs, the LCDT3770 is designed to fit any 37"-70" curved & flat panel TVs. Its solid heavy-gauge steel construction offers a sleek, high-tech look while providing strength and durability. An automatic click-in spring lock with easy-release cord allows for easy & secure mounting of the TV to the wall.



Features

  • Automatic click-in spring lock helps TV brackets snap into place for added safety
  • Easy-grip knobs for quick tilt and lock
  • Built-in bubble level
  • Lateral shift brackets enable fast alignment



Specifications

Product Category: Tilt Wall Mount

Material: Steel

Surface Thickness: Powder Coated, Electroplating

Colour: Matte Black

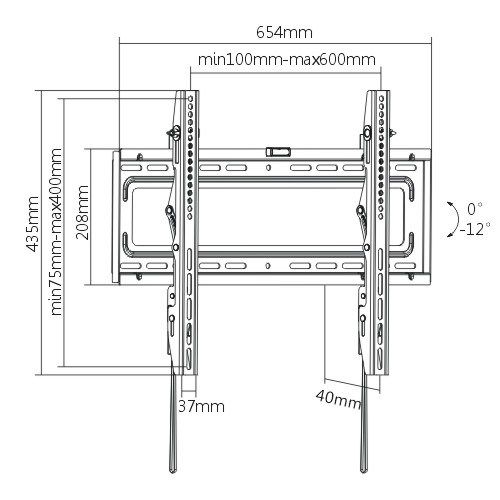

Overall Dimensions (mm): 654 (W) x 435 (H) x 40 (D)

Plate Dimensions (mm): 654 (W) x 208 (H)

Fits Screen Size: 37" - 70"

Fits Curves TV's: Yes

Mounting Hole Pattern: VESA & Universal

VESA Compatibility: 200x200, 400x200, 300x300, 400x400, 600x400

Max. Mounting Hole: 600x400

Weight Capacity: 50kgs

Strength Tested: 4 Times Approved

Profile: 40mm

Tilt Range: 0~-12 Degrees

Installation: Solid Wall, Double Stud (406/450/600mm)

Panel Type: Detachable Panel

Wall Plate Type: Fixed Wall Plate

Cable Management: No

Anti-theft: No

Bubble Level: Hook-on Bubble Level
